VB409SP 数据表(PDF) 4 Page - STMicroelectronics

部件名 VB409SP
功能描述  HIGH VOLTAGE REGULATOR POWER I.C.
PDF  9 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
制造商  STMICROELECTRONICS [STMicroelectronics]
网页  http://www.st.com
标志 STMICROELECTRONICS - STMicroelectronics

VB409SP 数据表(HTML) 4 Page - STMicroelectronics

  VB409SP Datasheet HTML 1Page - STMicroelectronics VB409SP Datasheet HTML 2Page - STMicroelectronics VB409SP Datasheet HTML 3Page - STMicroelectronics VB409SP Datasheet HTML 4Page - STMicroelectronics VB409SP Datasheet HTML 5Page - STMicroelectronics VB409SP Datasheet HTML 6Page - STMicroelectronics VB409SP Datasheet HTML 7Page - STMicroelectronics VB409SP Datasheet HTML 8Page - STMicroelectronics VB409SP Datasheet HTML 9Page - STMicroelectronics
Zoom Inzoom in Zoom Outzoom out

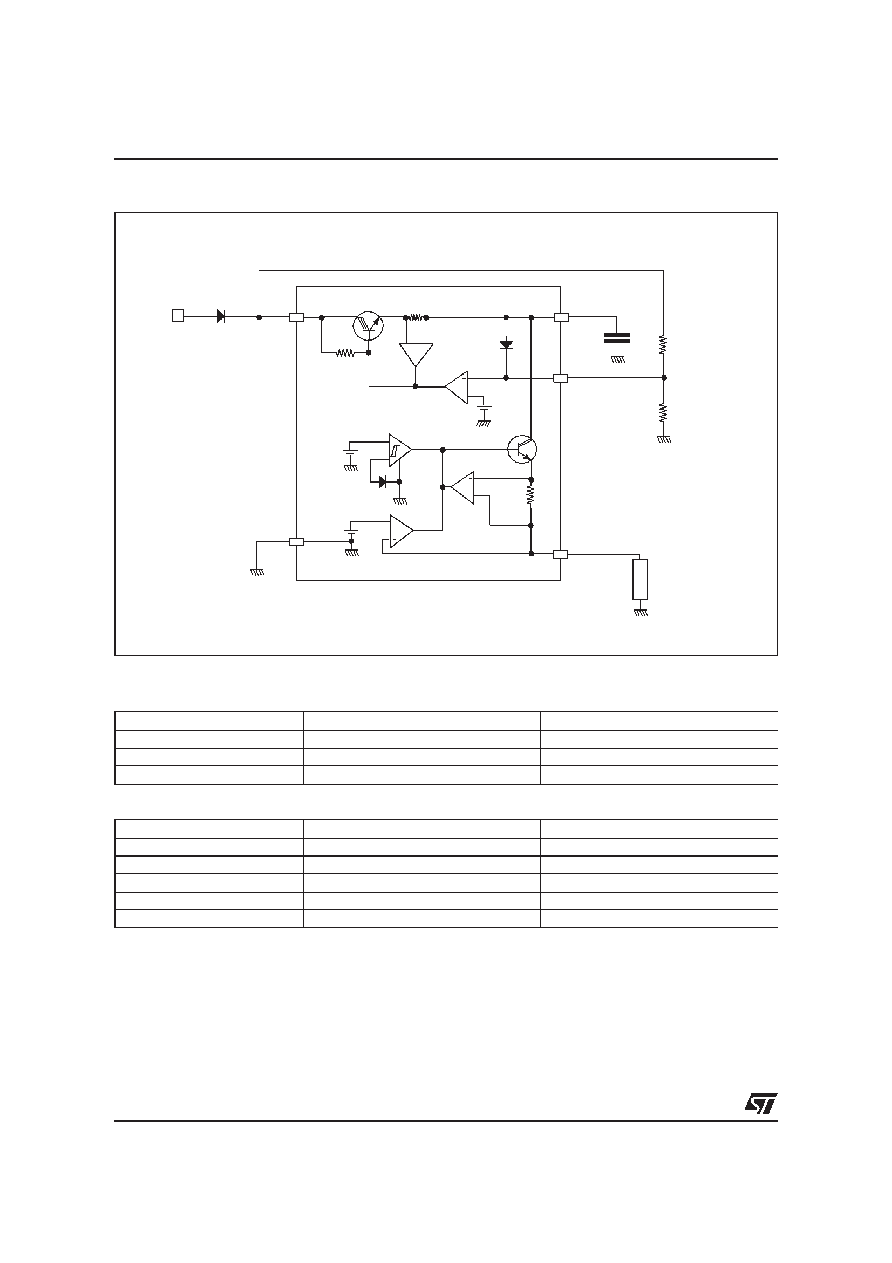

 4 / 9 page
background image
4/9
VB409 / VB409SP
Input current
li miter
Vref1
Vref2
Thermal
protection
Output current
limiter
Vref3
Threshold
Cap
GND
INPUT
MAIN
+
OUTPUT
RLOAD
R1
R2
C1
VB049a1
Figure 1:
Application scheme
1
APPLICATION EXAMPLE
(without heatsink; R1=1M
Ω; C1=47µF)
(without heatsink; R1=1M
Ω; C1=100µF)
IOUT
R2
PAV
10 mA
560 K
Ω
0.32 W
15 mA
470 K
Ω
0.49 W
20 mA
390 K
Ω
0.67 W
IOUT
R2
PAV
20mA
390 K
Ω
0.70 W
25mA
330 K
Ω
0.92 W
30mA
270 K
Ω
1.20 W
35mA
220 K
Ω
1.53 W
40mA
180 K
Ω
1.92 W
