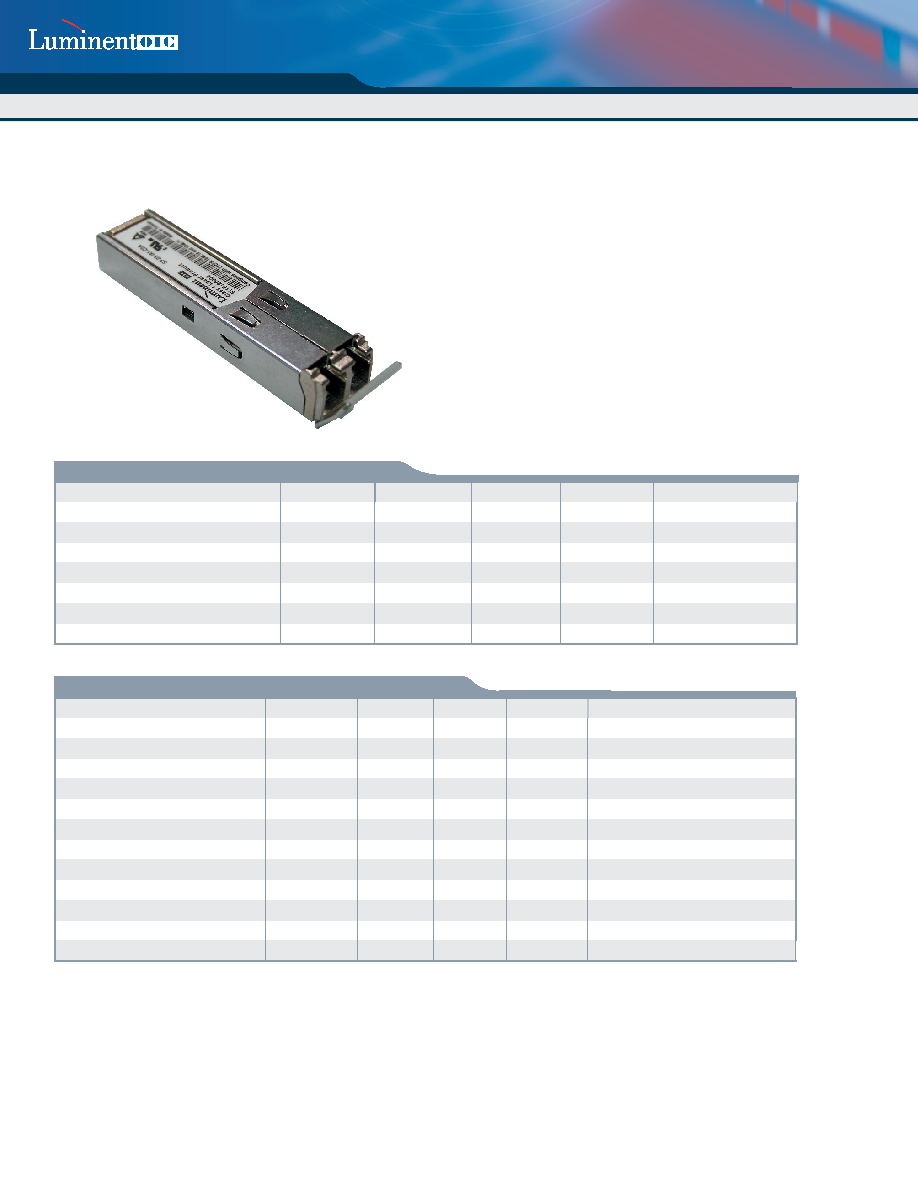

Multi-Rate SFP Transceiver(LR2)

SP-MR-LR2

20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486

9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213

LUMINENTOIC.COM

LUMNDS1530-FEB2406

rev. A.0

Parameter

Symbol

Min

Typical

Max

Unit

Optical Power

Pop

-2

0.5

3

dBm

Average Launch Power Of Off Tx

Poff

-

-30

dBm

Extinction Ratio

ER

8.2

-

dB

Eye Mask

-

IEEE 802.3Z, SONET/SDH compliant

Optical Jitter Generation

Jgen

-

0.007

UI

Optical Rise Timeb

tr

-

160

ps

Optical Fall Timeb

tf

-

160

ps

Mean Wavelength

λ

1500

1550

1580

nm

Spectral Width (20dB)

∆λ

-

1

nm

Dispersion Penalty (80 Km SMF)c

dp

-

1

2

dB

Relative Intensity Noise

RIN

-

-120

dB/Hz

Reﬂection Toleranced

rp

-24

-

dB

Transmitter Speciﬁcations (Optical)

Features

• Single 3.3 V supply

• 80 km reach

• 26dB min, 30.5 dB typical link budget

• Commercial and Reduced Industrial temperature available

• 1550nm DFB laser

• APD Receiver

• SFP MSA SFF-8074i compliant

• GR 253/STM G.957 compliant

• Digital Diagnostic SFF-8472 Rev. 9.3 compliant

• Telcordia GR-468 compliant

• White color coated bail latch

• RoHS 5/6 compliant (Lead Exemption)

Parameter

Symbol

Min.

Typical

Max.

Unit

Supply Voltage

Vcc

3.135

3.3

3.465

V

Total Current

Icc

-

300

mA

Power Supply Noise Rejectiona

PSR

100

-

mVp-p

Operating Temperature(-Cxx)

Top

-5

-

70

ºC

Operating Temperature(-Rxx)

Top

-20

-

85

ºC

Storage Temperature

Tst

-40

-

85

ºC

Data Rate

DR

100

-

2700

Mbps

General Operating

b) 20%-80% values

c) Measured at BER of 1e-10, PRBS of 223-1, at eye center

d) 1 dB degradation of receiver sensitivity

a) 20Hz to 155MHz
