Multi-Rate SFP Transceiver(LR2)

SP-MR-LR2

20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486

9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213

LUMINENTOIC.COM

LUMNDS1530-FEB2406

rev. A.0

Function

Notes

VeeT

TX GND

TX_FAULT

Open Collector

TX_DISABLE

Internally Pulled High

MOD_DEF2

Serial Data Input

MOD_DEF1

Serial Clock Input

MOD_DEF0

Internally Grounded

Not Connected

LOS

Open Collector

VeeR

RX Ground

VeeR

RX Ground

VeeR

RX Ground

RXD-

RX Data Negative

RXD+

RX Data Positive

VeeR

RX GND

VccR

RX Power

VccT

TX Power

VeeT

TX GND

TXD+

TX Data Positive

TXD-

TX Data Negative

VeeT

TX GND

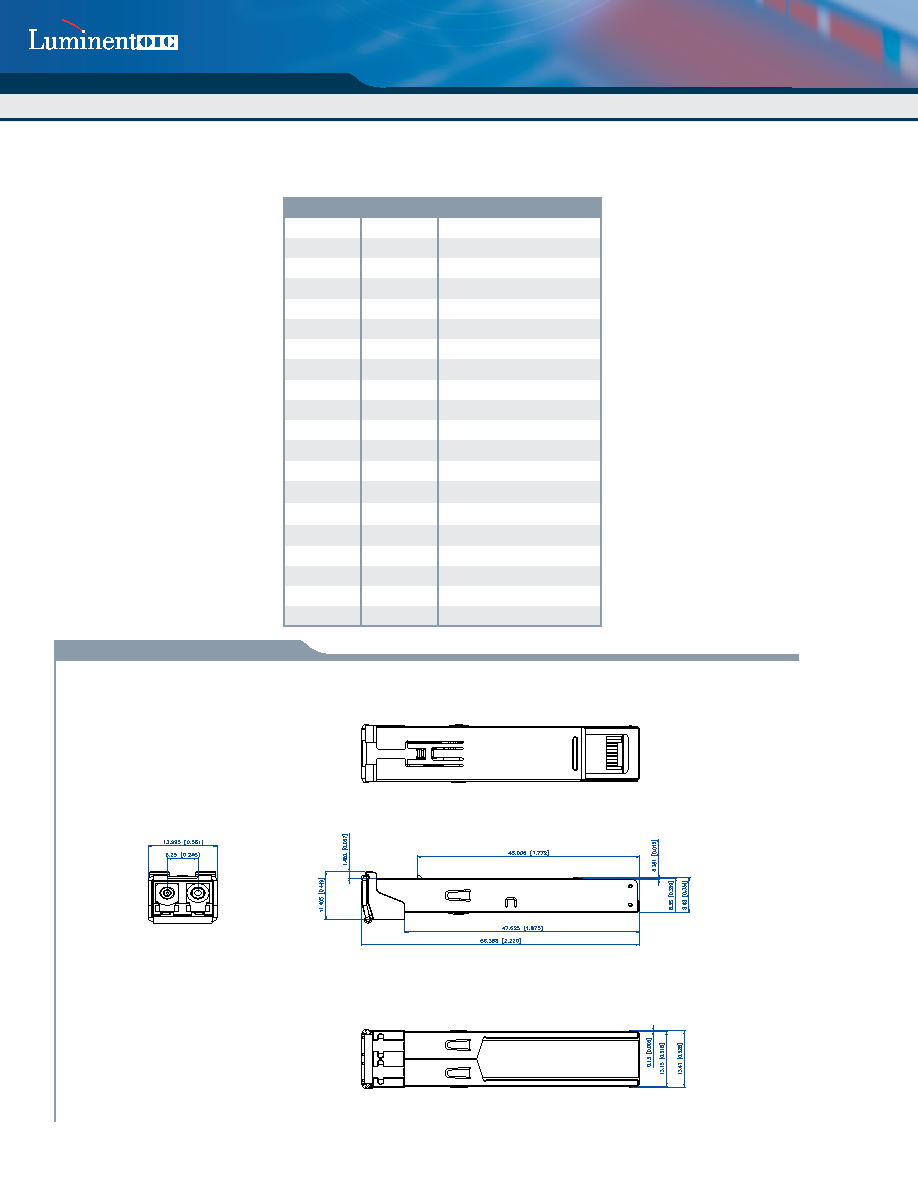

Outline Drawing

Units in mm(inch)
