MT5C1001EC-25L/XT 数据表(PDF) 2 Page - Austin Semiconductor

部件名 MT5C1001EC-25L/XT
功能描述  1M x 1 SRAM SRAM MEMORY ARRAY
PDF  13 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
制造商  AUSTIN [Austin Semiconductor]
网页  http://www.austinsemiconductor.com
标志 AUSTIN - Austin Semiconductor

MT5C1001EC-25L/XT 数据表(HTML) 2 Page - Austin Semiconductor

  MT5C1001EC-25L/XT Datasheet HTML 1Page - Austin Semiconductor MT5C1001EC-25L/XT Datasheet HTML 2Page - Austin Semiconductor MT5C1001EC-25L/XT Datasheet HTML 3Page - Austin Semiconductor MT5C1001EC-25L/XT Datasheet HTML 4Page - Austin Semiconductor MT5C1001EC-25L/XT Datasheet HTML 5Page - Austin Semiconductor MT5C1001EC-25L/XT Datasheet HTML 6Page - Austin Semiconductor MT5C1001EC-25L/XT Datasheet HTML 7Page - Austin Semiconductor MT5C1001EC-25L/XT Datasheet HTML 8Page - Austin Semiconductor MT5C1001EC-25L/XT Datasheet HTML 9Page - Austin Semiconductor Next Button
Zoom Inzoom in Zoom Outzoom out

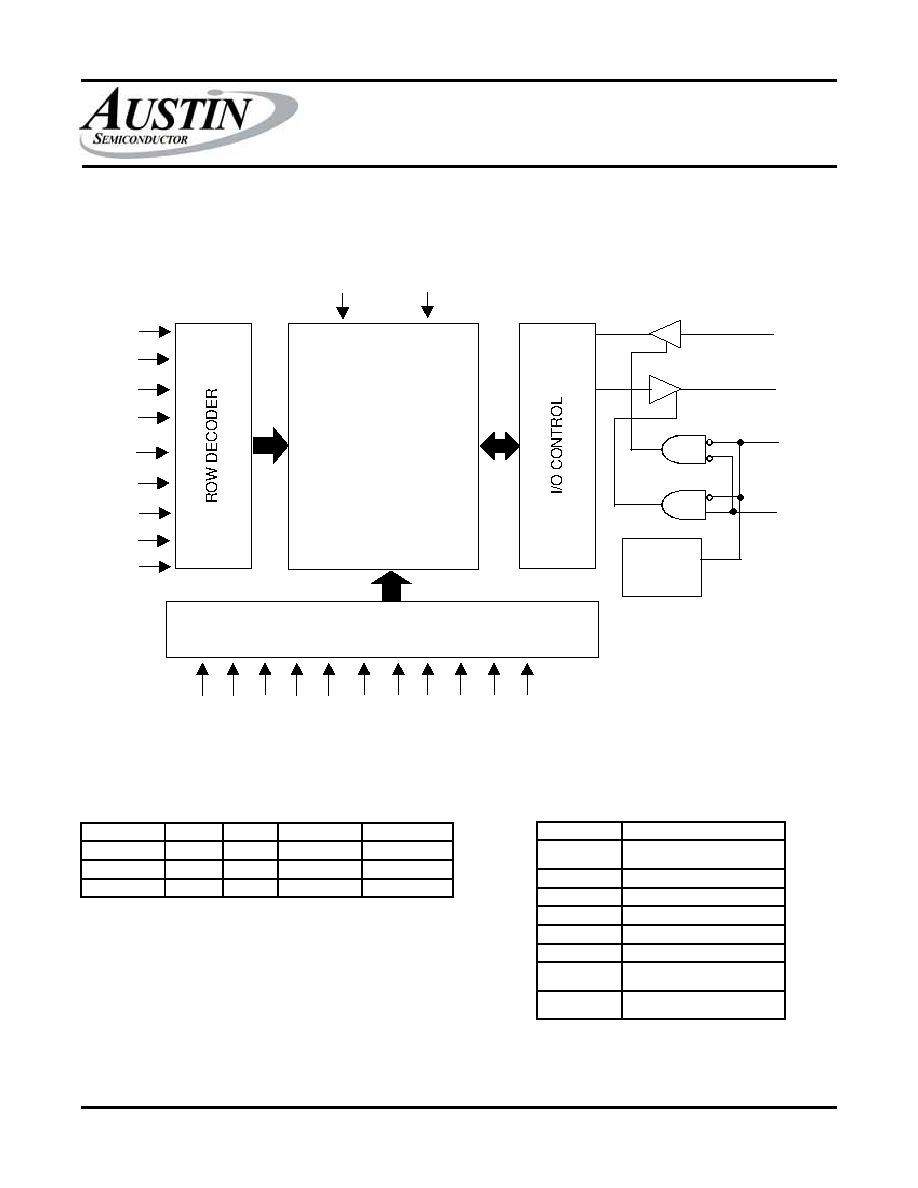

 2 / 13 page
background image
SRAM
SRAM
SRAM
SRAM
SRAM
MT5C1001
Limited Availability
MT5C1001
Rev. 2.1 06/05
Austin Semiconductor, Inc. reserves the right to change products or specifications without notice.
2
Austin Semiconductor, Inc.
FUNCTIONAL BLOCK DIAGRAM
TRUTH TABLE
1,048,576-BIT
MEMORY ARRAY
512 rows x 2048
columns
VCC
Vss
D
Q
CE\
WE\
A6
A5
A4
A3
A15
A14
A13
A8
A7
COLUMN DECODER
A2 A1 A16 A0 A17 A18 A19 A10 A9 A12 A11
POWER
DOWN
MODE
CE\
WE\
OUTPUT
POWER
STANDBY
H
X
HIGH-Z
STANDBY
READ
L
H
Q
ACTIVE
WRITE
L
L
HIGH-Z
ACTIVE
PIN ASSIGNMENTS
PIN
ASSIGNMENT
A0-A19
Address Inputs
WE\
Write Enable
CE\
Chip Enable
D
Data Input
Q
Data Output
NC
No Connection
VCC
+5V Power Supply
VSS
Ground
