AD8264
Rev. 0 | Page 26 of 40
PrA
6dB
+
–
6dB
+
–
IPPx
IPNx
GNHx
VOLx
VOHx
OFSx
VOCM
VGAx
AD8264
GNLO
50Ω
CH1
CL
50Ω
50Ω
OUT
PULSE
GENERATOR
500Ω
OSCILLOSCOPE
DIFFERENTIAL
PROBE
CL
500Ω

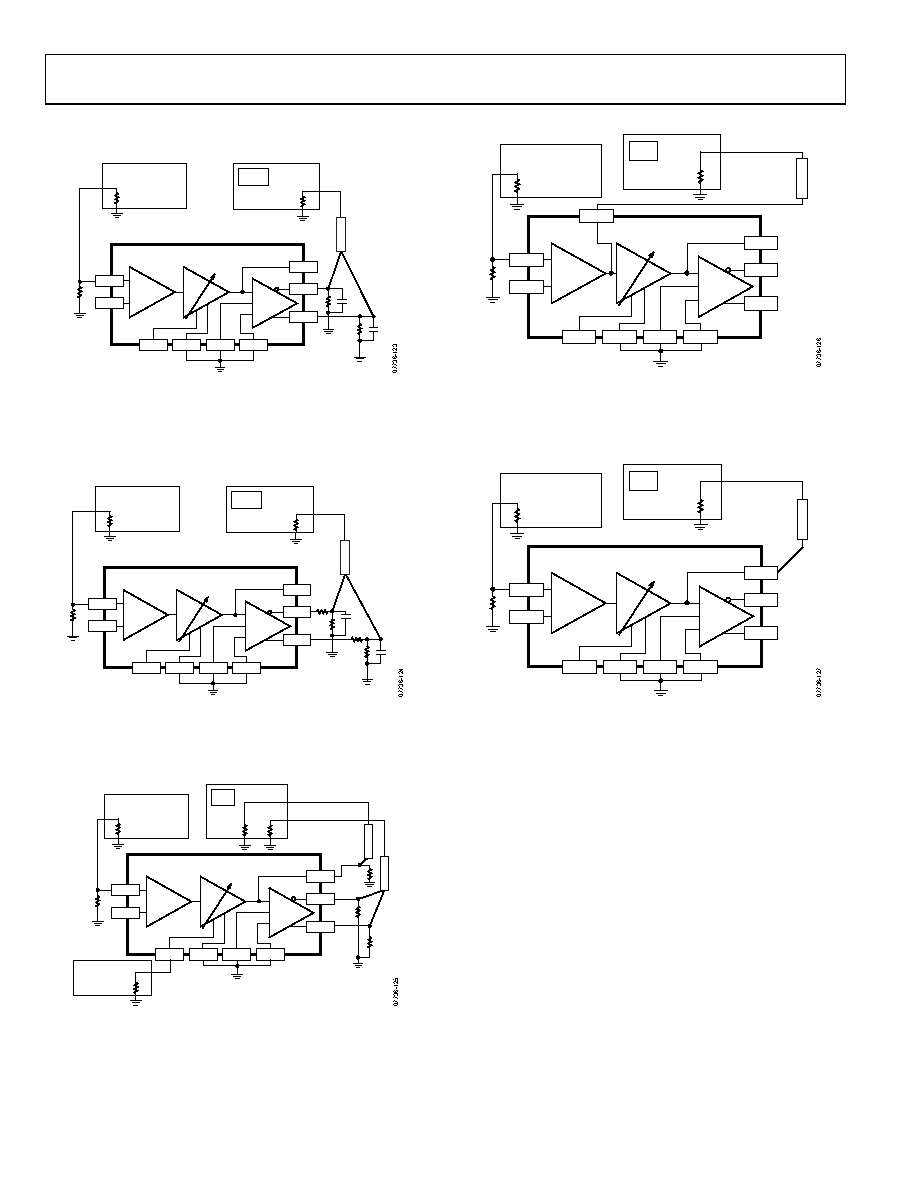

Figure 104. Pulse Response to Differential Output for Various Capacitive
Loads, VGAIN = 0.7 V (See Figure 62)
PrA
6dB
+
–
6dB
+
–
IPPx
IPNx
GNHx
VOLx
VOHx
OFSx
VOCM
VGAx
AD8264
GNLO
50Ω
CH1
CL
50Ω
50Ω
OUT
PULSE
GENERATOR
500Ω
10Ω
OSCILLOSCOPE
DIFFERENTIAL
PROBE
CL
500Ω
10Ω
Figure 105. Pulse Response to Differential Output for Various Capacitive
Loads with Series R = 10 Ω, VGAIN = 0.7 V (See Figure 63)
PrA
6dB
+
–
6dB
+
–
IPPx
IPNx
GNHx
VOLx
VOHx
OUT
OFSx
VOCM
VGAx
AD8264
GNLO
50Ω
DIFFERENTIAL
PROBE
CH2
CH1
50Ω
50Ω
OSCILLOSCOPE
500Ω
500Ω
500Ω
50Ω
50Ω
OUT
SIGNAL
GENERATOR
PULSE
GENERATOR
Figure 106. Gain Response to VGAx or Differential Output
(See Figure 64 and Figure 65)
PrA
6dB
+
–
6dB
+
–
IPPx
OPPx
IPNx
GNHx
VOLx
VOHx
OFSx
VOCM
VGAx
AD8264
GNLO
DIFFERENTIAL
PROBE
CH1
50Ω
OSCILLOSCOPE
50Ω
50Ω
OUT
SIGNAL
GENERATOR
Figure 107. Preamp Overdrive Recovery (See Figure 66)
PrA
6dB
+
–
6dB
+
–
IPPx
IPNx
GNHx
VOLx
VOHx
OFSx
VOCM
VGAx
AD8264
GNLO
DIFFERENTIAL
PROBE
CH1
50Ω
OSCILLOSCOPE
50Ω
50Ω
OUT
SIGNAL
GENERATOR
Figure 108. VGA Overdrive Recovery, VGAIN = 0.7 V (See Figure 67)
