ADL5356
Rev. 0 | Page 13 of 24
VS = 5 V, IS = 350 mA, TA = 25°C, fRF = 1900 MHz, fLO = 1697 MHz, LO power = 0 dBm, RF power = −10 dBm, R1 = R4 = 1.3 kΩ, R2 = R5 = 1 kΩ,
ZO = 50 Ω, VGS0 = VGS1 = VGS2 = 0 V, unless otherwise noted.
4
10
6
18
16
14
12
10
8
9
8
7
6
5
RF FREQUENCY (MHz)
VGS = 000
VGS = 011
VGS = 100
VGS = 110
1700
2200
2100
2000
1900
1800
1750
2150
2050
1950
1850

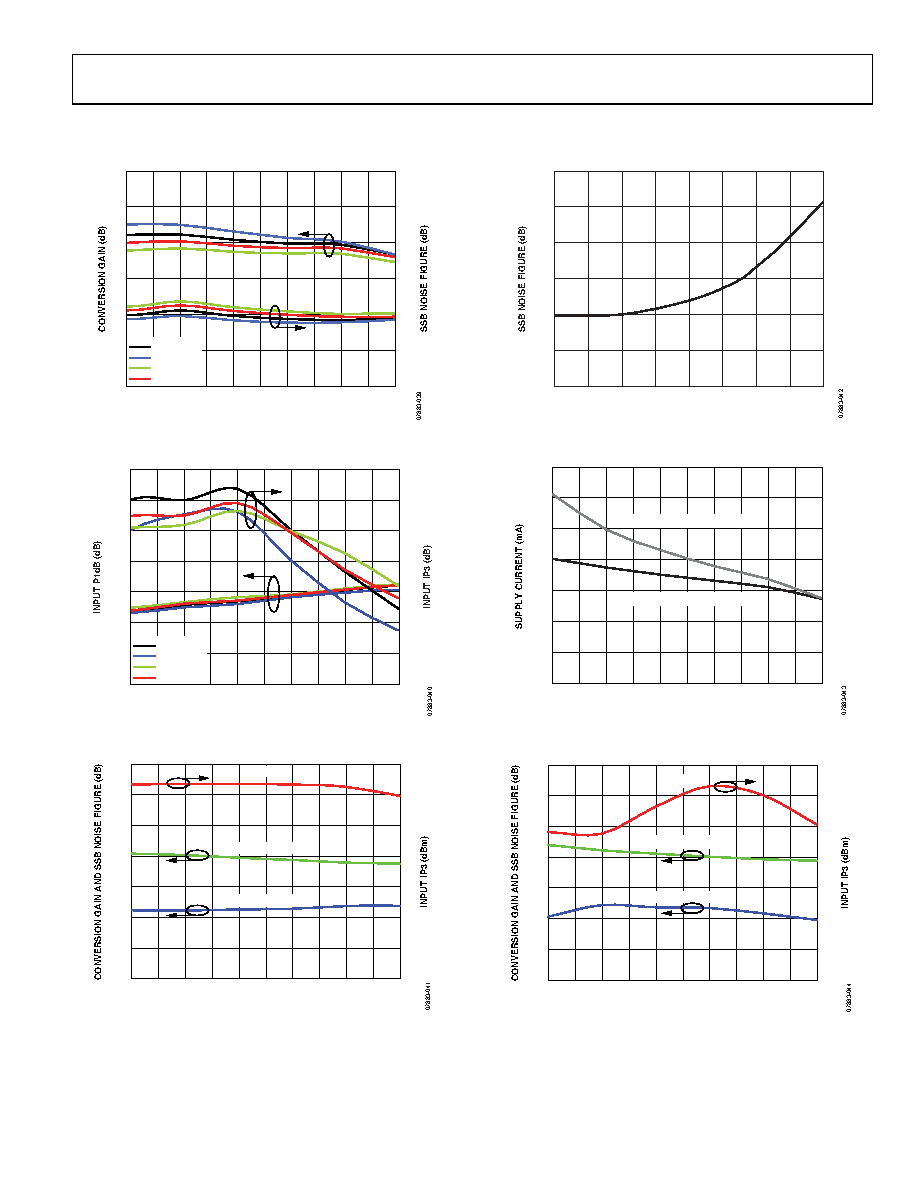

Figure 39. Power Conversion Gain and SSB Noise Figure vs. RF Frequency
for Various VGS Settings
RF FREQUENCY (MHz)
20
18
16
14
12
10
8
6
32
30
28
26
24
22
20
18
VGS = 000
VGS = 011
VGS = 100
VGS = 110
1700
2200
2100
2000
1900
1800
1750
2150
2050
1950
1850
Figure 40. Input IP3 and Input P1dB vs. RF Frequency for Various VGS Settings
LO BIAS RESISTOR VALUE (
Ω)
600
1600
1500
1400
1300
1200
1100
1000
900
800
700
13
12
11
10
9
8
7
6
35
30
25
20
15
10
5
0
CONVERSION GAIN
NOISE FIGURE
INPUT IP3
Figure 41. Power Conversion Gain, SSB Noise Figure, and Input IP3 vs.
LO Bias Resistor Value
BLOCKER POWER (dBm)
–30
–25
–20
–15
–5
–10
5
01
30
25
20
15
10
5
0
0
Figure 42. SSB Noise Figure vs. 10 MHz Offset Blocker Level
BIAS RESISTOR VALUE (
Ω)
600
1600
1500
1400
1300
1200
1100
1000
900
800
700
0
50
100
150
200
250
300
350
LO RESISTOR SUPPLY CURRENT
IF RESISTOR SUPPLY CURRENT
Figure 43. LO and IF Supply Current vs. IF and LO Bias Resistor Value
IF BIAS RESISTOR VALUE (
Ω)
600
1600
1500
1400
1300
1200
1100
1000
900
800
700
13
12
11
10
9
8
7
6
35
30
25
20
15
10
5
0
CONVERSION GAIN
NOISE FIGURE
INPUT IP3
Figure 44. Power Conversion Gain, Noise Figure, and Input IP3 vs.
IF Bias Resistor Value
