YEV09T06 6A DC-DC POL Converter

Data Sheet

ZD-02094 Rev 1.1, 25-Mar-09

www.power-one.com

Page 6 of 12

75

80

85

90

95

100

0

123

456

Output Current, A

Vin = 6.5V

Vin = 12V

Vin = 13.8V

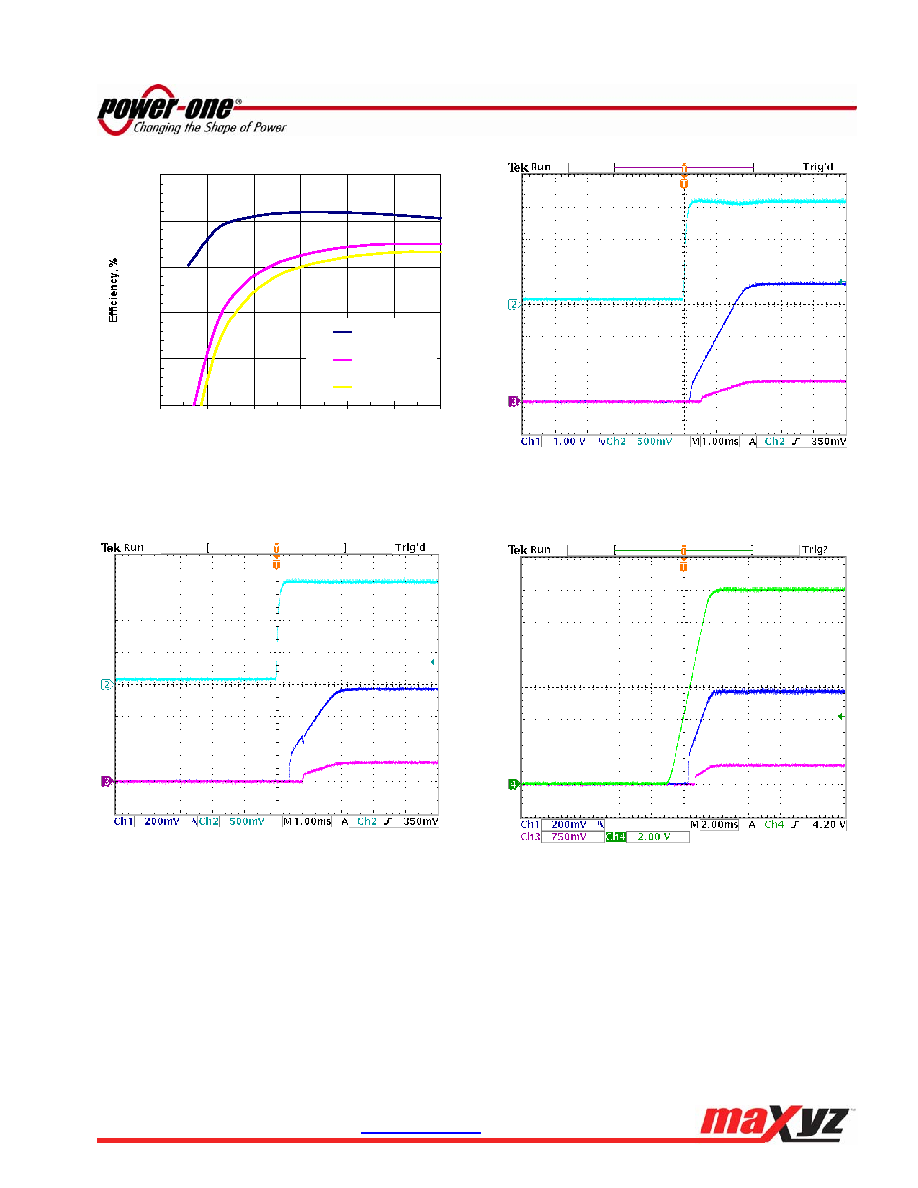

Figure 6. Efficiency vs. Load. Vout=5.0V

5.2

Turn-On Characteristics

Figure 7. Typical Start-Up Using Remote On/Off

(Vo = 0.6Vdc, Io=6A). Ch1 – Vout, Ch2 – ON/OFF,

Ch3 – Iout. Scale=10A/div

Figure 8. Typical Start-Up Using Remote On/Off

(Vo = 3.3 Vdc, Io=6A). Ch1 – Vout, Ch2 – ON/OFF,

Ch3 – Iout. Scale=10A/div

Figure 9. Typical Start-Up with application of Vin

(Vo = 0.6Vdc, Io = 6A). Ch1 – Vout, Ch3 – Iout, Ch4

– Vin. Scale=10A/div
