YEV09T06 6A DC-DC POL Converter

Data Sheet

ZD-02094 Rev 1.1, 25-Mar-09

www.power-one.com

Page 2 of 12

1.

Ordering Information

YE

V

09

T

06

–

0

z

Product

Family

Profile

Input

Voltage

PCB

Mounting

Output

Current

Dash

Options

RoHS Compliance

POL

Converter

Vertical

4.5V to

13.8V

Through-

hole

6A

0 – 0 to 70 ºC

operating range.

R – -40 to 85 ºC

operating range.

No suffix - RoHS compliant

with Pb solder exemption

1

G - RoHS compliant for all six

substances

______________________________________

1

The solder exemption

refers to all the restricted materials except lead in solder. These materials are Cadmium (Cd), Hexavalent chromium

(Cr6+), Mercury (Hg), Polybrominated biphenyls (PBB), Polybrominated diphenylethers (PBDE), and Lead (Pb) used anywhere except in

solder.

Example: YEV09T06-0G: YEV09T06 POL converter with the commercial temperature range and lead-free

solder. Refer to Figure 1 for label marking information.

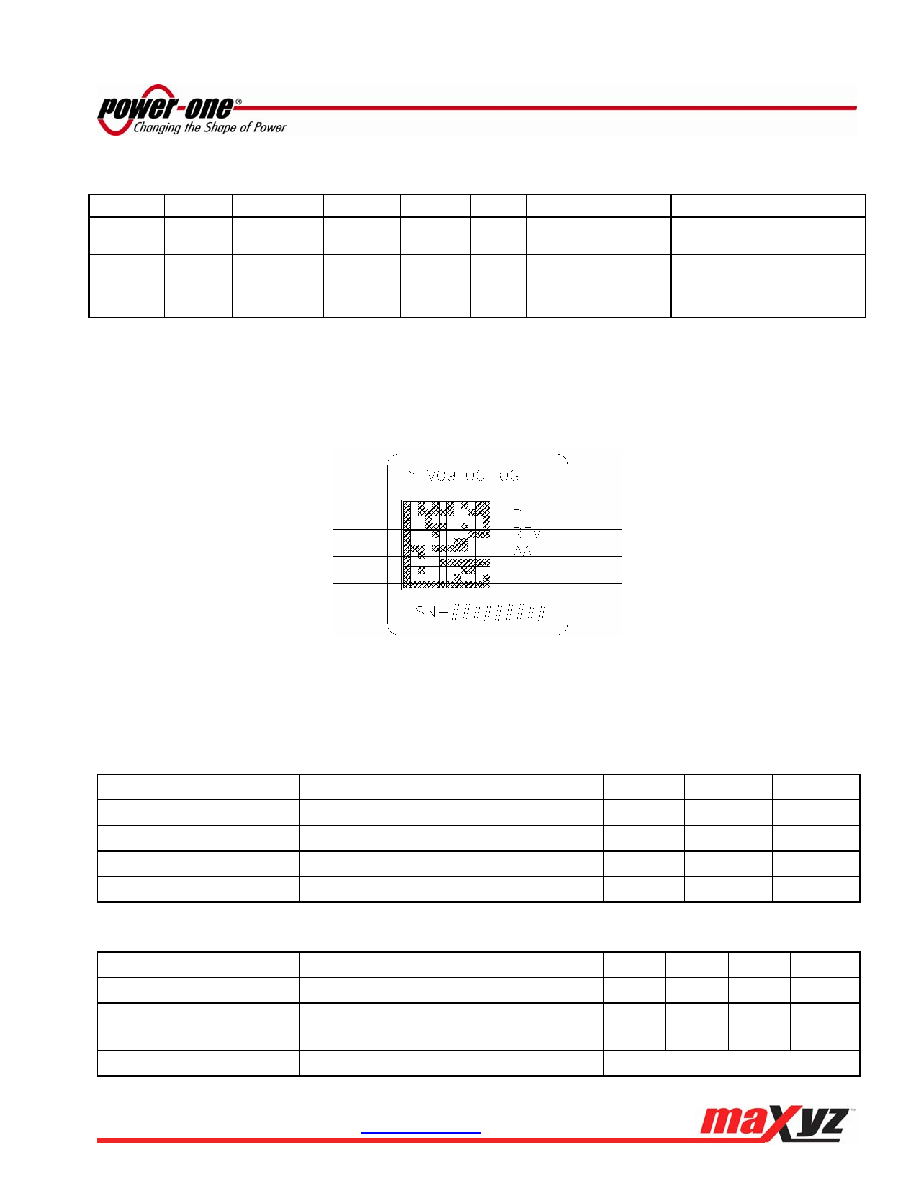

Figure 1. Label Drawing

2.

Absolute Maximum Ratings

Stresses in excess of the absolute maximum ratings may cause performance degradation, adversely affect long-

term reliability, and cause permanent damage to the converter.

Parameter

Conditions/Description

Min

Max

Units

Input Voltage

Continuous

-0.3

15

VDC

Ambient Temperature Range

Operating

0

70

C

Storage Temperature (Ts)

-55

125

C

Case Temperature (Tc)

Measured on the inductor L100

125

C

3.

Environmental and Mechanical Specifications

Parameter

Conditions/Description

Min

Nom

Max

Units

Weight

2.5

grams

MTBF

Calculated Per Telcordia Technologies SR-332,

Method I Case 1, 50% electrical stress,

40°C ambient temperature

67

MHrs

Lead Plating

YEV09T06-0 and YEV09T06-0G

100% Matte Tin
