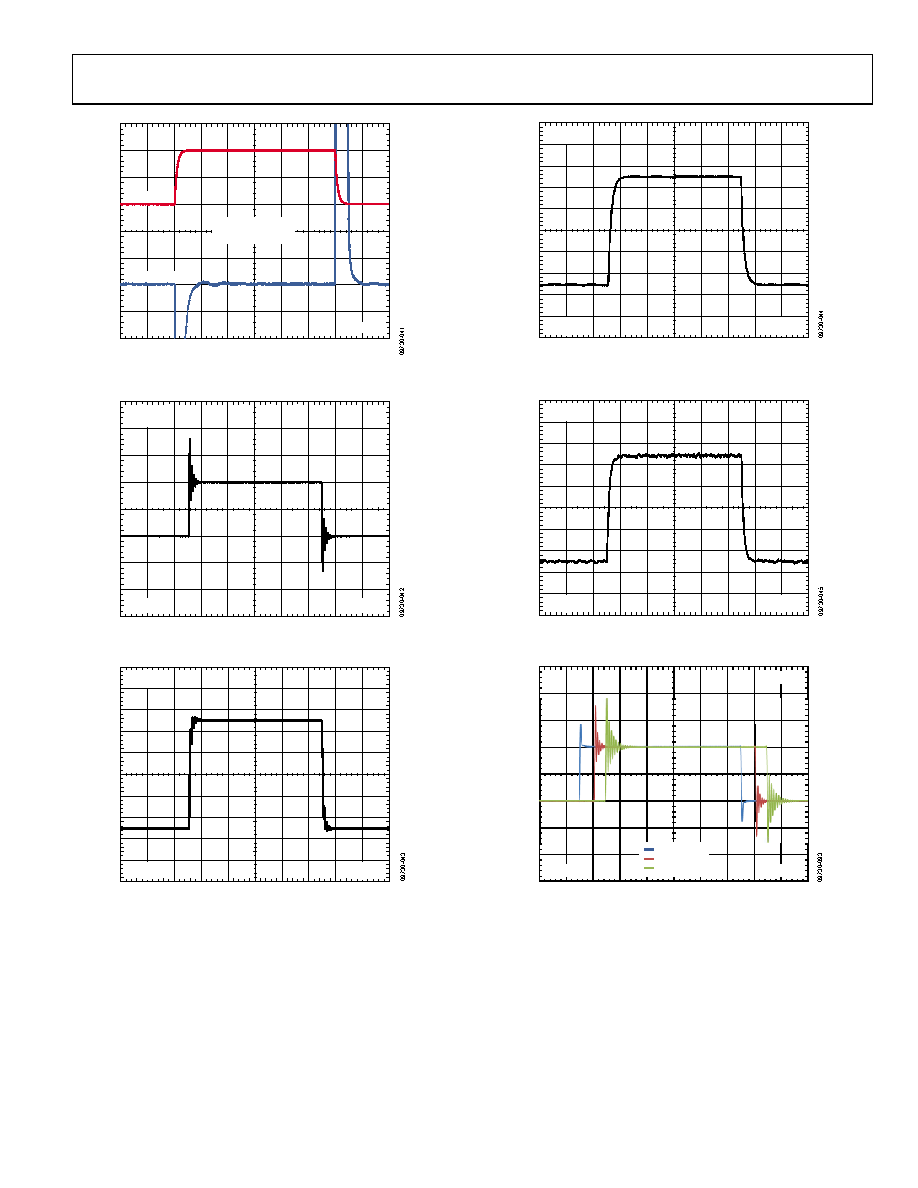

13 / 20 page  AD8429 Rev. 0 | Page 13 of 20 5V/DIV 10µs/DIV 5.04µs TO 0.01% 6.96µs TO 0.001% TIME (µs) 0.002%/DIV Figure 34. Large Signal Pulse Response and Settling Time (G = 1000), 10 V Step, VS = ±15 V G = 1 1µs/DIV 50mV/DIV Figure 35. Small Signal Response (G = 1), RL = 10 kΩ, CL = 100 pF 20mV/DIV G = 10 1µs/DIV Figure 36. Small Signal Response (G = 10), RL = 10 kΩ, CL = 100 pF 20mV/DIV G = 100 1µs/DIV Figure 37. Small Signal Response (G = 100), RL = 10 kΩ, CL = 100 pF 20mV/DIV G = 1000 10µs/DIV Figure 38. Small Signal Response (G = 1000), RL = 10 kΩ, CL = 100 pF G = 1 1µs/DIV 50mV/DIV NO LOAD CL = 100pF CL = 147pF Figure 39. Small Signal Response with Various Capacitive Loads (G = 1), RL = Infinity |
|
|
