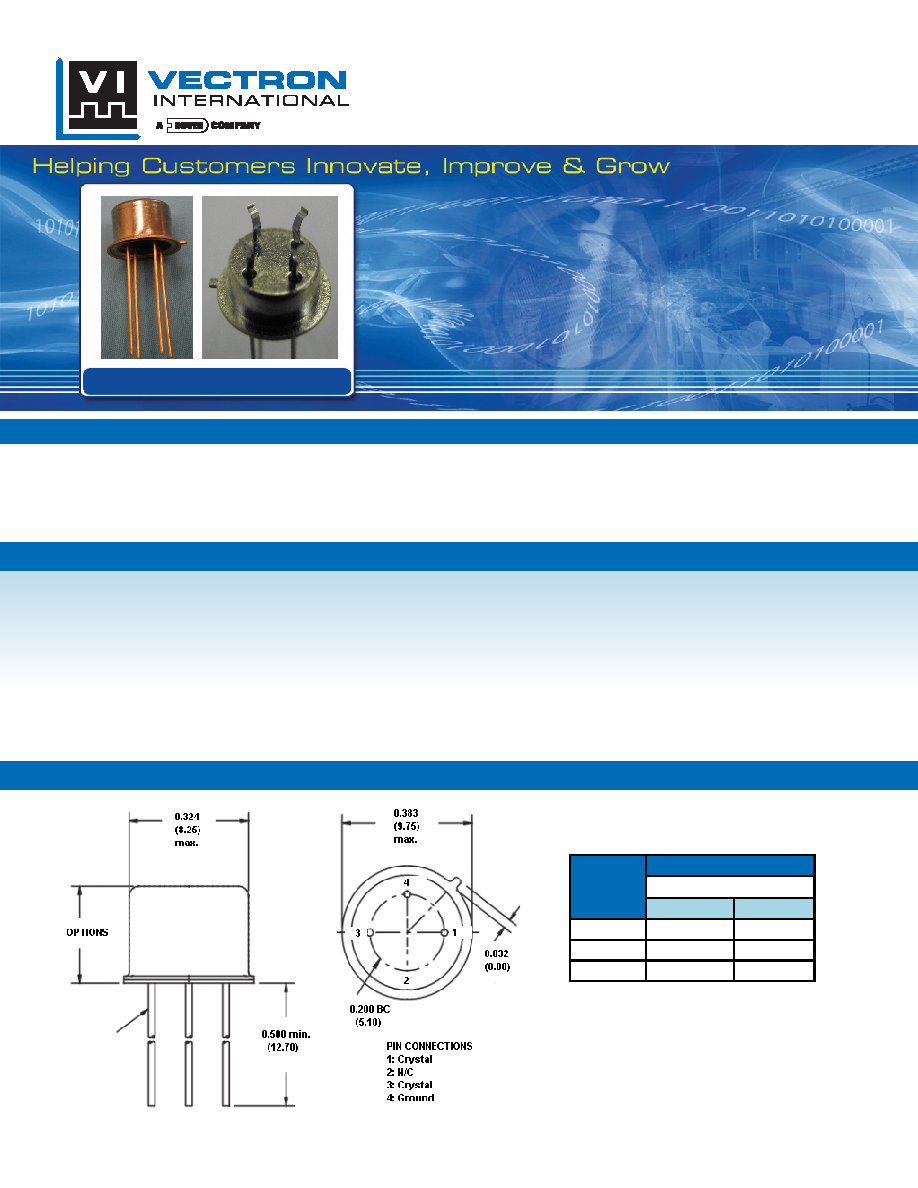

XR-R (HC35 or TO-5) Cold Weld Series

Crystal Resonator

Vecton International’s XR-R (HC35-TO5 style) cold weld crystals provide a precision, high reliability design in a rugged mount.

These precision crystals o er excellent industry leading performance characterisitcs and tight stabilities in a wide range of

frequencies. Low phase noise and low g-sensitivty options make this an ideal choice for Microwave, Satellite, Telemetry, Radar

and Military Communication applications.

• Industry Standard Base (2 pt, 3 pt, 4 pt blank mounts)

• Variety of package heights available

• AT, SC and IT-Cut Fundamental and OT Modes

• Low Phase Noise, Low G-Sensitivity options

• Tight Stabilities and Tolerances, Excellent Aging

• Robust Rugged Design for demanding environments

• Swept Quartz & Hi-Rel Screening Options Available

• MIL-PRF-3098 equivalent (CR101/U, CR102/U, CR103/U)

• Telecommunications

• Military & Defense

• Microwave

• Telemetry

• Ground and Satellite Communications

• Precision Oscillators (TCXO, VCXO, OCXO)

Features

Applications

Standard Physical Speci cations

Description

XR-R (HC35) Series

HEIGHT

CODE

OPTION

PACKAGE EXAMPLES

XR-R SERIES

inches

mm

1

0.265

6.73

2

0.230

5.84

3

0.200

5.08

Reference dimensions specified in inches and millimeters (mm).

Specification subject to change without notice.
