CC2500-RTY1 datasheet(25/96 Pages) TI

25 / 96 page

CC2500

SWRS040C

Page 25 of 89



When using OOK modulation the first two

entries into this table are used (index 0

and index 1).

Since the PATABLE is an 8-byte table, the

table is written and read from the lowest

setting (0) to the highest (7), one byte at a

time. An index counter is used to control the

access

the

table.

This

counter

incremented each time a byte is read or

written to the table, and set to the lowest index

when CSn is high. When the highest value is

reached the counter restarts at 0.

The access to the PATABLE is either single

byte or burst access depending on the burst

bit. When using burst access the index counter

will count up; when reaching 7 the counter will

restart at 0. The R/W bit controls whether the

access is a write access (R/W=0) or a read

access (R/W=1).

If one byte is written to the PATABLE and this

value is to be read out then CSn must be set

high before the read access in order to set the

index counter back to zero.

Note that the content of the PATABLE is lost

when entering the SLEEP state, except for the

first byte (index 0).

See Section 24 on page 46 for output power

programming details.

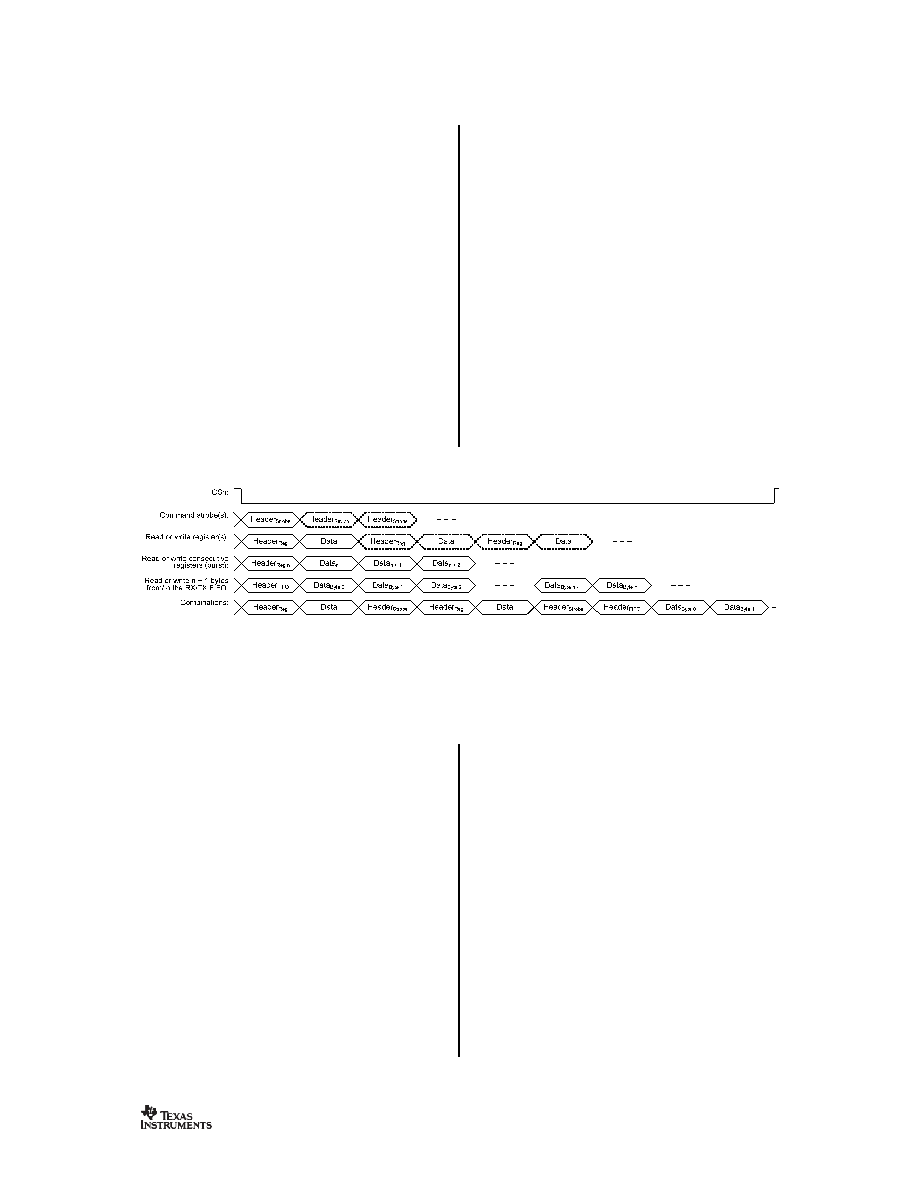

Figure 9: Register Access Types

11 Microcontroller Interface and Pin Configuration

In a typical system,

CC2500 will interface to a

microcontroller. This microcontroller must be

able to:

 Program CC2500 into different modes

 Read and write buffered data

 Read back status information via the 4-wire

SPI-bus configuration interface (SI, SO,

SCLK

and CSn)

11.1

Configuration Interface

The microcontroller uses four I/O pins for the

SPI configuration interface (SI, SO, SCLK and

CSn

). The SPI is described in Section 10 on

page 21.

11.2

General Control and Status Pins

The

CC2500 has two dedicated configurable

pins (GDO0 and GDO2) and one shared pin

(GDO1)

that

can

output

internal

status

information useful for control software. These

pins can be used to generate interrupts on the

MCU. See Section 28 on page 51 for more

details on the signals that can be programmed.

GDO1

is shared with the SO pin in the SPI

interface. The default setting for GDO1/SO is 3-

state output. By selecting any other of the

programming options the GDO1/SO pin will

become a generic pin. When CSn is low, the

pin will always function as a normal SO pin.

In the synchronous and asynchronous serial

modes, the GDO0 pin is used as a serial TX

data input pin while in transmit mode.
