ADRF6704ACPZ-R7 数据表(PDF) 13 Page - Analog Devices

部件名 ADRF6704ACPZ-R7
功能描述  2050 MHz to 3000 MHz Quadrature Modulator
PDF  36 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
制造商  AD [Analog Devices]
网页  http://www.analog.com
标志 AD - Analog Devices

ADRF6704ACPZ-R7 数据表(HTML) 13 Page - Analog Devices

Back Button ADRF6704ACPZ-R7 Datasheet HTML 9Page - Analog Devices ADRF6704ACPZ-R7 Datasheet HTML 10Page - Analog Devices ADRF6704ACPZ-R7 Datasheet HTML 11Page - Analog Devices ADRF6704ACPZ-R7 Datasheet HTML 12Page - Analog Devices ADRF6704ACPZ-R7 Datasheet HTML 13Page - Analog Devices ADRF6704ACPZ-R7 Datasheet HTML 14Page - Analog Devices ADRF6704ACPZ-R7 Datasheet HTML 15Page - Analog Devices ADRF6704ACPZ-R7 Datasheet HTML 16Page - Analog Devices ADRF6704ACPZ-R7 Datasheet HTML 17Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 13 / 36 page
background image
Data Sheet
ADRF6704
Rev. 0 | Page 13 of 36
–120
–115
–110
–105
–100
–95
–90
–85
–80
–75
–70
2500
2550
2600
2650
2700
2750
2800
2850
2900
LO FREQUENCY (MHz)
2× PFD FREQUENCY
4× PFD FREQUENCY
–40°C
+25°C
+85°C

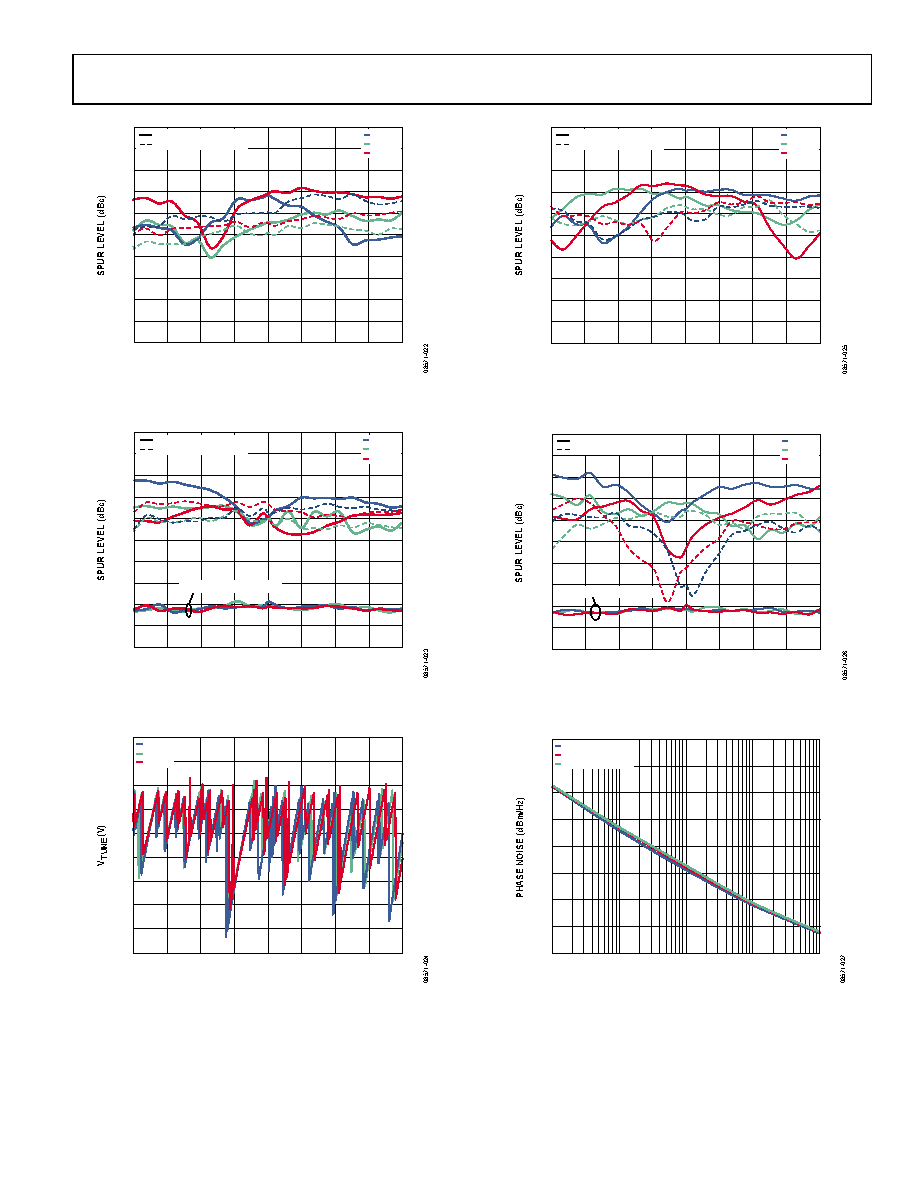

Figure 22. PLL Reference Spurs vs. LO Frequency (2× PFD and 4× PFD) at
Modulator Output
–120
–115
–110
–105
–100
–95
–90
–85
–80
–75
–70
2500
2550
2600
2650
2700
2750
2800
2850
2900
LO FREQUENCY (MHz)
1× PFD FREQUENCY
3× PFD FREQUENCY
0.5× PFD FREQUENCY
–40°C
+25°C
+85°C
Figure 23. PLL Reference Spurs vs. LO Frequency (0.5× PFD, 1× PFD,
and 3× PFD) at Modulator Output
1.0
1.2
1.4
1.6
1.8
2.0
2.2
2.4
2.6
2.8
2500
2550
2600
2650
2700
2750
2800
2850
2900
LO FREQUENCY (MHz)
–40°C
+25°C
+85°C
Figure 24. VTUNE vs. LO Frequency and Temperature
–120
–115
–110
–105
–100
–95
–90
–85
–80
–75
–70
2500
2550
2600
2650
2700
2750
2800
2850
2900
LO FREQUENCY (MHz)
2× PFD FREQUENCY
4× PFD FREQUENCY
–40°C
+25°C
+85°C
Figure 25. PLL Reference Spurs vs. LO Frequency (2× PFD and 4× PFD) at LO
Output
LO FREQUENCY (MHz)
–120
–115
–110
–105
–100
–95
–90
–85
–80
–75
–70
2500
2550
2600
2650
2700
2750
2800
2850
2900
0.5× PFD FREQUENCY
1× PFD FREQUENCY
3× PFD FREQUENCY
–40°C
+25°C
+85°C
Figure 26. PLL Reference Spurs vs. LO Frequency (0.5× PFD, 1× PFD, and
3× PFD) at LO Output
–160
–140
–120
–100
–80
–60
–40
–20
0
1k
10k
100k
1M
10M
FREQUENCY (Hz)
LO = 2519.9MHz
LO = 2702.7MHz
LO = 2884.7MHz
Figure 27. Open-Loop VCO Phase Noise at 2519.9 MHz, 2702.7 MHz, and
2884.7 MHz
