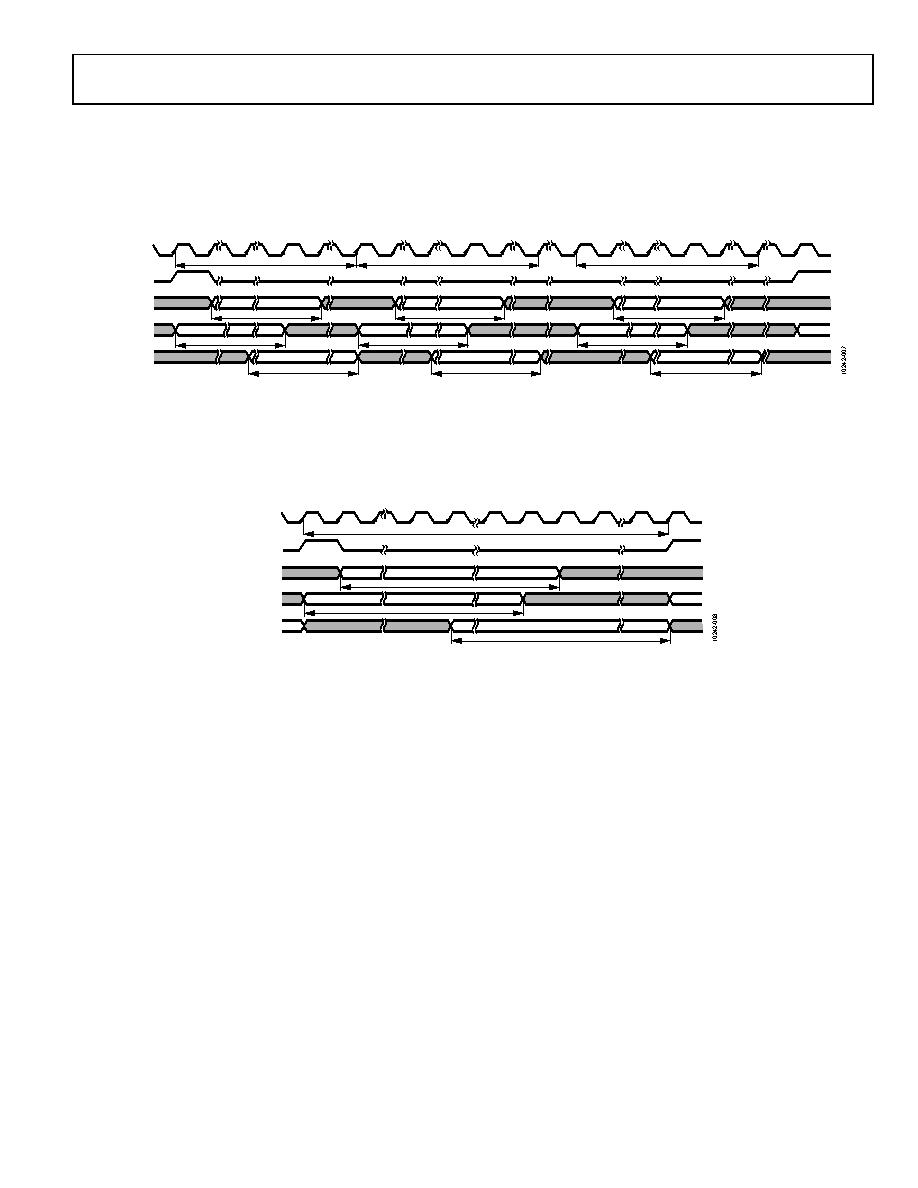

21 / 48 page  Data Sheet SSM2518 Rev. A | Page 21 of 48 PCM, MULTICHANNEL MODE SAI = 1 (2 channels), 2 (4 channels), 3 (8 channels), 4 (16 channels) SDATA_FMT = 0 (I2S), 1 (LJ), 2 (RJ 24-bit), 3 (RJ 16-bit) BCLK_EDGE = 1 LRCLK_MODE = 1 SLOT_WIDTH = 0 (32 BCLKs), 1 (24 BCLKs), 2 (16 BCLKs) CHANNEL 1 CHANNEL 1 CHANNEL 2 CHANNEL 2 CHANNEL 2 CHANNEL N CHANNEL N CHANNEL N 32/24/16 BCLKs 32/24/16 BCLKs 32/24/16 BCLKs 8 TO 32 BCLKs 8 TO 32 BCLKs 8 TO 32 BCLKs 8 TO 32 BCLKs 8 TO 32 BCLKs 8 TO 32 BCLKs CHANNEL 1 24 OR 16 BCLKs 24 OR 16 BCLKs 24 OR 16 BCLKs BCLK LRCLK SDATA I2S SDATA LJ SDATA RJ Figure 29. Multichannel PCM Modes PCM MONO MODE SAI = 5 SDATA_FMT = 0 (I2S), 1 (LJ), 2 (RJ 24-bit), 3 (RJ 16-bit) BCLK_EDGE = 1 LRCLK_MODE = 1 MONO CHANNEL 8 TO 32 BCLKs MONO CHANNEL 8 TO 32 BCLKs MONO CHANNEL 8 TO 32 BCLKs ANY # BCLKs BCLK LRCLK SDATA I2S SDATA LJ SDATA RJ Figure 30. Mono PCM Modes |
|
