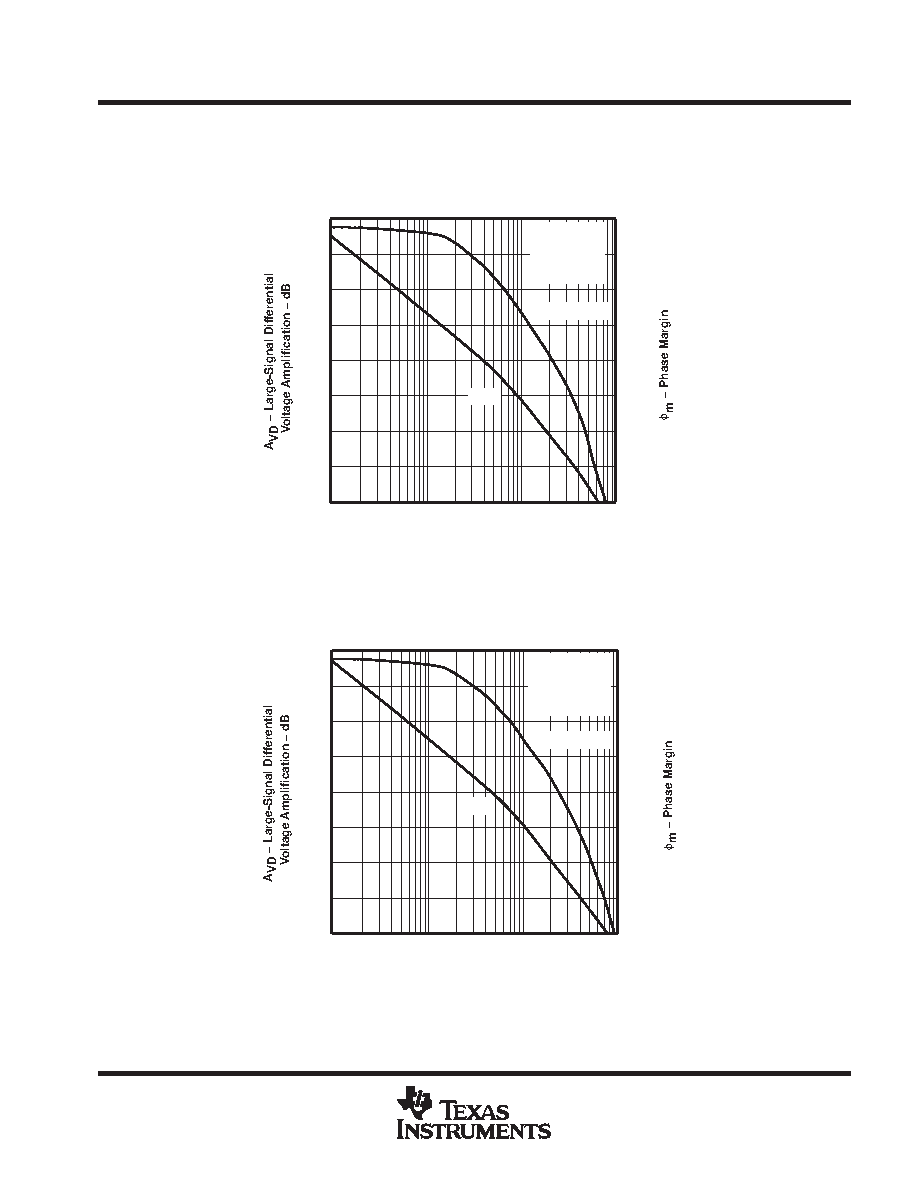

TYPICAL CHARACTERISTICS

f − Frequency − Hz

LARGE-SIGNAL DIFFERENTIAL VOLTAGE

vs

FREQUENCY

40

30

20

10

0

−10

−20

−30

−40

103

104

105

106

90

°

45

°

0

°

−45

°

−90

°

VDD = 3 V

RL = 10 kΩ

CL= 100 pF

TA = 25°C

Phase Margin

Gain

Figure 23

f − Frequency − Hz

LARGE-SIGNAL DIFFERENTIAL VOLTAGE

vs

FREQUENCY

40

30

20

10

0

−10

−20

−30

−40

103

104

105

106

90

°

45

°

0

°

−45

°

−90

°

VDD = 5 V

RL= 10 kΩ

CL= 100 pF

TA = 25°C

Phase Margin

Gain

Figure 24

† For all curves where VDD = 5 V, all loads are referenced to 2.5 V. For all curves where VDD = 3 V, all loads are referenced to 1.5 V.
