F–12

Dimensions are shown: Inches (mm)

Specifications and dimensions subject to change

www.ck-components.com

F

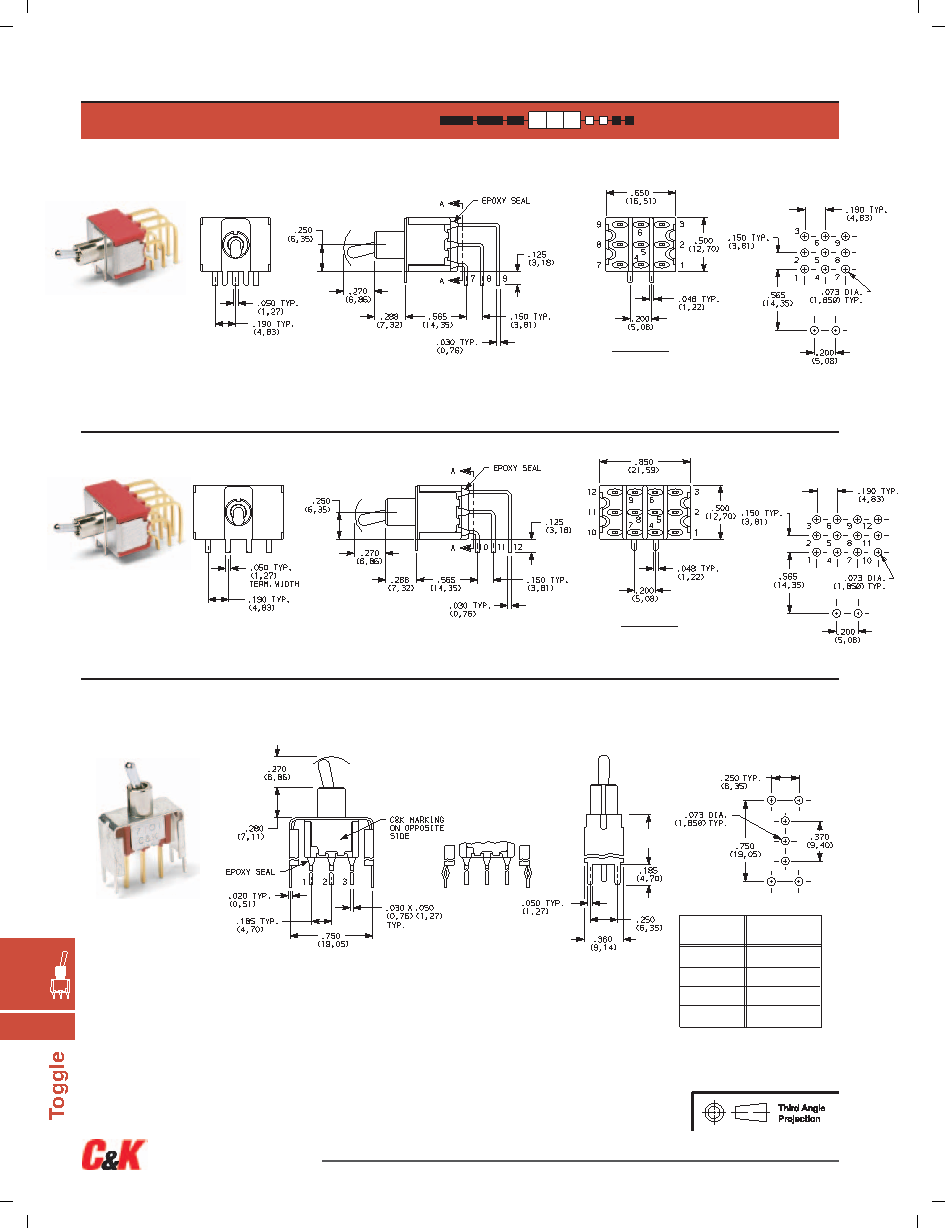

Actuator Shown In Pos. 1

SECTION A-A

PC MOUNTING

Dim ‘A’

Actuator Shown In Pos. 1

Snap-In

AV2

VERTICAL RIGHT ANGLE, PC THRU-HOLE,

.150" PITCH

V2, V6, V7, V8

VERTICAL MOUNT, V-BRACKET

V21, V71, V81

VERTICAL MOUNT, V-BRACKET, SNAP-IN

7401MD9AV2BE

Vertical Actuation

4PDT

7101MD9__BE

SPDT

Not available with I seal option.

Terminal bend radii and lead-in manufacturing option.

Not available with I seal option.

V2, V21

.555 (14,10)

V6

.460 (11,68)

V7, V71

.630 (16,00)

V8, V81

.953 (24,21)

DIM ‘A’

OPTION

CODE

Actuator Shown In Pos. 1

SECTION A-A

AV2

VERTICAL RIGHT ANGLE, PC THRU-HOLE,

.150" PITCH

Not available with I seal option.

Terminal bend radii and lead-in manufacturing option.

7301MD9AV2BE

Vertical Actuation

3PDT

7000 Series

Miniature Toggle Switches

TERMINATIONS

PC MOUNTING

PC MOUNTING
