7000 Series

Miniature Toggle Switches

ACTUATOR

Replaces K1, K18

Replaces K, K8

*

Gloss Plastic

Chrome Finish

No color choice required.

Locking Positions

–03 & –11 Models

3 Position lock

–05, –09 & –15 Models

1 Position lock

–07 & –13 Models

2 Position lock

–01 Models

2 Position lock

–08 Models

1 Position lock

* Add .070 (1,78) for D, D8 & D9 bushings,

subtract .020 (0,51) for H3 bushing.

Finish: Matte (L41 & L42).

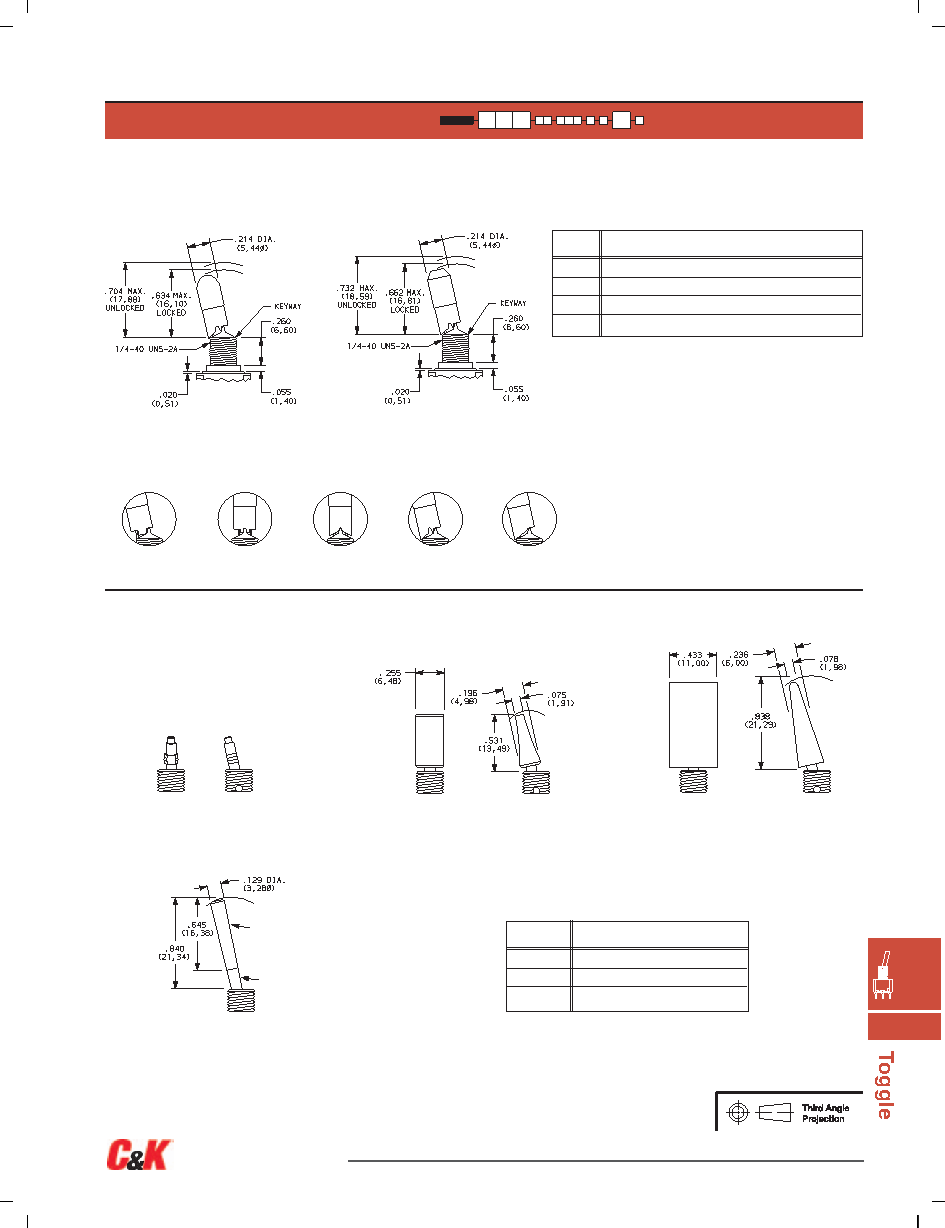

L40

LEVER HANDLE WITHOUT CAP

L41

PLASTIC LEVER HANDLE WITH

ANTIROTATION AND CAP, P/N 4810

L42

PLASTIC LEVER HANDLE WITH

ANTIROTATION AND CAP, P/N 4811

K9

LOCKING LEVER, .704" HIGH

(unthreaded)

K2

LOCKING LEVER, .704" HIGH

(threaded)

K19

LOCKING LEVER, .732" HIGH

(unthreaded)

K12

LOCKING LEVER, .732" HIGH

(threaded)

NOTE: To prevent accidental actuation, toggle must be lifted

before being actuated. When released, toggle will lock in place.

Overtightening mounting nut may cause actuator to bind.

Locking levers supplied with bushing shown.

Bushing option code not required unless CW splashproof

bushing ordered.

NOTE: Lever handle for L41 & L42 actuators supplied, but not installed. For interchangeability,

order L40 actuator option and lever handles separately, see page F-16. L4X actuators not

available with H4, Y1, Y4 bushings. Antirotation: Provides anti-‘push-in’ feature on actuator.

NONE

NATURAL ALUMINUM–With Nickle Plated Bushing

2

BLACK ANODIZED ALUMINUM

3

RED ANODIZED ALUMINUM

7

BLUE ANODIZED ALUMINUM

ACTUATOR CAP FINISH

OPTION

CODE

NONE

No Actuator Color (L40 option)

2

BLACK

3

RED

PLASTIC ACTUATOR

COLORS

OPTION

CODE

ACTUATOR FINISH/COLOR

ACTUATOR

L3

PLASTIC .940” HIGH
