AD8065/AD8066

Rev. J | Page 14 of 28

t = 0

μs/DIV

2mV/DIV

+0.1%

–0.1%

VIN = 140mV/DIV

VOUT – 2VIN

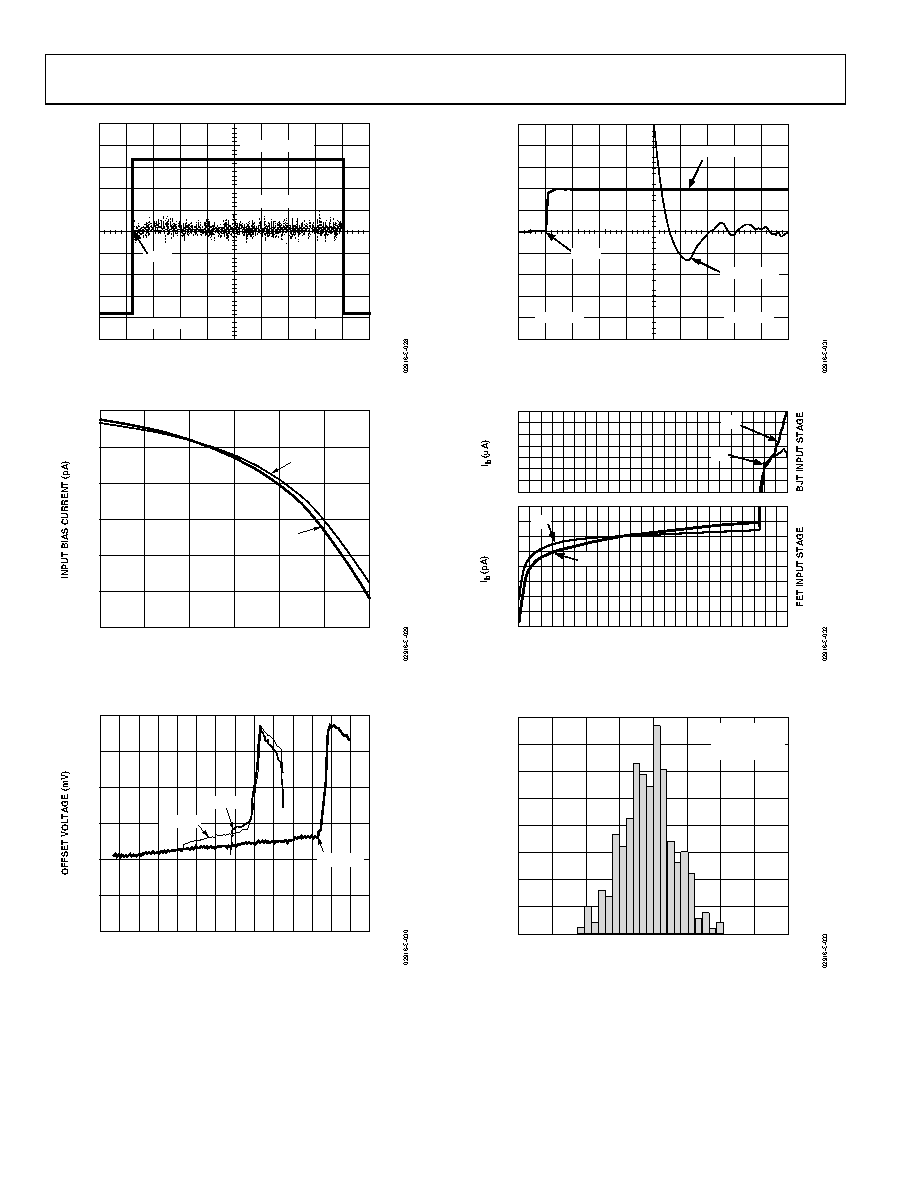

Figure 28. Long-Term Settling Time (See Figure 49)

–30

–25

–20

–15

–10

–5

TEMPERATURE (°C)

–Ib

+Ib

Figure 29. Input Bias Current vs. Temperature

–0.3

–0.2

–0.1

0.1

0.2

0.3

–14

–10

–12

–8–6–4

–2

COMMON-MODE VOLTAGE (V)

VS = ±12V

VS = ±5V

VS = +5V

Figure 30. Input Offset Voltage vs. Common-Mode Voltage

+0.1%

2mV/DIV

10ns/DIV

–0.1%

t = 0

VOUT – 2VIN

VIN = 500mV/DIV

Figure 31. 0.1% Short-Term Settling Time (See Figure 49)

–5

–15

–25

–30

–12

–2

–10

–8

–6

–4

COMMON-MODE VOLTAGE (V)

–Ib

+Ib

–Ib

+Ib

–20

–10

Figure 32. Input Bias Current vs. Common-Mode Voltage Range

(See the Input and Output Overload Behavior Section)

INPUT OFFSET VOLTAGE (mV)

–2.0

2.0

–1.5

–1.0

–0.5

0.5

1.0

1.5

N = 299

SD = 0.388

MEAN = –0.069

Figure 33. Input Offset Voltage
