BEZELS FOR FRONTPANEL

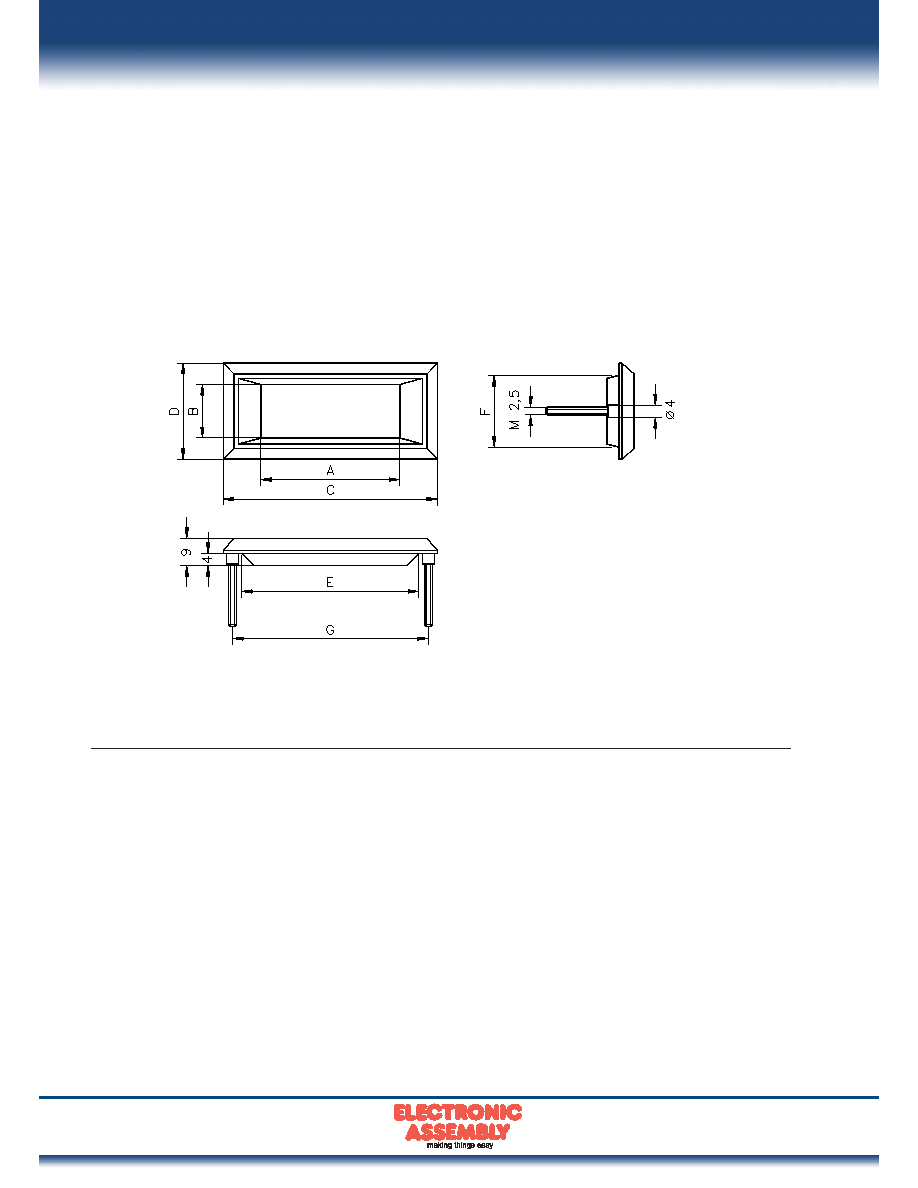

DESIGN AND MOUNTING

STANDARD BEZELS WITH SCREWPINS M2,5

FOR LCD-MODULES FROM SERIES EA 11xx,

EA 21xx, EA 31xx, 41xx AND EA 61xx

(all dimensions in mm)

The bezels have two (EA 050-N: four) screwpins M2,5 for mounting the LCD-module on the frontpanel.

The delivery includes the matching nuts.

At 5 pcs off we can deliver these bezels (excl. EA 050-N) with pasted acrylicglass (thickness 1mm).

Ordering

viewing area

bezel size

cutout

mounting

matching module

information

A

B

C

D

E

F

G

EA 03

45,6

17,7

70,0 32,0

54,5

22,0

61 / M2,5

13mm 4digit

EA 08-N

62,2

22,6

87,0 36,6

72,7

28,2

80,3/ M2,5

18mm 4digit

EA 09

86,2

17,7

113,0 32,0

96,0

22,0

104 / M2,5

13mm 8digit

EA 050-N

160,0

56,0

189,0 73,0

173,2

62,3

180,3 x 61

50mm 4digit
