HCTS393DMSR 数据表(PDF) 8 Page - Intersil Corporation

部件名 HCTS393DMSR
功能描述  Radiation Hardened Dual 4-Stage Binary Counter
PDF  9 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
制造商  INTERSIL [Intersil Corporation]
网页  http://www.intersil.com/cda/home
标志 INTERSIL - Intersil Corporation

HCTS393DMSR 数据表(HTML) 8 Page - Intersil Corporation

  HCTS393DMSR Datasheet HTML 1Page - Intersil Corporation HCTS393DMSR Datasheet HTML 2Page - Intersil Corporation HCTS393DMSR Datasheet HTML 3Page - Intersil Corporation HCTS393DMSR Datasheet HTML 4Page - Intersil Corporation HCTS393DMSR Datasheet HTML 5Page - Intersil Corporation HCTS393DMSR Datasheet HTML 6Page - Intersil Corporation HCTS393DMSR Datasheet HTML 7Page - Intersil Corporation HCTS393DMSR Datasheet HTML 8Page - Intersil Corporation HCTS393DMSR Datasheet HTML 9Page - Intersil Corporation
Zoom Inzoom in Zoom Outzoom out
 8 / 9 page
background image
679

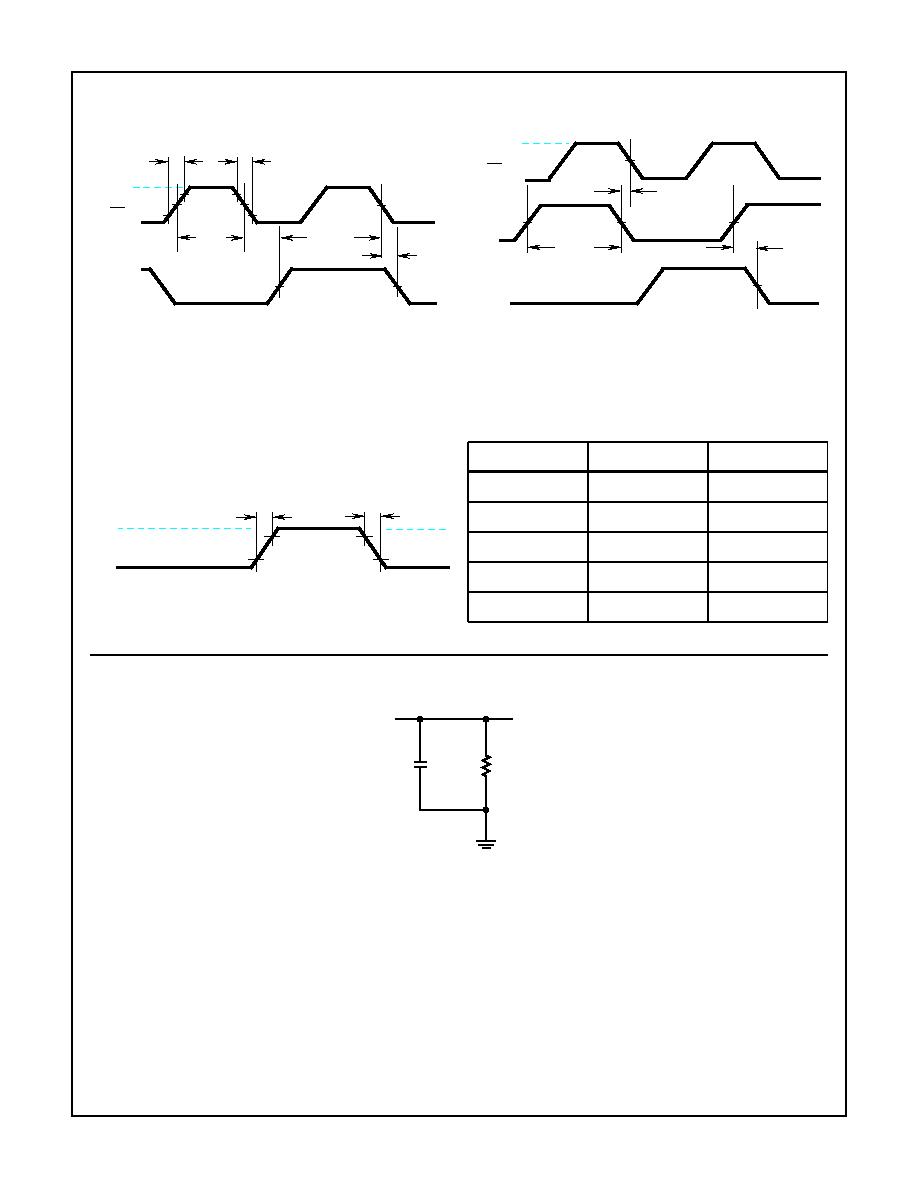

HCTS393MS
AC Load Circuit
AC Timing Diagrams
FIGURE 1. CLOCK PRE-REQUISITE AND PROPAGATION DE-
LAY, AND OUTPUT-TRANSITION TIMES
FIGURE 2. MASTER RESET PRE-REQUISITE AND PROPAGA-
TION DELAYS
FIGURE 3. OUTPUT TRANSITION TIME
CP
Qn
VS
VS
TW
TPLH
VS
VS
INPUT
LEVEL
VS
TPHL
tr
tf
CP
VS
INPUT
LEVEL
VS
VS
MR
Qn
TPHL
TREC
VS
TW
OUTPUT
TTHL
80%
20%
80%
20%
VOH
VOL
TTLH
AC VOLTAGE LEVELS
PARAMETER
HCTS
UNITS
VCC
4.50
V
VIH
3.00
V
VS
1.30
V
VIL
0
V
GND
0
V
DUT
TEST
CL
RL
POINT
CL = 50pF
RL = 500
Ω
Spec Number
518633
