FT-X3 Communications Transformer

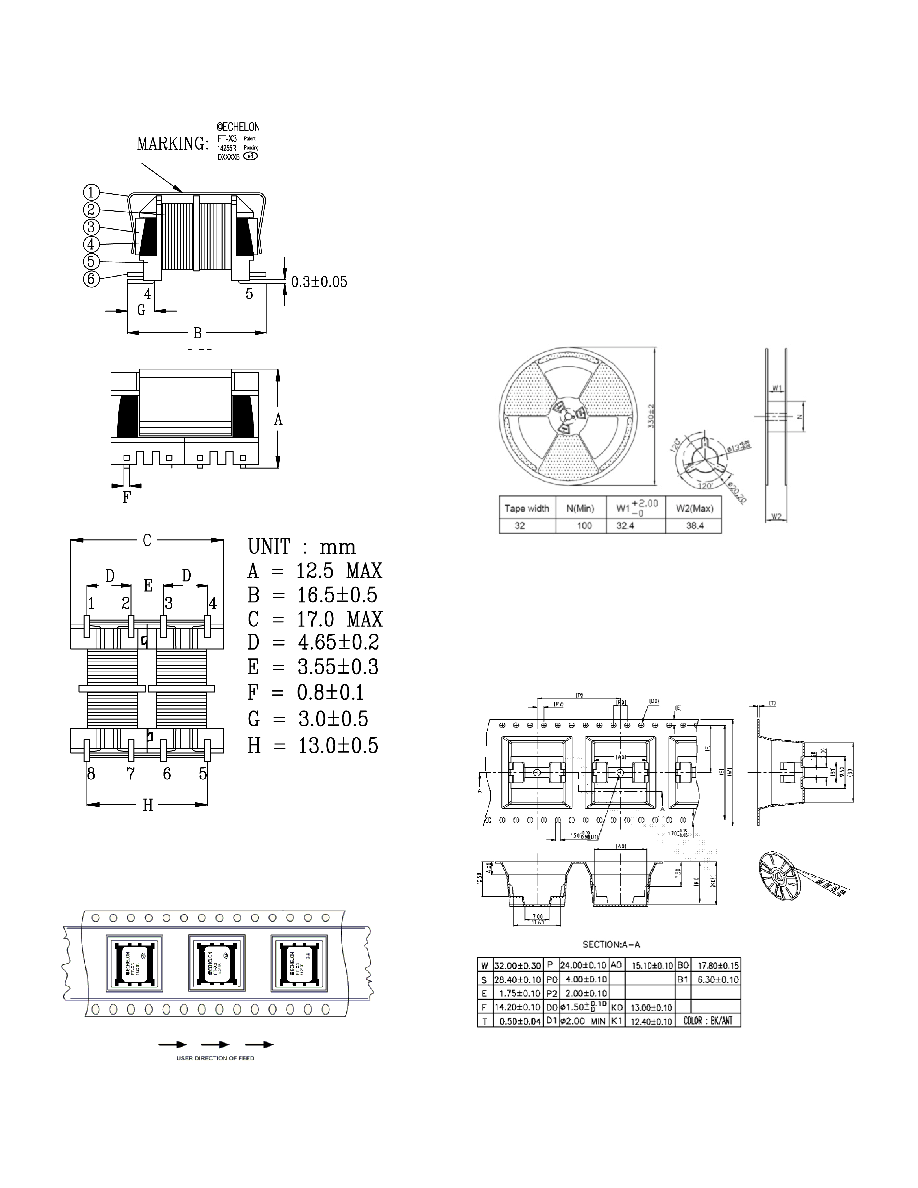

Mechanical Specification

FT-X3 Packing Specifications

Figure 8 shows the placement of each device on the

carrier tape.

Figure 8: FT-X3 Device Placement on the Carrier Tape

Figure 9 shows the 1.3” Reels/4” Hub.

Figure 9: FT-X3 Reel and Hub Drawing

Notes

1. All dimensions are in millimeters.

2. Tolerances unless noted: 1PL + ; 2PL + 0.2;

3PL + 0.1; ANG + 0.5”; FRACT +

Figure 21 shows the FT-X3 Packing Specification

Figure 8 FT-X3 Packing Drawing

Notes

1. Material: Black conductive polystyrene PS

2. Inspect per EIA-481-3 standard.

3. Tape thickness: 0.5 ±0.05 mm

4. 10 Sprocket hole pitch cumulative

tolerance ±0.20

5. Carrier chamber is within 1 mm in 100 mm

6. Packing length per 22” reel: 10.2 meters

7. Packing length per 13” reel: 3.4 meters

8. Component load per 13” reel: 100 PCS

9. Compression strength: 1.5 kgf min.

10. Environment-Related substance must meet DELTA’s general spec no.

10000-0162
