E5EZ-PRR

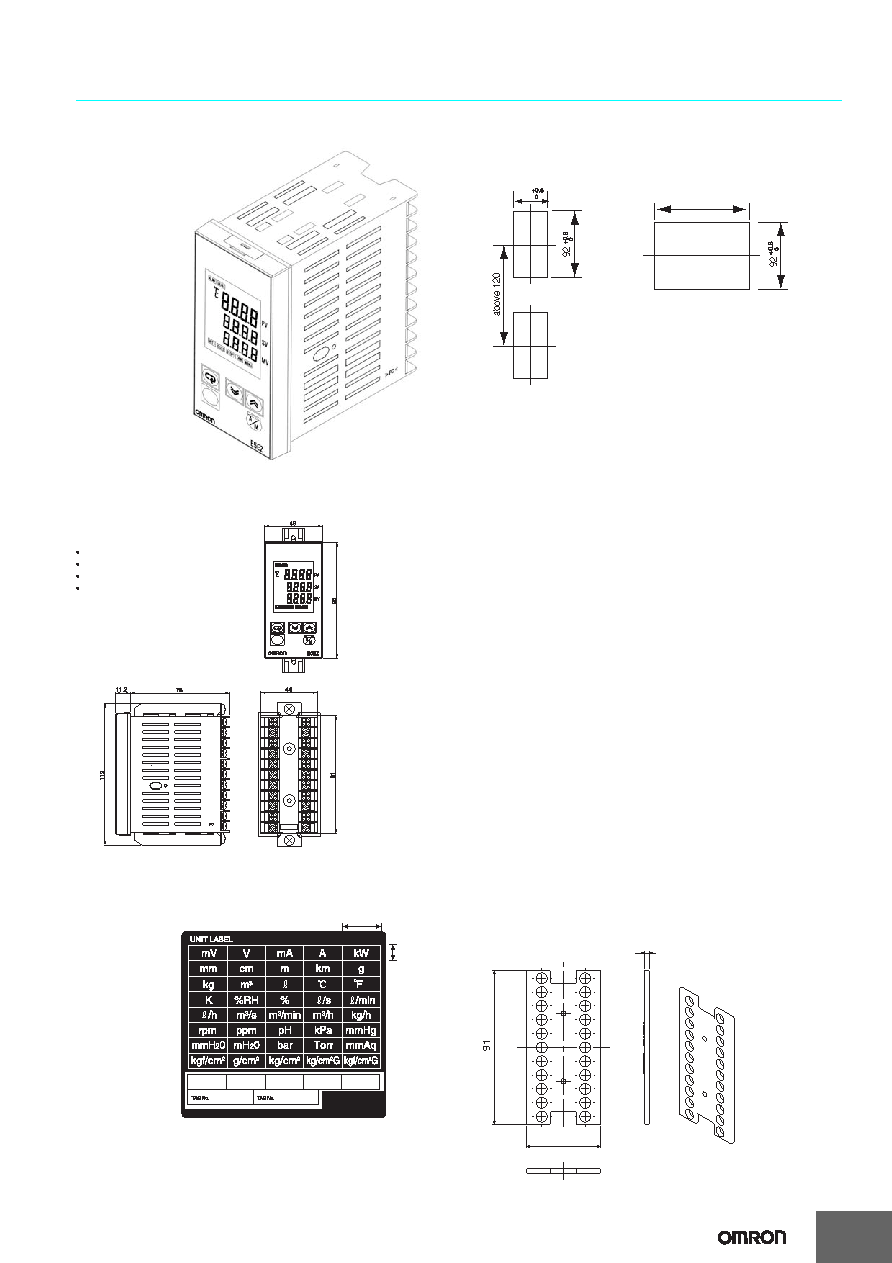

Dimensions

Note: All units are in millimeters unless otherwise indicated.

Package Content

Accessories

Unit Labels (Order Separately)

Terminal Covers (Order Separately)

E53-COV18 (Available only for E5EZ-PRR)

1 Temperature Gauge

2 Metallic Components For Installation

1 Operating Manual

1 Quality Certificate

1 Temperature Gauge

2 Metallic Components For Installation

1 Operating Manual

1 Quality Certificate

During removal, please use a screwdriver

to remove the clips on the top and bottom

of the front covering panel, and then

remove the temperature gauge's front

panel.

During removal, please use a screwdriver

to remove the clips on the top and bottom

of the front covering panel, and then

remove the temperature gauge's front

panel.

Mounted Separately

Group Mounted

(48

× number of units −2.5)

+1.0

• Recommended panel thickness is 1 to 8 mm.

• Group mounting is not possible in the vertical

direction. (Maintain the specified mounting

space between Controllers.)

• When two or more Controllers are mounted,

make sure that the surrounding temperature

does not exceed the allowable operating

temperature specified in the specifications.

• Recommended panel thickness is 1 to 8 mm.

• Group mounting is not possible in the vertical

direction. (Maintain the specified mounting

space between Controllers.)

• When two or more Controllers are mounted,

make sure that the surrounding temperature

does not exceed the allowable operating

temperature specified in the specifications.

Panel Cutout

4.8

11.8

Y92S-L1 Type
