Data Sheet
AD7989-1/AD7989-5
EVALUATING AD7989-1/AD7989-5
PERFORMANCE
Other recommended layouts for the AD7989-1/AD7989-5 are
outlined in UG-340, the user guide of the evaluation board for
the AD7989-1/AD7989-5 (EVAL-AD7989-5SDZ). The
evaluation board package includes a fully assembled and tested
evaluation board, the user guide, and software for controlling
the board from a PC via the EVAL-SDP-CB1Z.

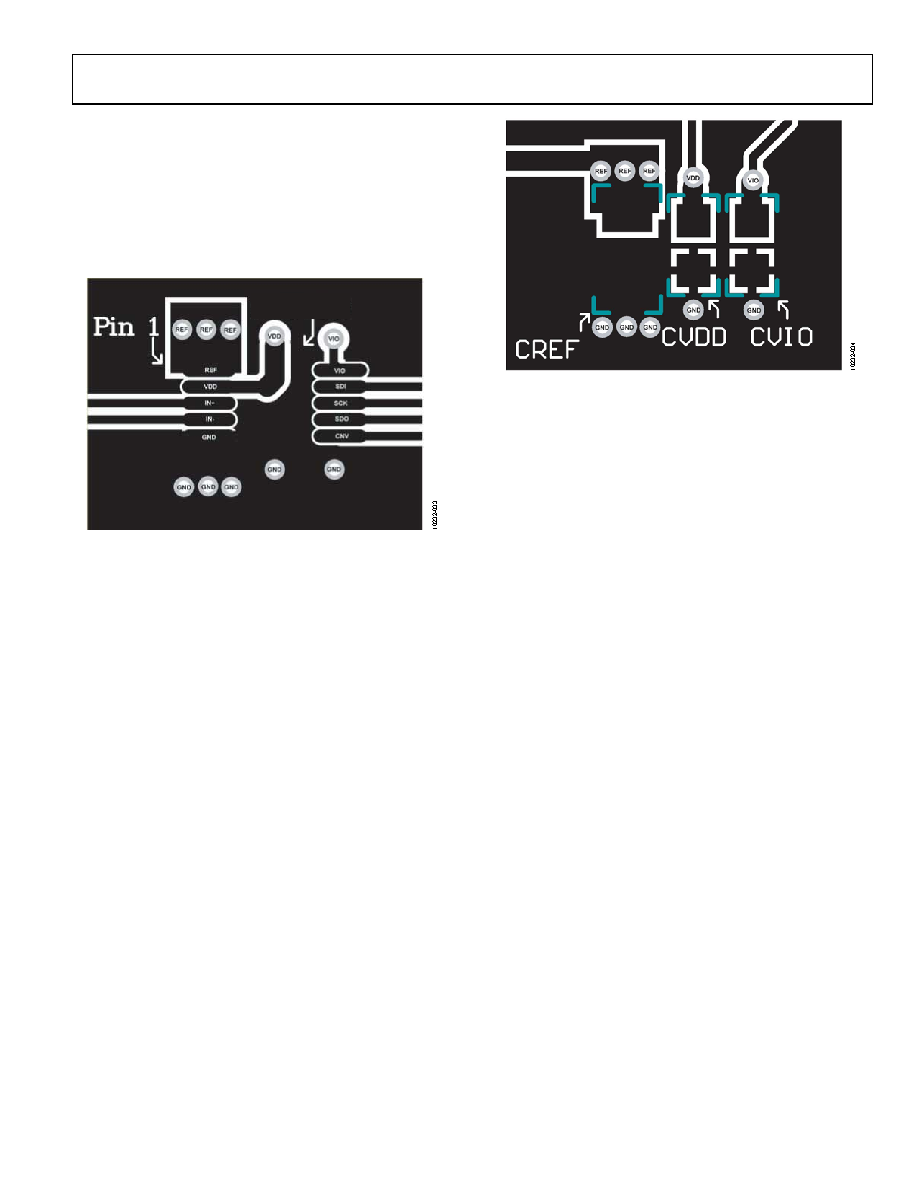

Figure 39. Recommended Layout of the AD7989-1/AD7989-5 (Top Layer)
Figure 40. Recommended Layout of the AD7989-1/AD7989-5 (Bottom Layer)
AD7989-1/
AD7989-5
Rev. A | Page 21 of 24
