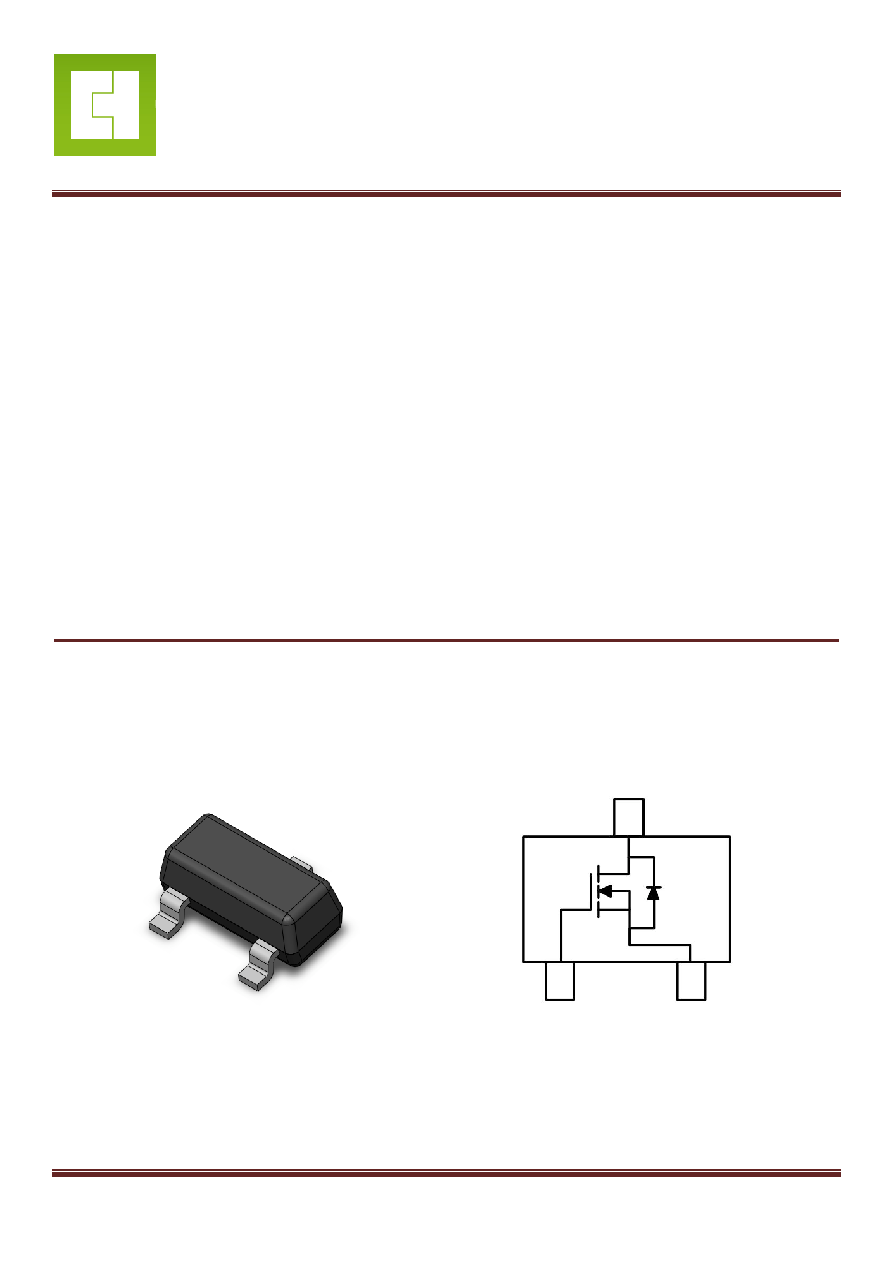

CT2312-R3

N-Channel Enhancement MOSFET

Package Outline

Schematic

Features

• Drain-Source Breakdown Voltage VDSS 20 V

• Drain-Source On-Resistance

RDS(ON) 22m

Ω, at VGS= 4.5V, IDS= 4.5A

RDS(ON) 27m

Ω, at VGS= 2.5V, IDS= 4.0A

• Continuous Drain Current at TA=25℃ ID = 4.5A

• Advanced high cell density Trench Technology

• RoHS Compliance & Halogen Free

Applications

• Power Management

• Portable Equipment

• Load Switch

• DSC

Description

The CT2312-R3 uses high performance Trench

Technology to provide excellent RDS(ON) and low gate

charge which is suitable for most of the synchronous

buck converter applications .

Gate

Source

Drain

Gate

Drain

Source
