090616/4

LEM reserves the right to carry out modifications on its transducers, in order to improve them, without prior notice.

www.lem.com

Page 3/3

Connection

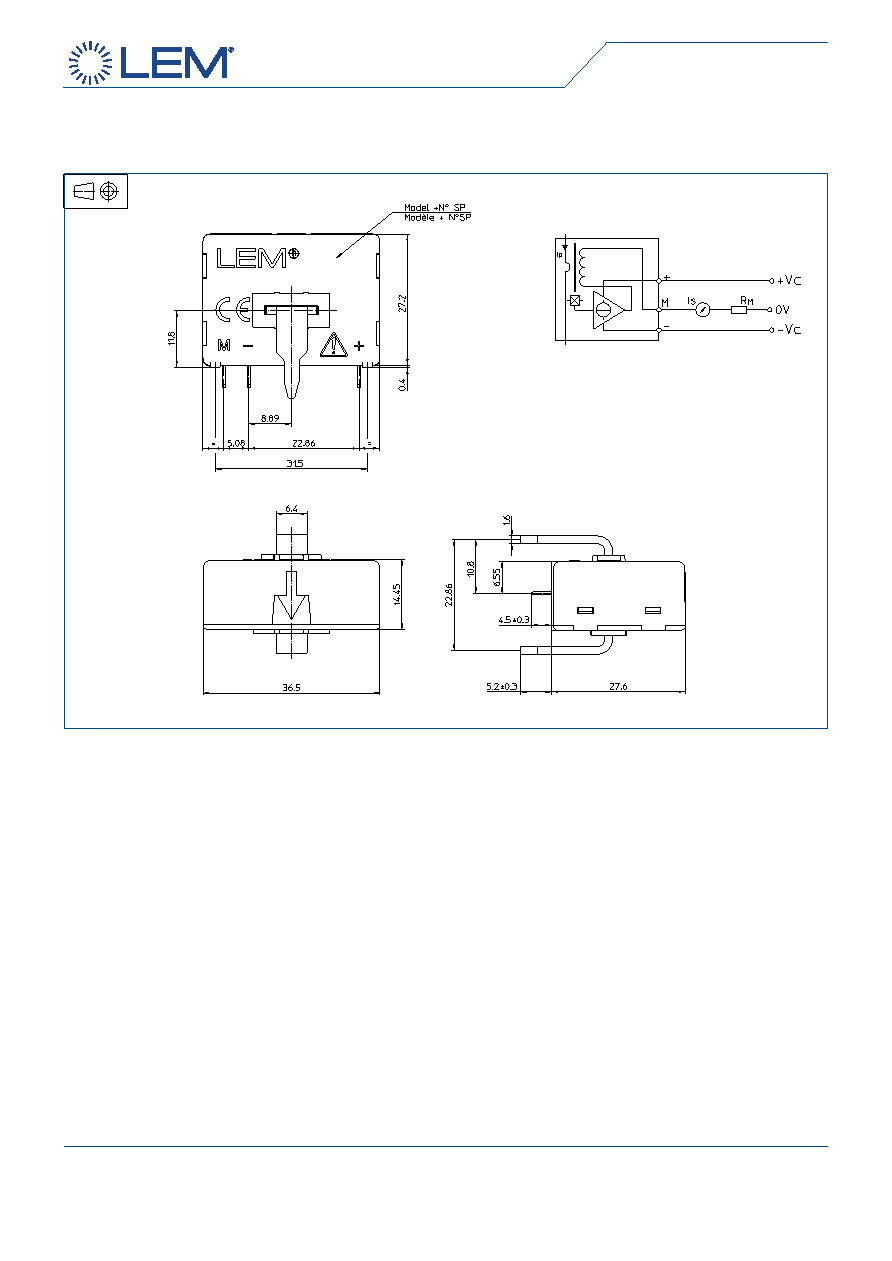

Dimensions LA 55-TP/SP27 (in mm. 1 mm = 0.0394 inch)

Top view

Front view

Left view

Mechanical characteristics

General tolerance

± 0.2 mm

●

Fastening & connection of primary

bus bar

●

6.4 x 1.6 mm

Recommended PCB hole

3.8 mm

Fastening & connection of secondary 3 pins

●

0.63 x 0.56 mm

Recommended PCB hole

0.9 mm

●

Remarks

●

S is positive when IP flows in the direction of the arrow.

Temperature of the primary conductor should not exceed

●

100°C.

Secondary terminals

Terminal + : supply voltage + 12 .. 15 V

Terminal - : supply voltage - 12 .. 15 V

Terminal M : measure
