SS2509-R

Hall Latch - High Sensitivity

1

V3.10

Dec 1, 2014

Packages

Features and Benefits

3 pin TSOT23 (suffix ST)

3 pin SIP (suffix UA)

–

Wide operating voltage range from 3.5V to

24V

–

High magnetic sensitivity

–

CMOS technology

–

Low current consumption

–

Chopper-stabilized amplifier stage

–

Output driver with internal pull-up resistor

–

Superior temperature stability

–

Insensitive to physical stress

–

TSOT23 3L or flat SIP 3L

both RoHS Compliant packages

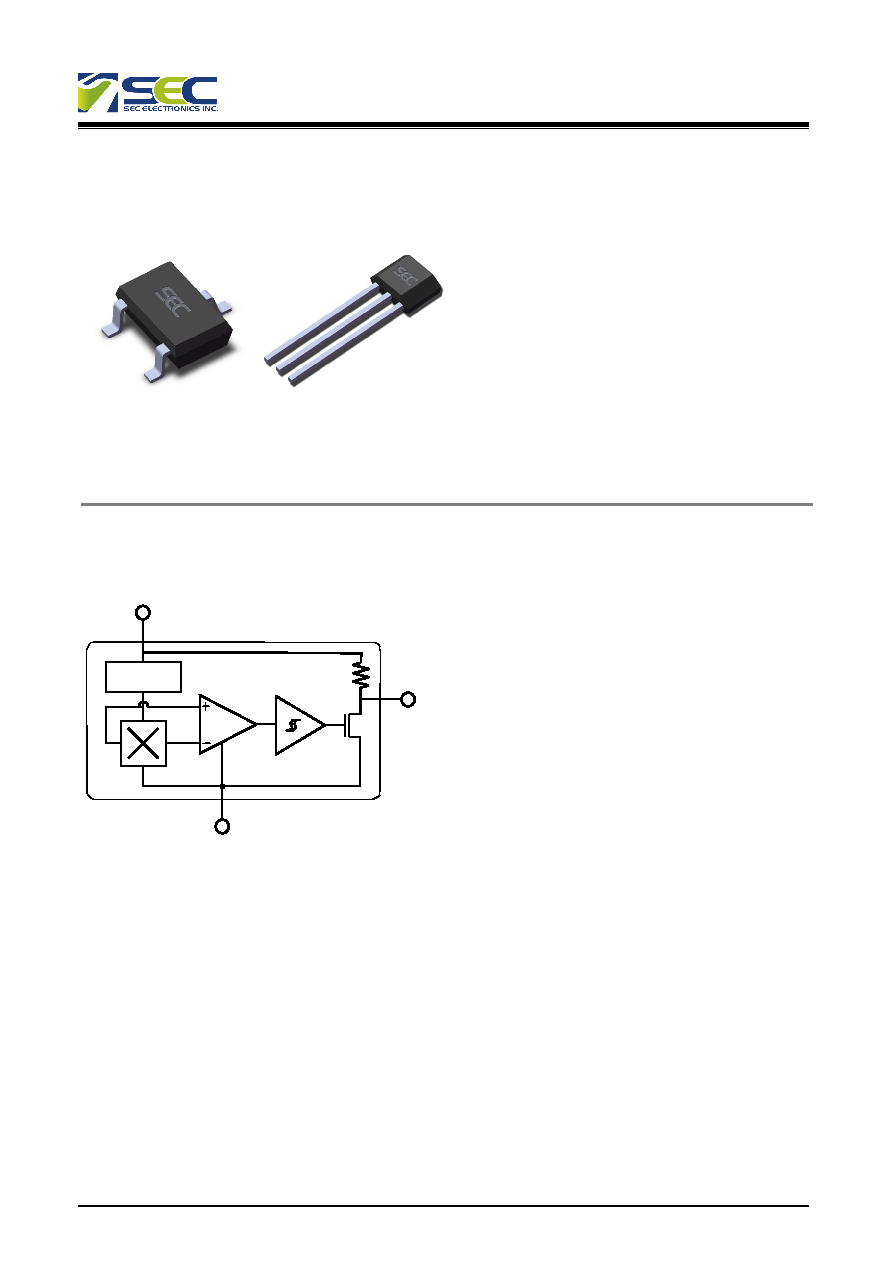

Functional Block Diagram

Application Examples

–

Automotive, Consumer and Industrial

–

Solid-state switch

–

Brushless DC motor commutation

–

Speed detection

–

Angular position detection

–

Linear position detection

–

Proximity detection

General Description

The SS2509-R is a bipolar Hall effect sensor IC fab-

ricated from mixed signal CMOS technology. The

device integrates a voltage regulator, Hall sensor with

dynamic offset cancellation system, Schmitt trigger

and an output driver with internal pull-up resistor, all

in a single package.

It incorporates advanced chopper stabilization techniques to provide accurate and stable magnetic switch points.

There are many applications for this HED – Hall Electronic Device - in addition to those listed above. The design,

specifications and performance have been optimized for commutation applications in 5V and 12V brushless DC

motors.

Thanks to its wide operating voltage range and extended choice of temperature range, it is quite suitable for use in

automotive, industrial and consumer applications.

The device is delivered in a Thin Small Outline Transistor (TSOT) for surface mount process or in a Plastic Single

In Line (SIP 3L flat) for through- hole mount. Both 3-lead packages are RoHS compliant.

OUT

Voltage

Regulator

Chopper

Hall

Plate

GND

UA Package

SO Package

Pin 2 – GND

Pin 2 – OUT

Pin 3 – OUT

Pin 3 – GND
