SS2509-R

Hall Latch - High Sensitivity

V3.10

Dec 1, 2014

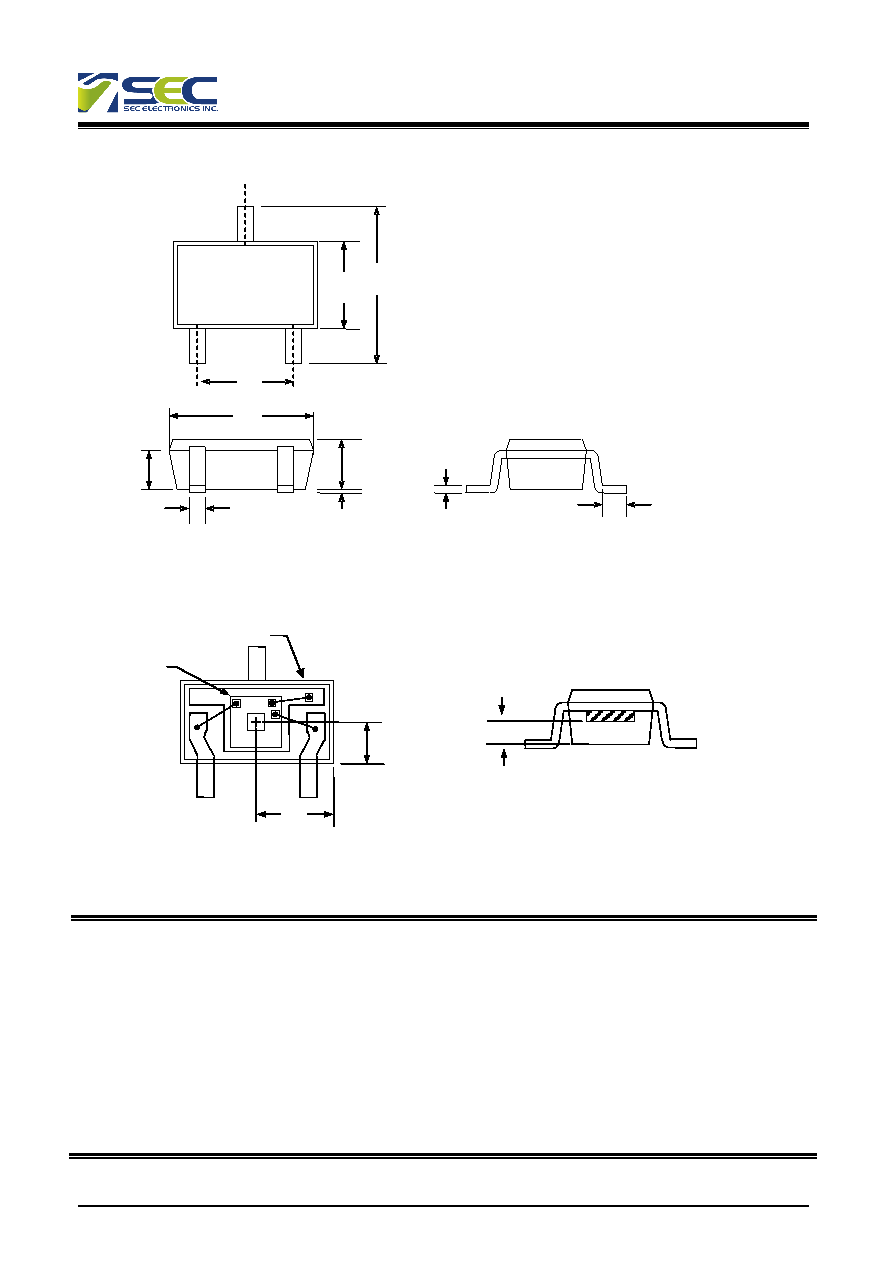

Package ST, 3-Pin TSOT-23:

TSOT-23 Package Hall Location:

Ordering Information

Part No.

Pb-free

Temperature Code

Package Code

Packing

SS2509-RESTT

YES

-40°C to 85°C

TSOT-23

7-in. reel, 3000 pieces/reel

SS2509-REUA

YES

-40°C to 85°C

TO-92

Bulk, 1000 pieces/bag

SS2509-RKSTT

YES

-40°C to 125°C

TSOT-23

7-in. reel, 3000 pieces/reel

SS2509-RKUA

YES

-40°C to 125°C

TO-92

Bulk, 1000 pieces/bag

SS2509-RLSTT

YES

-40°C to 150°C

TSOT-23

7-in. reel, 3000 pieces/reel

SS2509-RLUA

YES

-40°C to 150°C

TO-92

Bulk, 1000 pieces/bag

0.36

0.46

0.95

1.50

Chip

Bottom View of TSOT-23 Package

2.82

3.02

0.70

0.90

0.70

0.80

0.00

0.10

0.35

0.50

0.08

0.20

Min

2.65

2.95

1.60

1.70

2.10

Top

Side Vie

End

Notes

1). PINOUT:

Pin 1 VDD

Pin 2 Output

Pin 3 GND

2). All dimensions are in millimeters;
