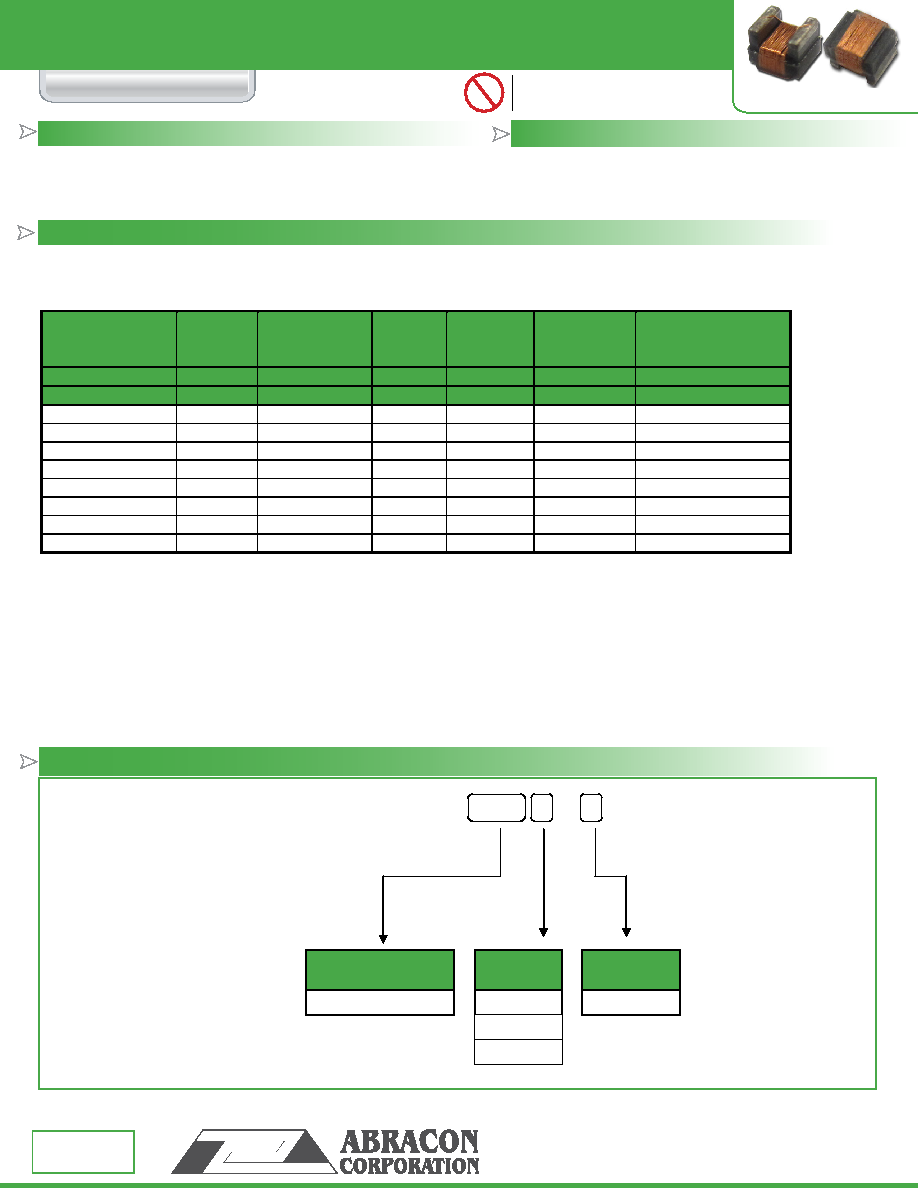

FERRITE WIRE WOUND INDUCTORS

AISC-0402F

STANDARD SPECIFICATIONS:

APPLICATIONS:

FEATURES:

1.1 x 0.6 x 0.6mm

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

ABRACON IS

ISO 9001 :2008

CERTIFIED

30332 Esperanza, Rancho Santa Margarita, California92688

Visit www.abracon.com for Terms & Conditions of Sale

• Camcorders, LED TVs and other electronic devices

• Higher inductance values than other 0402 inductors

• Ferrite construction for high current rating

• Inductance values: 18nH – 200nH; 5% tolerance available

Revised: 09.29.14

Operating Temperature: -40ºC to +85ºC

Storage Temperature: -10ºC to +40ºC, 70% RH max. in tape and reel

PART NUMBER IDENTIFICATION

Part Number

AISC-0402F-

Inductance Code

Inductance

Tolerance

L Test

Freq.

Max. DC

Resistance

Max. Rated

Current

Min. Self-resonant

Frequency

Units

nH

-

MHz

Ω

mA

MHz

Symbol

L

-

Freq.

DCR

Ir

S.R.F

AISC-0402F-18N

18

J, K, M

100

0.046

1400

3000

AISC-0402F-33N

33

J, K, M

100

0.065

1300

1800

AISC-0402F-48N

48

J, K, M

100

0.078

1100

1400

AISC-0402F-70N

70

J, K, M

100

0.120

820

1300

AISC-0402F-96N

96

J, K, M

100

0.160

730

1100

AISC-0402F-R13

130

J, K, M

100

0.230

640

1000

AISC-0402F-R16

160

J, K, M

100

0.330

480

900

AISC-0402F-R22

200

J, K, M

100

0.470

390

800

Test Equipment

Inductance (L): Agilent 4287A+Agilent 16197A or equivalent, -13dBm or 10mA

DC Resistance (DCR): HIOKI 3540 or equivalent

Q Factor (Q): Agilent4287A+Agilent16197A or equivalent, -13dBm or 10mA

Self-Resonant Frequency (SRF): Agilent4991B+Agilent16197A and HP 8753E or equivalent, -20dBm or

50mV

chip initial surface temperature

AISC-0402F-

-

Inductance Code

Tolerance

Code

Packaging

Please refer to the Table

J: ± 5%

T: 10kpcs/reel

K: ± 10%

M: ± 20%
