FERRITE WIRE WOUND INDUCTORS

AISC-0402F

1.1 x 0.6 x 0.6mm

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

ABRACON IS

ISO 9001 :2008

CERTIFIED

30332 Esperanza, Rancho Santa Margarita, California92688

tel 949-546-8000 | fax 949-546-8001| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale

Revised: 09.29.14

Pb RoHS/RoHS II Compliant

Dimension: mm

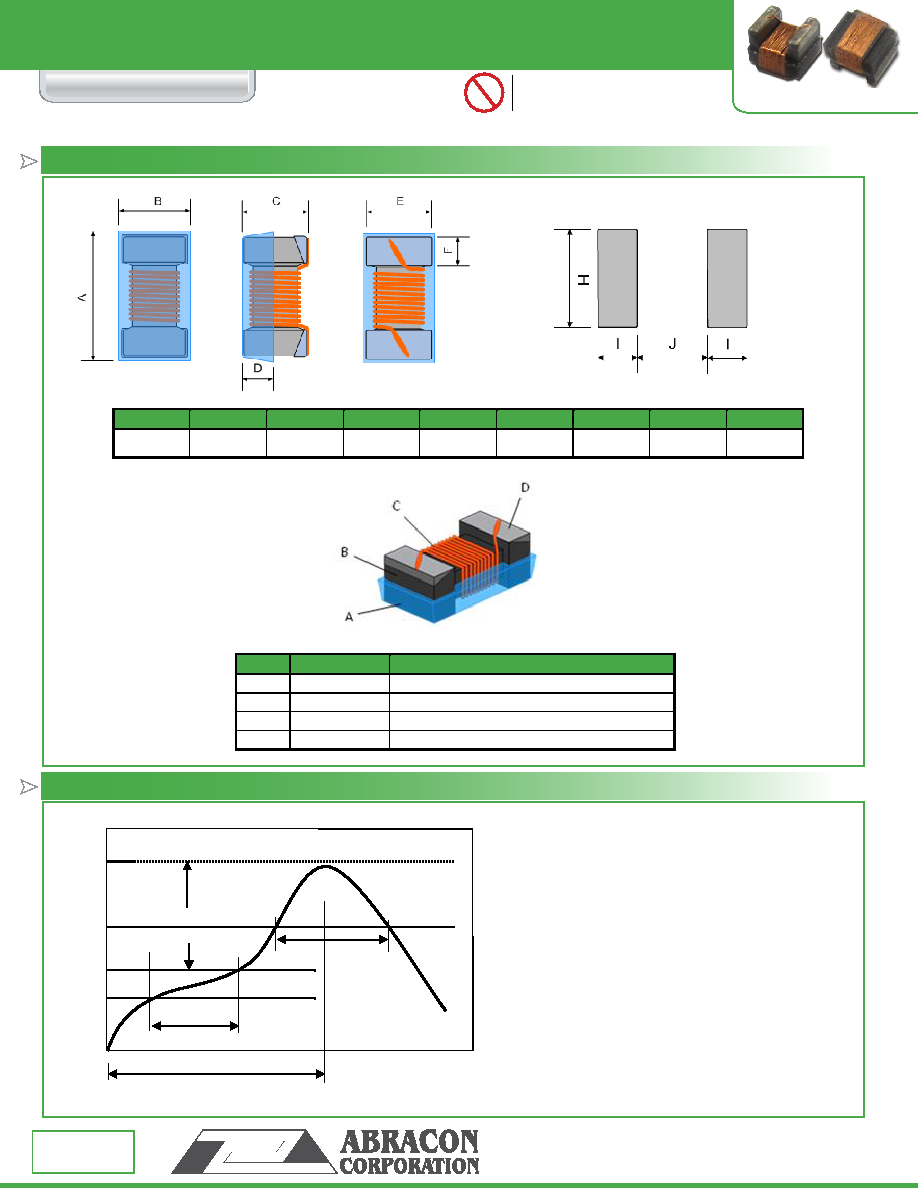

OUTLINE DIMENSIONS:

Materials

• Preheat condition: 150 ~200oC/60~120sec.

• Allowed time above 217 oC: 60~90sec.

• Max temp: 260 oC

• Max time at max temp: 10sec.

• Solder paste: Sn/3.0Ag/0.5Cu

• Allowed Reflow time: 2x max

260ºC

∼90sec .

∼120sec .

150 ºC

200 ºC

217 ºC

Max Ramp Up Rate=3 ºC/sec .

Max Ramp Down Rate=6 ºC/sec .

Time 25 ºC to Peak =8 min max

25ºC

Peak 260

ºC max

REFLOW PROFILE:

D Typ.

H REF.

I REF.

J REF.

1.1±0.1 0.6±0.1 0.6±0.1

0.25

0.5±0.1 0.2±0.1

0.65

0.35

0.50

No.

Components

Material

Coating

Ultraviolet epoxy resin

Core

Ferrite

Wire

Polyurethane system enameled copper wire

Electrodes

Ag-Pd with Ni and Sn plating
