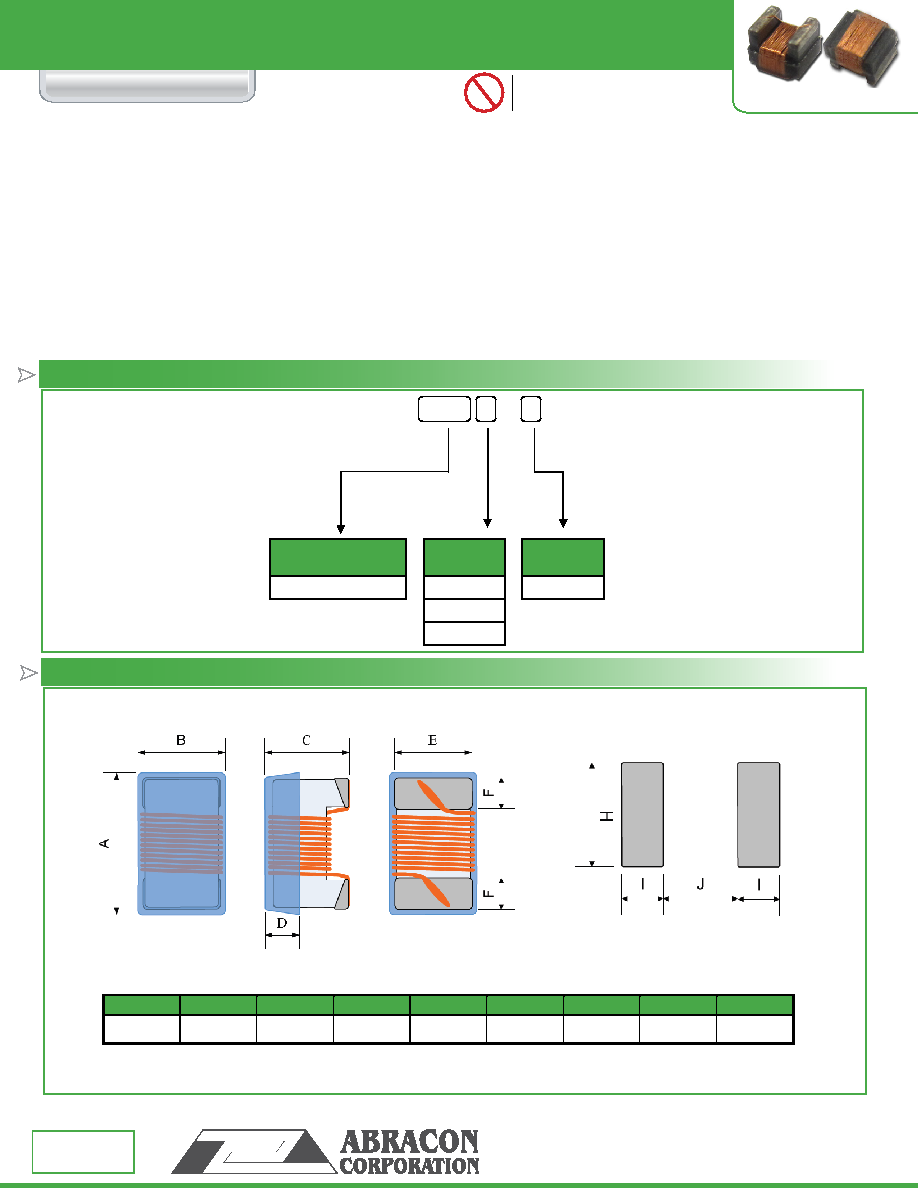

FERRITE WIRE WOUND INDUCTORS

AISC-0603F

1.6 x 1.0 x 1.0mm

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

ABRACON IS

ISO 9001 :2008

CERTIFIED

30332 Esperanza, Rancho Santa Margarita, California92688

Visit www.abracon.com for Terms & Conditions of Sale

Revised: 10.11.13

Test Equipment

Inductance (L): Agilent 4287A+Agilent 16197A or equivalent, -13dBm or 10mA

DC Resistance (DCR): HIOKI 3540 or equivalent

Q Factor (Q): Agilent4287A+Agilent16197A or equivalent, -13dBm or 10mA

Self-Resonant Frequency (SRF): Agilent4991B+Agilent16197A and HP 8753E or equivalent, -20dBm or

50mV

chip initial surface temperature (Ta)

Operating Temperature: -40ºC to +85ºC

Storage Temperature: -10ºC to +40ºC, 70% RH max. in tape and reel

AISC-0603F-

-

Inductance Code

Tolerance

Code

Packaging

Please refer to the Table

J: ± 5%

T: 3kpcs/reel

K: ± 10%

M: ± 20%

PART NUMBER IDENTIFICATION

Dimension: mm

A

B

C

D REF.

E REF.

F REF.

H REF.

I REF.

J REF.

1.6±0.2

1.0±0.2

1.0±0.2

0.38

0.76

0.30

1.02

0.64

0.64

OUTLINE DIMENSIONS:
