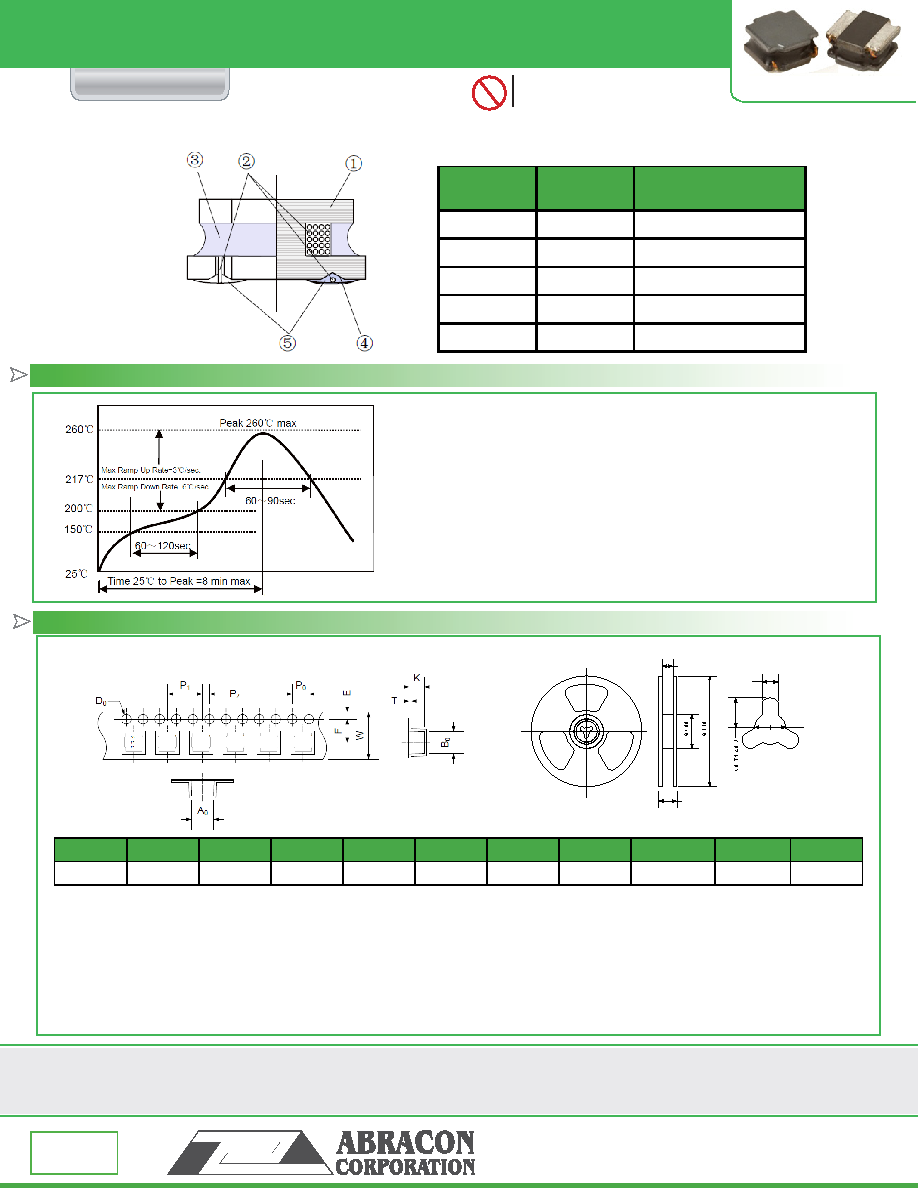

ASPI-4030S

30332 Esperanza, Rancho Santa Margarita, California92688

Revised: 03.09.13

Visit www.abracon.com for Terms & Conditions of Sale

Wire Wound Magnetically Shielded SMD Power Inductor

:

4.0 x 4.0 x 3.0 mm

ABRACON IS

ISO9001:2008

CERTIFIED

REFLOW PROFILE:

:

Dimensions: mm

TAPE & REEL:

Materials

No

Components

Material

1

Ferrite Core

Ni-Zn Ferrite

2

Wire

Polyurethane System enameled copper

wire

3

Magnetic Glue

Epoxy resin and magnetic powder

4

Plating Electrodes

Plating: Ag/Ni/Sn

5

Outer Electrodes

Top surface solder coating:

Sn96.5%/Ag3%/Cu0.5%

∆

∆ Allowed time above 217˚C: 60~90sec.

∆ Max temp: 260˚C

∆ Max time at max temp: 5sec.

∆ Solder paste: Sn/3.0Ag/0.5Cu

∆ Allowed Reflow time: 2x max

Storage Conditions

a. To maintain the solderability of terminal electrodes and to keep the packing material in good condition, temperature and

humidity in the storage area should be controlled.

c. Even under ideal storage conditions, solderability of products electrodes may decrease as time passes. For this reason, product

should be used with one year from the time of delivery.

d. In case of storage over 12 months, solderability shall be checked before actual usage.

Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where component

failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from

Abracon Corporation is required. Please contact Abracon Corporation for more information.

T: 2,000pcs / reel

A0

B0

W

E

F

P0

P1

P2

D0

T

K

4.3±0.1

4.3±0.1

12.0±0.3

1.75±0.1

5.5±0.1

4.0±0.1

8.0±0.1

2.0±0.1

1.5+0.1/-0.0

0.4±0.03

3.2±0.1

F Ig . 9 .1 .3

M a x < 1 8 .4 m m

1 2 .4 + 0 .2 /0 .0 m m

Ø 1 3 .0 + 0 .2 /-0 .0

2 .3 ± 0 .2
