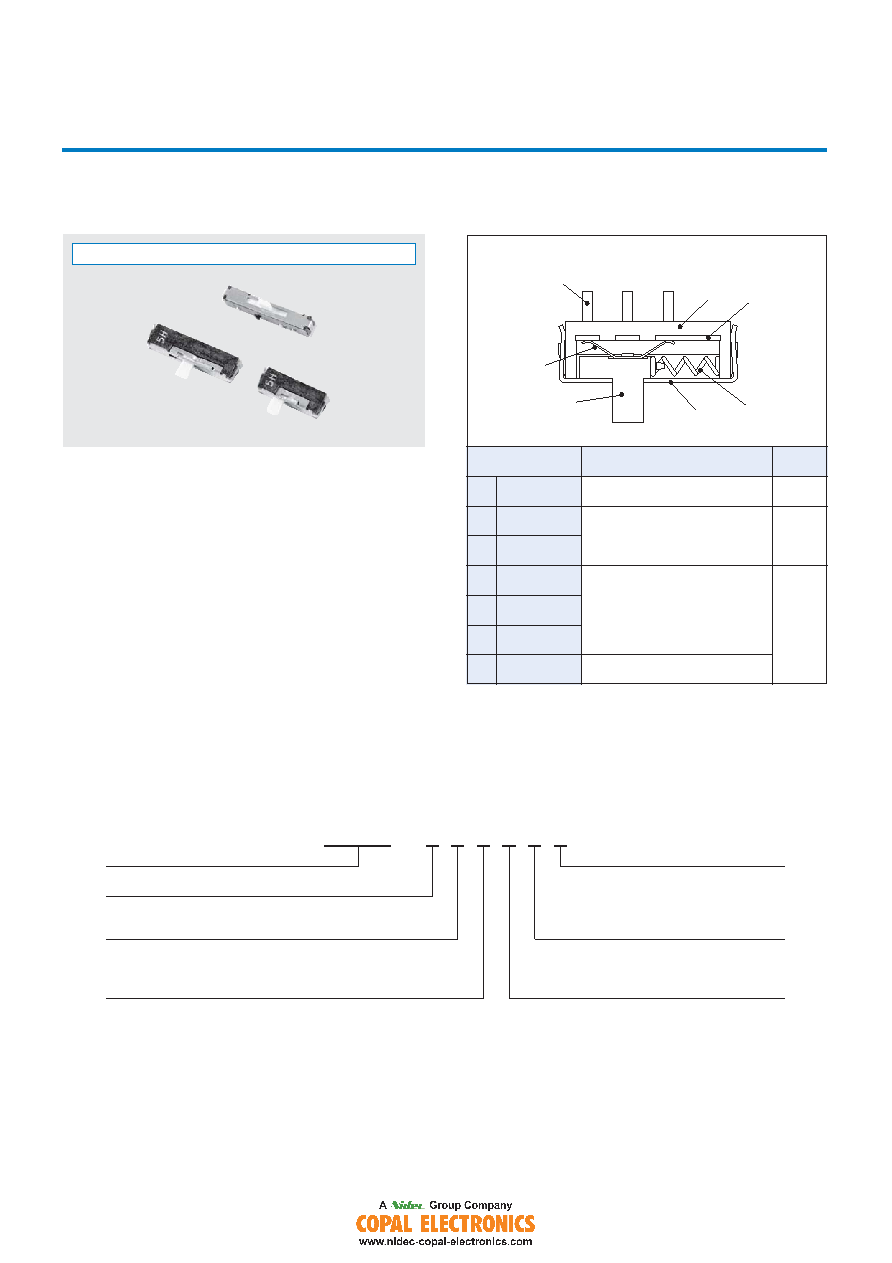

1 / 5 page

※ Please refer to the LIST OF PART NUMBERS when placing orders.

O Low-profile of 2 mm

O Self-return type available

O RoHS compliant

■ FEATURES

INTERNAL STRUCTURE

Part name

①

②

③

④

⑤

⑥

⑦

Cover

Slider

Housing

Slider contact

Fixed contact

Terminal pin

Return spring

Material

Flammability

UL94V-0

—

Stainless steel (SUS 304)

Liquid Crystal polymer

Copper alloy, Gold-plated

SWP

■ PART NUMBER DESIGNATION

C S S - 1 2 1 1 T B

Series name

No. of poles

1：1 pole

No. of contacts

2：2 contacts

3：3 contacts

Setting position

0：Top setting

1：Side setting

Shape of terminal

B：Gull wing

C：Through hole pins

Form of packaging

T：Taping

M

：Magazine

Self-return function

0：No function

1：Single

2：Double

CSS

COMPACT SLIDE SWITCHES

O Mobile stereo · LCD TV · Camcorder

■ APPLICATIONS

RoHS compliant

③

⑤

⑦

①

②

④

⑥
