The PCI Express electrical test software

provides flexibility in your test setup. It

guides you to make connection changes

with hookup diagrams when the tests you

select require it. All PCI Express electrical

compliance tests you perform are based

on the official PCI-SIG approved set of test

fixtures. The compliance fixtures include

the Compliance Base Board (CBB2) for

add-in card testing, and the Compliance

Load Board (CLB2) for motherboard

or system testing. Connection to the

compliance test fixtures is selectable

between SMA/SMP cables or Keysight

InfiniiMax active differential probes.

Configurability and Guided Connections

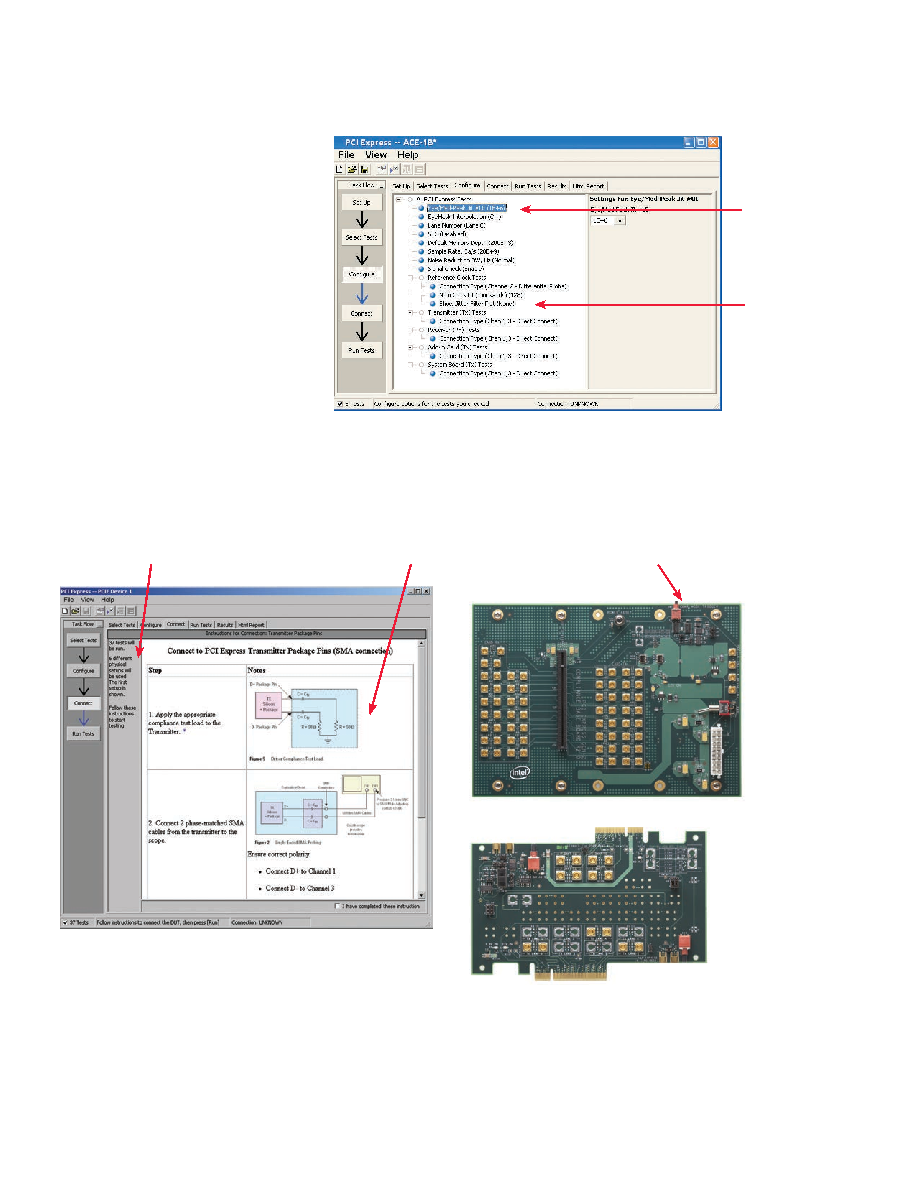

Figure 6. In configuring the tests, you specify the device to test, its configuration, and how the

oscilloscope is connected.

Figure 7. When you make multiple tests where the connections must

be changed, you are prompted with connection diagrams and/or

photographs.

Figure 8. The PCI-SIG Compliance Base Board (CBB2) for Gen2

add-in card testing, and the Compliance Load Board (CLB2) for Gen2

motherboard or host system testing.

Specify 1 million UI (or

more) for your jitter

measurements

Show the spectral

response of your

reference clock in the

critical 1.5 to 22-MHz

region

Toggle circuit to switch between Gen1

(2.5 GBit/s) and Gen2 (50 GBit/s)

You are prompted to make the appropriate

connections for the set of tests

If more than one test setup connection

is required, you will be notified here
