Axial Lead Schottky Diode

Rev. V1

1N5819

3

3

MACOM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.

Visit www.macom.com for additional data sheets and product information.

For further information and support please visit:

https://www.macom.com/support

3

Profile Feature

Sn-Pb Eutectic Assembly

Pb-Free Assembly

Average ramp-up rate (TL to TP)

3°C/second maximum

3°C/second maximum

Preheat

- Temperature Minimum (TSMIN)

- Temperature Maximum (TSMAX)

- Time (Minimum to maximum) (ts)

100°C

150°C

60-120 seconds

150°C

200°C

60-180 seconds

TSMAX to TL

- Ramp-up Rate

—

3°C/second maximum

Time Maintained above:

- Temperature (TL)

- Time (tL)

183°C

60-150 seconds

217°C

60-150 seconds

Peak Temperature (TP)

225 +0 / -5°C

260 +0 / -5°C

Time within 5°C of actual Peak Tempera-

ture (TP)

10-30 seconds

20-40 seconds

Ramp-down Rate

6°C/second maximum

6°C/second maximum

Time 25°C to Peak Temperature

6 minutes maximum

8 minutes maximum

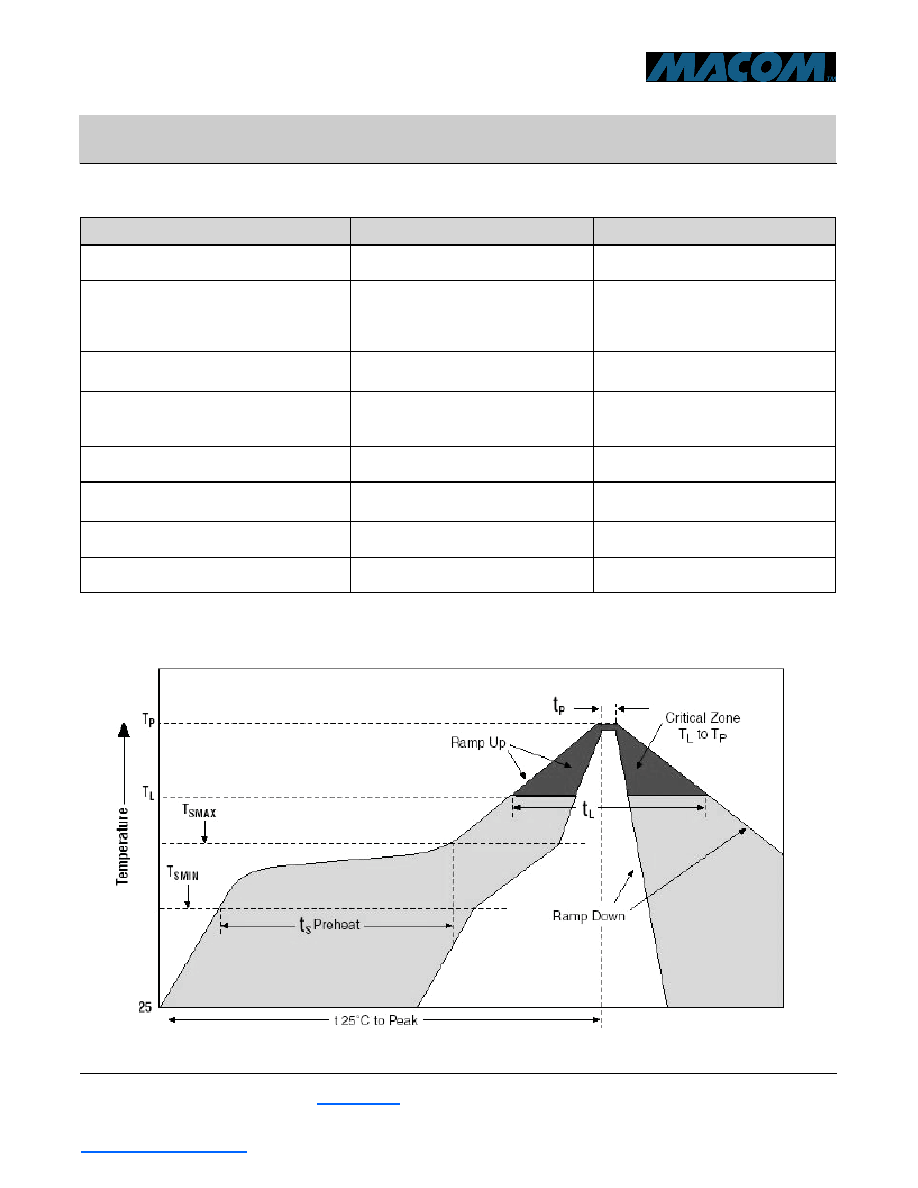

Time-Temperature Profile for Sn 60 / Pb 40 or RoHS Type Solders

Solder Re-Flow Time-Temperature Function
