SP2T PIN Diode Switch
Rev. V1
MSW200x-200
10
10
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
DS-xxxxxxx
10

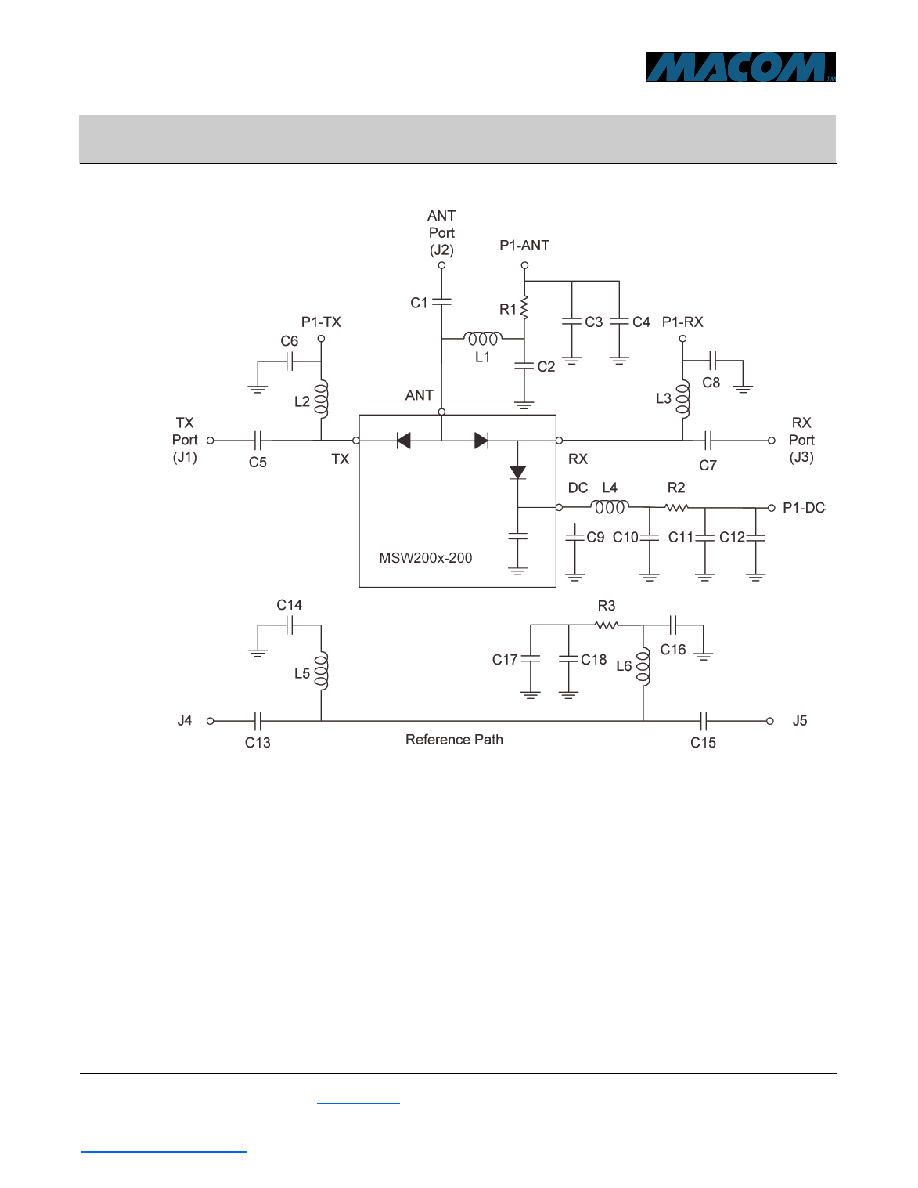

SP2T Switch Evaluation Board Schematic
The evaluation boards for the MSW200x-200 family
of surface mount silicon PIN diode SP2T T-R
switches allow the full exercise of each switch for
small signal performance analysis, as well as for
large signal operation with maximum input signal
power of 45 dBm (CW or peak power). Each
evaluation board includes the appropriate MSW200x
-200 switch, DC blocking capacitors at each RF port
and bias decoupling networks at each RF port which
allow DC or low frequency control signals to be
applied to the switch.
Three complementary control signals are required
for proper operation. Bias voltages are applied to the
TX bias port, RX bias port and the DC bias port to
control the state of the switch. A bias voltage of 5 V
must be applied to the Ant Bias (pin 3 of multi-pin
connector P1) port whenever the switch is in
operation.
