Physical Dimensions and Mounting Information

3.1 Housing

The SDP1000 / SDP2000 differential pressure sensor

is mounted in chemically inert PPS housing. The

rugged package has been designed to withstand

continuous overpressures of at least 1 bar (14.5 PSI).

Burst pressure is > 2 bar (29 PSI)

The physical dimensions and mounting information is

given in Figure 4 and 5.

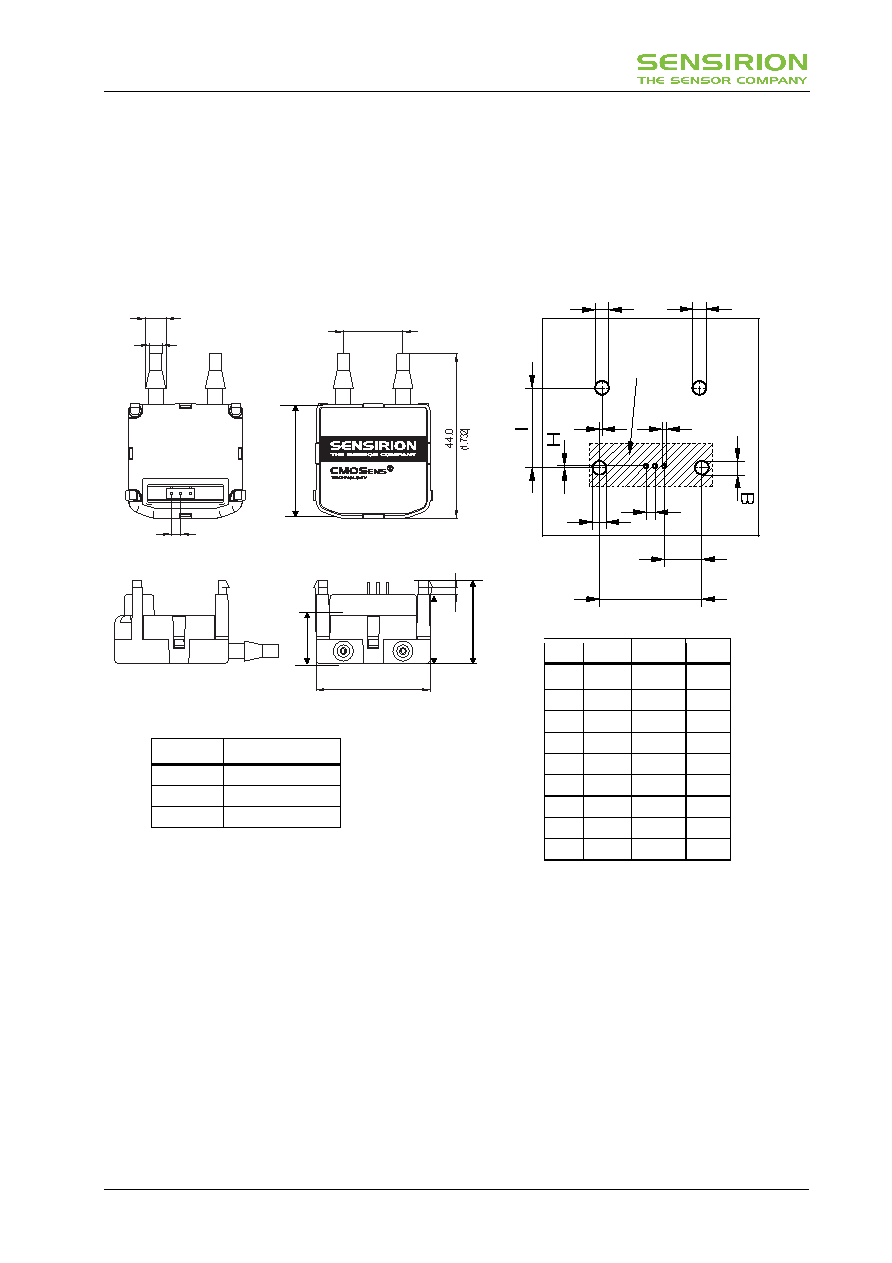

Figure 4: Pin out and physical dimensions in mm (inch). The

drawing is not to scale.

Figure 5: SDP1000 / SDP2000 PCB footprint. The

drawing is not to scale.

3.2 Soldering Instructions

The SDP1000 / SDP2000 differential pressure sensor

can be wave soldered. Direct reflow soldering is not

recommended since it may affect the accuracy.

If reflow soldering is required Sensirion recommends

to use an SMD connector (e.g. type Samtec SSM-

103-L-SV) and to mount the SDP1000 / SDP2000

after soldering.

3.4

(0.134)

5.4

(0.213)

2.54

(0.100)

16.0

(0.630)

SDP100000206-10033-250-001

1.8

(0.071)

30.0

(1.181)

Pin#

1 2 3

No Components

inside this Area

22.1

(0.870)

Dim.

[mm]

[inch]

[mil]

3.00

0.118

118

3.30

0.130

130

1.20

0.047

10.20

0.402

402

28.20

1.110

1110

2.54

0.100

100

0.60

0.024

0.50

0.020

22.70

0.894

894

Pin#

Function

VDD (5 Vdc)

Ground

OUT (0.25…4 Vdc)

18.3

(0.720)

30.5

(1.200)

5.2

(0.205)

13.1

(0.516)
