Data Sheet

AD8250

Rev. C | Page 13 of 24

TIME (µs)

2µs/DIV

20mV/DIV

LOAD

47pF

100pF

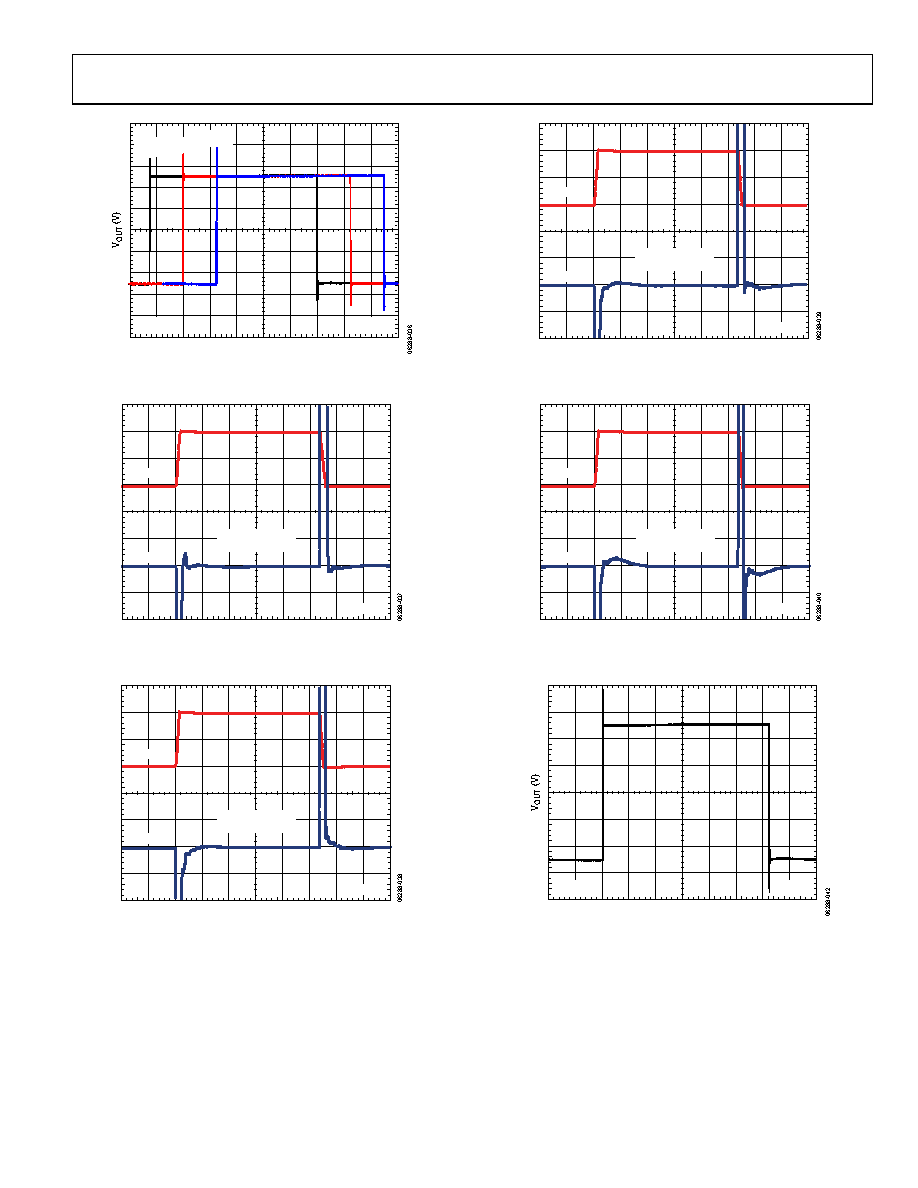

Figure 36. Small Signal Pulse Response for Various Capacitive Loads

5V/DIV

2µs/DIV

TIME (µs)

0.002%/DIV

585ns TO 0.01%

615ns TO 0.001%

Figure 37. Large Signal Pulse Response and Settling Time,

G = 1, RL = 10 kΩ

5V/DIV

2µs/DIV

TIME (µs)

0.002%/DIV

605ns TO 0.01%

635ns TO 0.001%

Figure 38. Large Signal Pulse Response and Settling Time

G = 2, RL = 10 kΩ

5V/DIV

2µs/DIV

TIME (µs)

0.002%/DIV

605ns TO 0.01%

635ns TO 0.001%

Figure 39. Large Signal Pulse Response and Settling Time

G = 5, RL = 10 kΩ

5V/DIV

2µs/DIV

TIME (µs)

0.002%/DIV

648ns TO 0.01%

685ns TO 0.001%

Figure 40. Large Signal Pulse Response and Settling Time

G = 10, RL = 10 kΩ

TIME (µs)

2µs/DIV

20mV/DIV

Figure 41. Small Signal Response

G = 1, RL = 2 kΩ, CL = 100 pF
