REV. 0
Typical Performance Characteristics–ADR510
–3–
TEMPERATURE ( C)
1.002
1.001
1.000
0.999
0.998
0.997
010
20
30
40
50
60
70

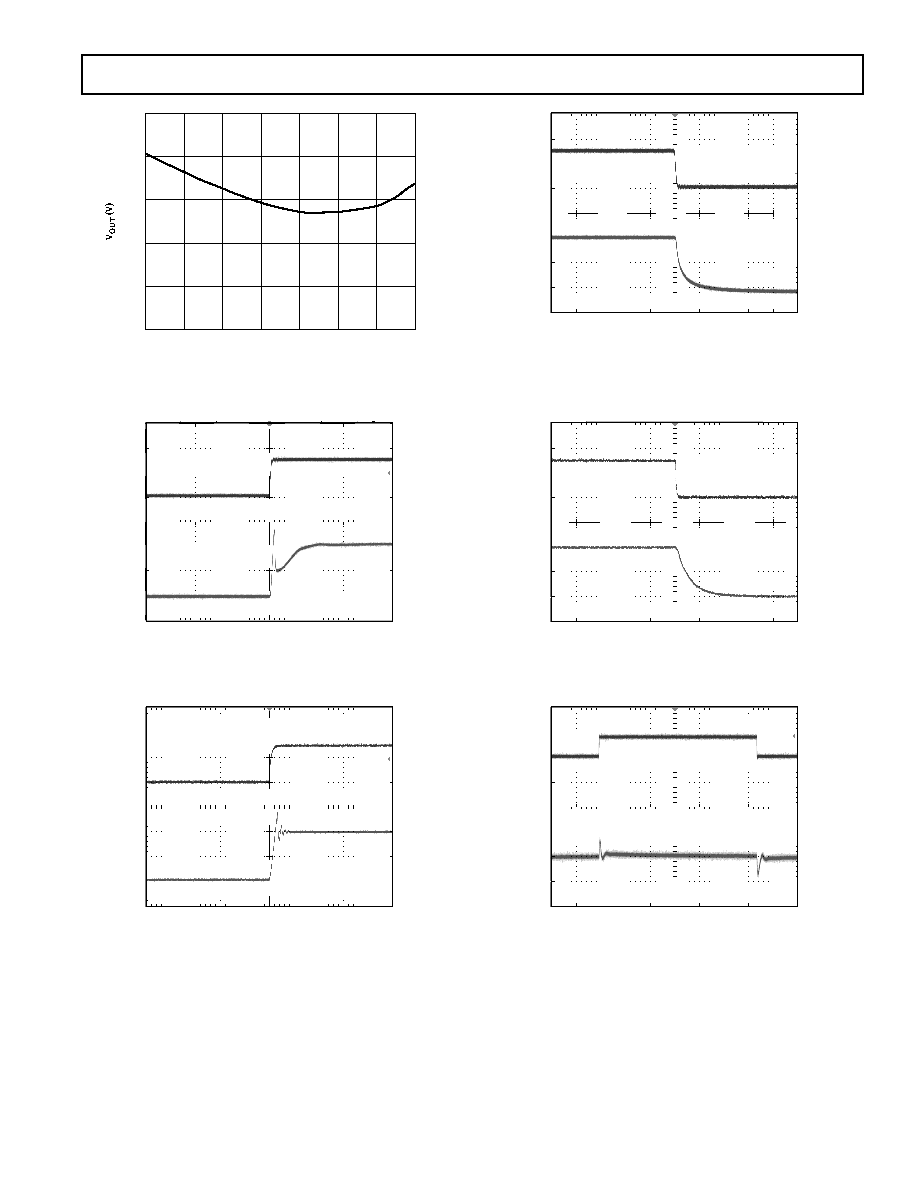

TPC 1. Typical VOUT vs. Temperature
TIME (400ns/DIV)
VIN = 5V/DIV
VOUT = 500 V/DIV
TPC 2. Turn-On Time
TIME (400 s/DIV)
VIN = 5V/DIV
VOUT = 500 V/DIV
TPC 3. Turn-On Time with 1
µF Input Capacitor
TIME (400ns/DIV)
VIN = 5V/DIV
VOUT = 500 V/DIV
TPC 4. Turn-Off Time
TIME (1ms/DIV)
VIN = 5V/DIV
VOUT = 500 V/DIV
TPC 5. Turn-Off Time with 1
µF Input Capacitor
TIME (2 s/DIV)
DIIN = 100 A
VOUT = 50mV/DIV
TPC 6. Output Response to 100
µA Input Current Change
