General Purpose Comparators

Preliminary Technical Data

ADCMP370/ADCMP371

Rev.PrB

Information furnished by Analog Devices is believed to be accurate and reliable.

However, no responsibility is assumed by Analog Devices for its use, nor for any

infringements of patents or other rights of third parties that may result from its use.

Specifications subject to change without notice. No license is granted by implication

or otherwise under any patent or patent rights of Analog Devices. Trademarks and

registered trademarks are the property of their respective companies.

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.

Tel: 781.329.4700

www.analog.com

Fax: 781.326.8703

© 2004 Analog Devices, Inc. All rights reserved.

FEATURES

2.25V to 5.5V Operating Voltage Range

Low Power Consumption (2µA)

Output Stages

ADCMP370: Open-Drain with High Voltage (22V)

Tolerance

ADCMP371: Push-Pull

10nA Input Bias Current

5nA Input Offset Current

6mV Input Offset Voltage

Specified Over -40°C to +125°C Temperature Range

5-Lead SC70 Package

APPLICATIONS

Voltage Detectors

Battery Management Systems

A/D Converters

Low Voltage Applications

Battery Powered Electronics

Portable Equipment

GENERAL DESCRIPTION

The ADCMP370/ADCMP371 are general purpose comparators

with input offset voltages of 6mV (max). High performance

over the -40°C to +125°C temperature range make them

suitable for use in automotive and other thermally harsh

applications, while low power consumption and space efficient

SC70 packaging make them ideal for battery powered portable

equipment.

The ADCMP371 has a push-pull output stage, while the

ADCMP370 has an open-drain output, which can be pulled as

high as 22V through an external resistor.

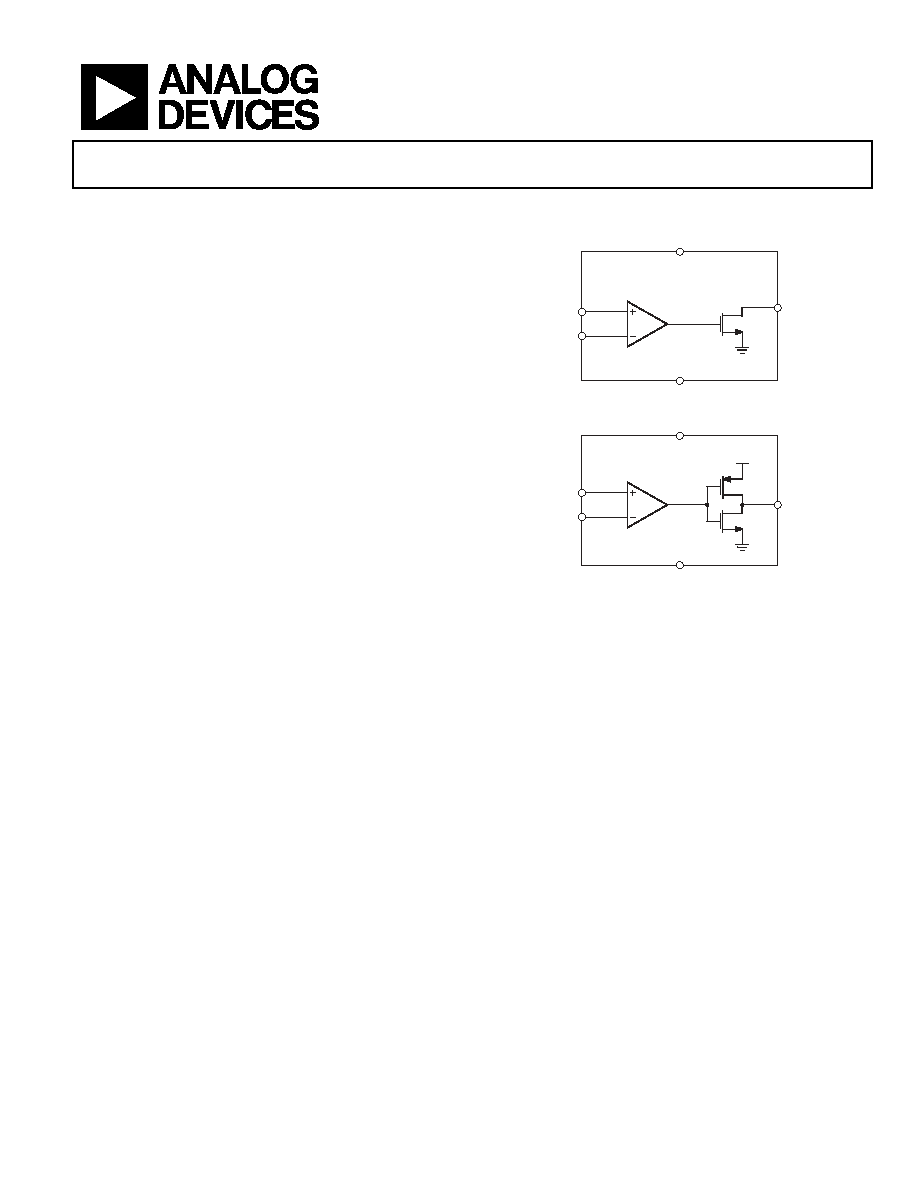

FUNCTIONAL BLOCK DIAGRAMS

IN+

ADM331

GND

IN-

OUT

IN+

ADM332

GND

IN-

OUT

ADCMP370

ADCMP371
