Preliminary Technical Data

ADCMP370/ADCMP371

Rev. PrB | Page 3 of 8

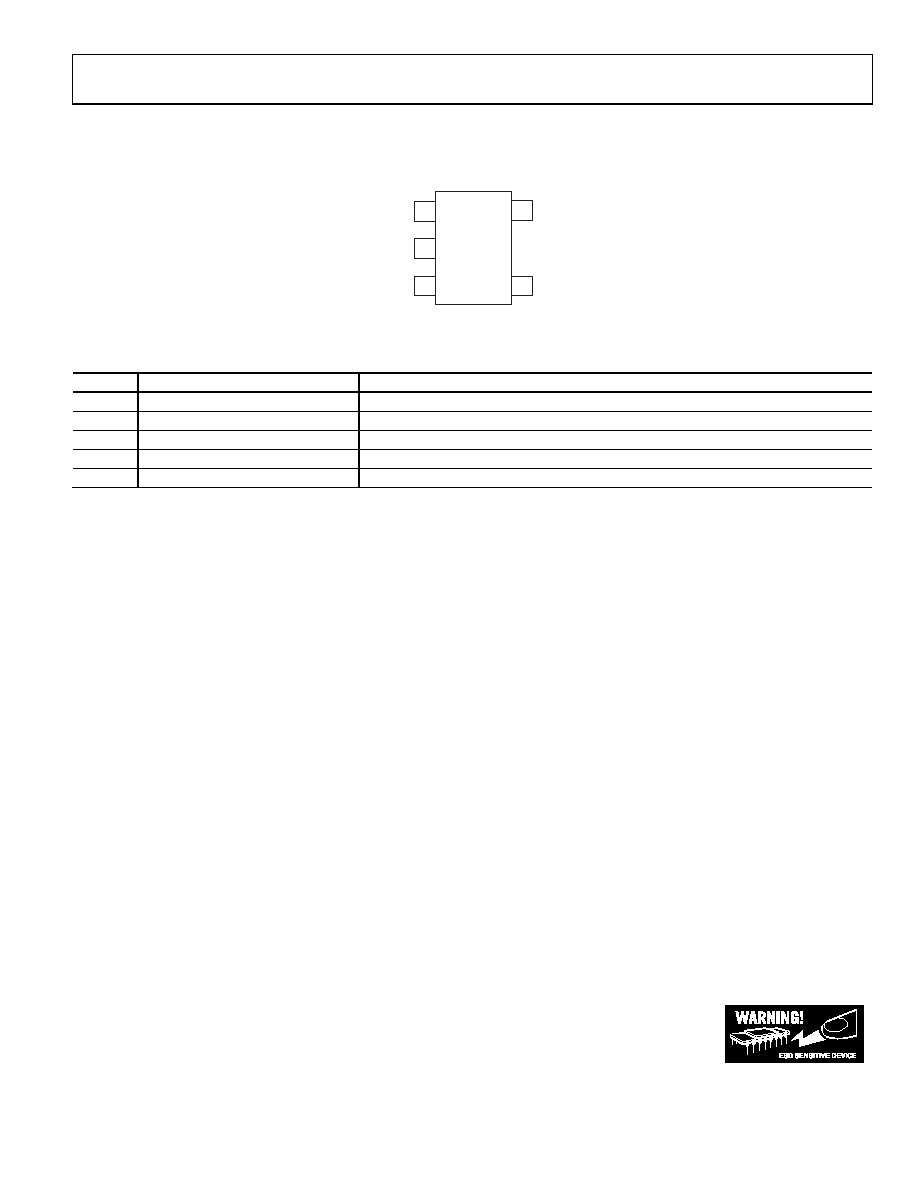

PIN CONFIGURATIONS AND FUNCTIONAL DESCRIPTIONS

1

2

34

GND

IN+

OUT

IN-

ADM331/

ADM332

Table 4. Pin Functional Descriptions

Pin No.

Name

Description

1

IN+

Non-Inverting Input

2

GND

Ground

3

IN-

Inverting Input

4

OUT

Comparator Output. Open-Drain for ADCMP370. Push-Pull for ADCMP371.

5

Power Supply

ESD CAUTION

`

ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the

human body and test equipment and can discharge without detection. Although this product features

proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy

electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance

degradation or loss of functionality.

ADCMP371

ADCMP370/
