12 / 48 page

Electrical characteristics

TS4621B

12/48

Doc ID 022194 Rev 2

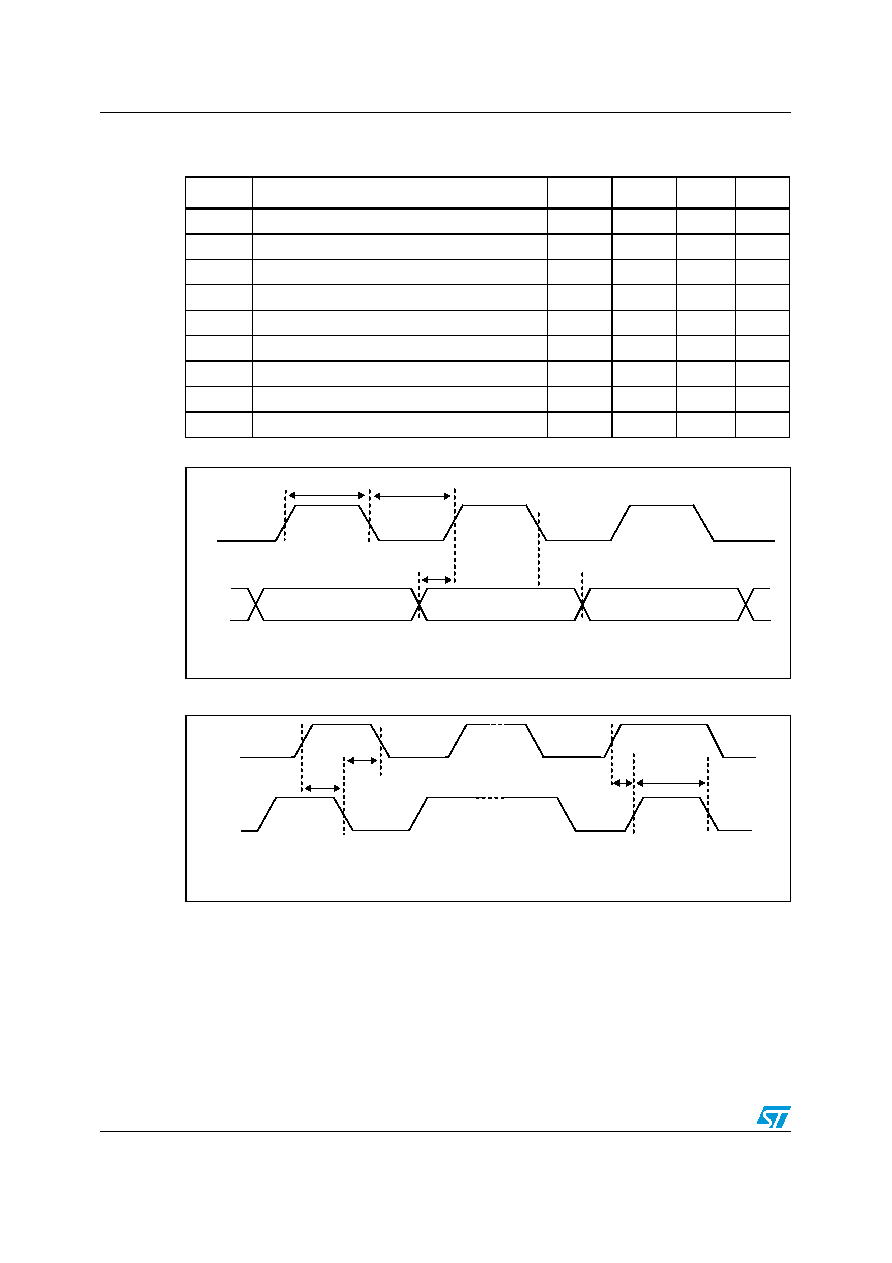

Figure 2.

SCL and SDA timing diagram

Figure 3.

Start and stop condition timing diagram

Table 7.

Timing characteristics of the I²C interface for I²C interface signals over

recommended operating conditions (unless otherwise specified)

Symbol

Parameter

Min.

Typ.

Max.

Unit

fSCL

Frequency, SCL

400

kHz

td(H)

Pulse duration, SCL high

0.6

µs

td(L)

Pulse duration, SCL low

1.3

µs

tst1

Setup time, SDA to SCL

100

th1

Hold time, SCL to SDA

Bus free time between stop and start condition

1.3

µs

tst2

Setup time, SCL to start condition

0.6

µs

th2

Hold time, start condition to SCL

0.6

µs

tst3

Setup time, SCL to stop condition

0.6

µs

SCL

SDA

t d(H)

t d(L)

t st1

t h1

AM06113

AM06114

t st3

SCL

SDA

t st2

Start condition

Stop condition

t h2

t f
