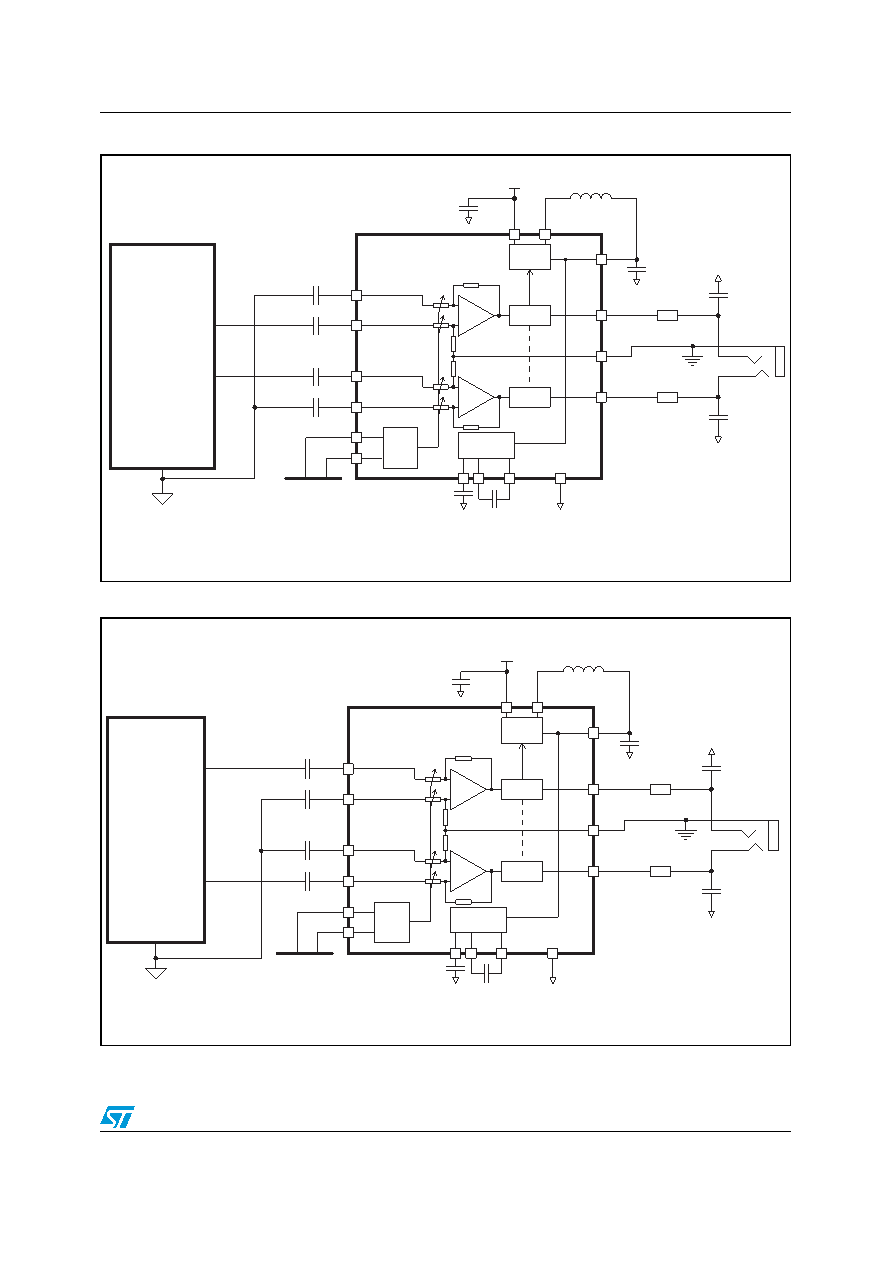

37 / 48 page  TS4621B Application information Doc ID 022194 Rev 2 37/48 Figure 79. Single-ended input configuration1 Figure 80. Single-ended input configuration 2 Rout 12 ohms min. Rout 12 ohms min. Cout 0.8 nF min. Cout 0.8 nF min. Cin 1 µF Cin 1 µF Cin 1 µF Cin 1 µF 1 2 3 J1 C12 2.2 µF Cs 2.2 µF Css 2.2 µF Ct 10 µF L1 3.3 µH Vbat I²C bus + - + - I2C Negative supply Positive supply AGnd C1 C2 SDA SCL AVdd InL- InL+ InR+ InR- VoutL VoutR CMS Level detector Level detector Sw HpVdd PVss Audio driver Left output Right output Audio driver ground AM06152 Rout 12 ohms min. Rout 12 ohms min. Cout 0.8 nF min. Cout 0.8 nF min. Cin 1 µF Cin 1 µF Cin 1 µF Cin 1 µF 1 2 3 J1 C12 2.2 µF Cs 2.2 µF Css 2.2 µF Ct 10 µF L1 3.3 µH Vbat I²C bus + - + - I2C Negative supply Positive supply AGnd C1 C2 SDA SCL AVdd InL- InL+ InR+ InR- VoutL VoutR CMS Level detector Level detector Sw HpVdd PVss Audio driver Left output Right output Audio driver ground AM06153 |
|
