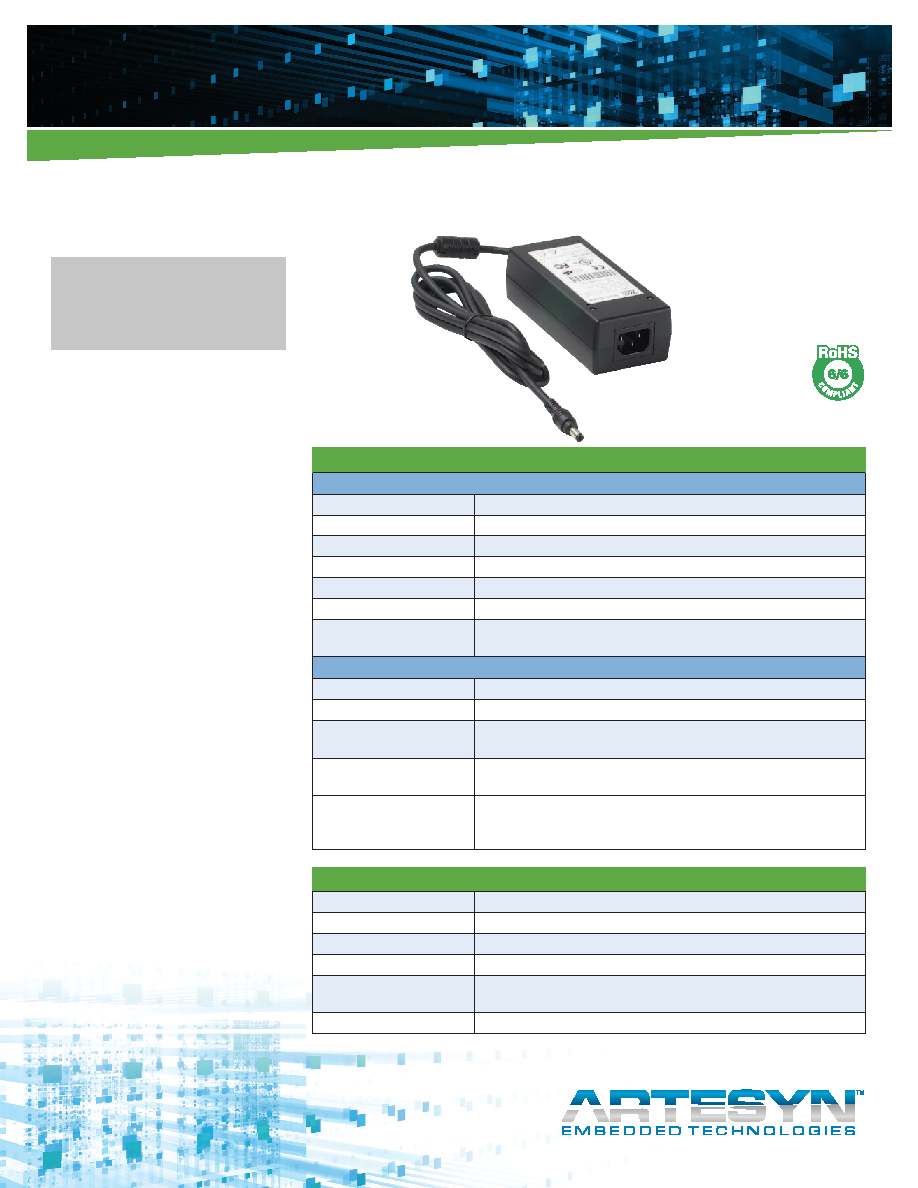

POWER

DPS50

60 Watts

Total Power: 30 - 60 Watts

Input Voltage: 90 - 264 Vac

127 - 300 Vdc

# of Outputs: Single

Special FeatureS

ƒ

CE Mark EMC & LVD (except DPS52)

ƒ

Universal AC input

ƒ

Fully regulated output

ƒ

Overload and short circuit protection

ƒ

Internal remote sense

to the output plug

ƒ

Constant voltage

ƒ

Level V efficiency (except DPS52)

ƒ

High MTBF

ƒ

IEC320 AC receptacle, 3 pin (type C14)

ƒ

Built in EMI filter (CISPR 22 Class B)

ƒ

LED power good indicator

ƒ

Input power < 74 watts

ƒ

Complies with EN61000-3-2

ƒ

Meets Energy Star

SaFety

ƒ

UL

UL 60950-1

ƒ

CSA

CSA-C22.2 no.60950-1

ƒ

VDE

EN60950-1

ƒ

CE

EMC, LVD & ErP 2011

(except DPS52)

ƒ

CB

Certificate and report

ƒ

PSE

Denan 06-03051012

Electrical Specifications

Input

Input range

90 - 264 Vac (wide range)

Frequency

127 - 300 Vdc

Inrush current

47-440 Hz

Input current

< 60 A @ 230 Vac, cold start @ 25 °C

Efficiency

< 2.0 A rms @ 115 Vac; < 1 A @ 230 Vac

EMI/RFI

80% @ full load typical, @115 Vac

Safety ground leakage current FCC Part 15, Subpart B Class B & EN55022 (CISPR 22) Class B

0.5 mA @ 50/60 Hz, 264 Vac input

Output

Maximum Power (Po)

60 W (DPS52, 30 W)

Hold-up time

10ms. typical at full load @ 115 Vac

Overvoltage protection

20% - 45% above nominal output maximum

Latching type, recycle AC to reset.

Overcurrent protection

Output short circuit protection auto recover

Overload protected @ 120 - 150% above maximum rating

Cable/connector

DC cable with 2.5 mm center plug

DC plug center +v

DC plug outer -v

Environmental Specifications

Operating temperature:

0° to +40 °C ambient. -20 °C start up

Storage temperature:

-40 °C to +85 °C

Electromagnetic susceptibility: Designed to meet EN61000-4, -2, -3, -4, -5, -6, -8, -11, level 3

Humidity:

Operating; non-condensing 5% to 90% RH

Vibration:

Three orthogonal axes, 3 sweeps per axe at 1 oct/min. 2G peak 8 Hz to

500 Hz, operational

MTBF demonstrated:

> 550,000 hours at full load and 25 °C ambient conditions

Data Sheet
