Ordering Information

Model

Number

Maximum

Power

Output

Voltage

Maximum

Load

Ripple

DPS52*

30 W

5 V

6 A

6.5 A

± 2%

50 mV

DPS53

60 W

12 V

5 A

5.4 A

± 2%

120 mV

DPS54

60 W

15 V

4 A

4.3 A

± 2%

150 mV

DPS55

60 W

24 V

2.5 A

2.7 A

± 2%

240 mV

DPS58

60 W

48 V

1.25 A

1.35 A

± 2%

480 mV

1. Peak current lasting < 15 seconds with a maximum 10% duty cycle.

2. At 25 ºC including initial tolerance, line voltage, load currents and output voltages adjusted to factory settings.

3. Peak-to-peak with 20 MHz bandwidth and 10 μF (tantalum capacitor) in parallel with a 0.1 μF capacitor at rated line voltage and load ranges.

* No CE approval under new EUP directive

Notes:

1. Specifications subject to change without notice.

2. All dimensions in inches (mm), tolerance is ± 0.02” (± 0.5 mm)

3. Warranty: 2 year

4. Weight: 1.06 lb./.48 kg

5. AC input power cord sold separately.

6. Specifications are for convection rating at factory settings at 115 Vac input, 25 °C unless otherwise stated

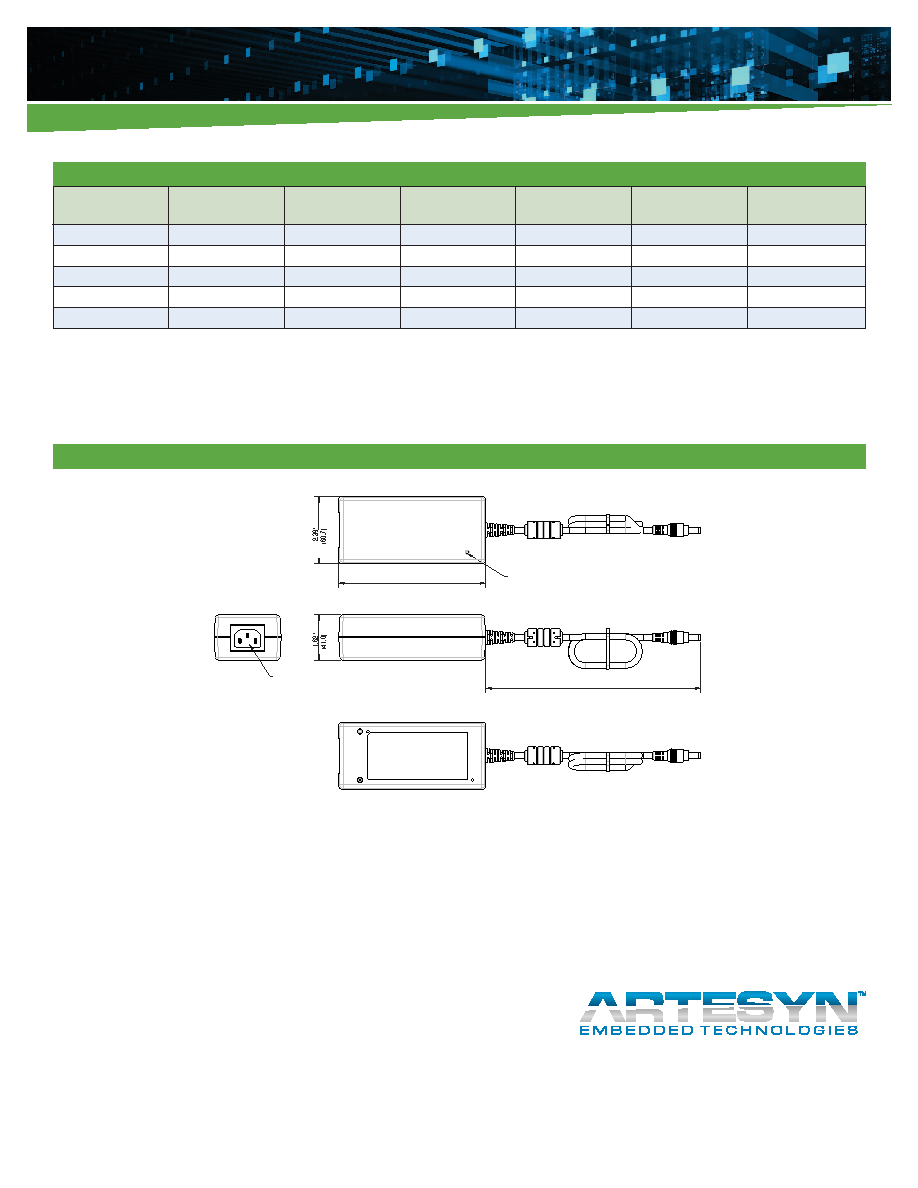

Mechanical Drawing

5.24"

(133.0)

78.7"

(2000±15)

MODELLABEL

DC OUTPUTCABLE

INDICATOR LED

AC INLET
