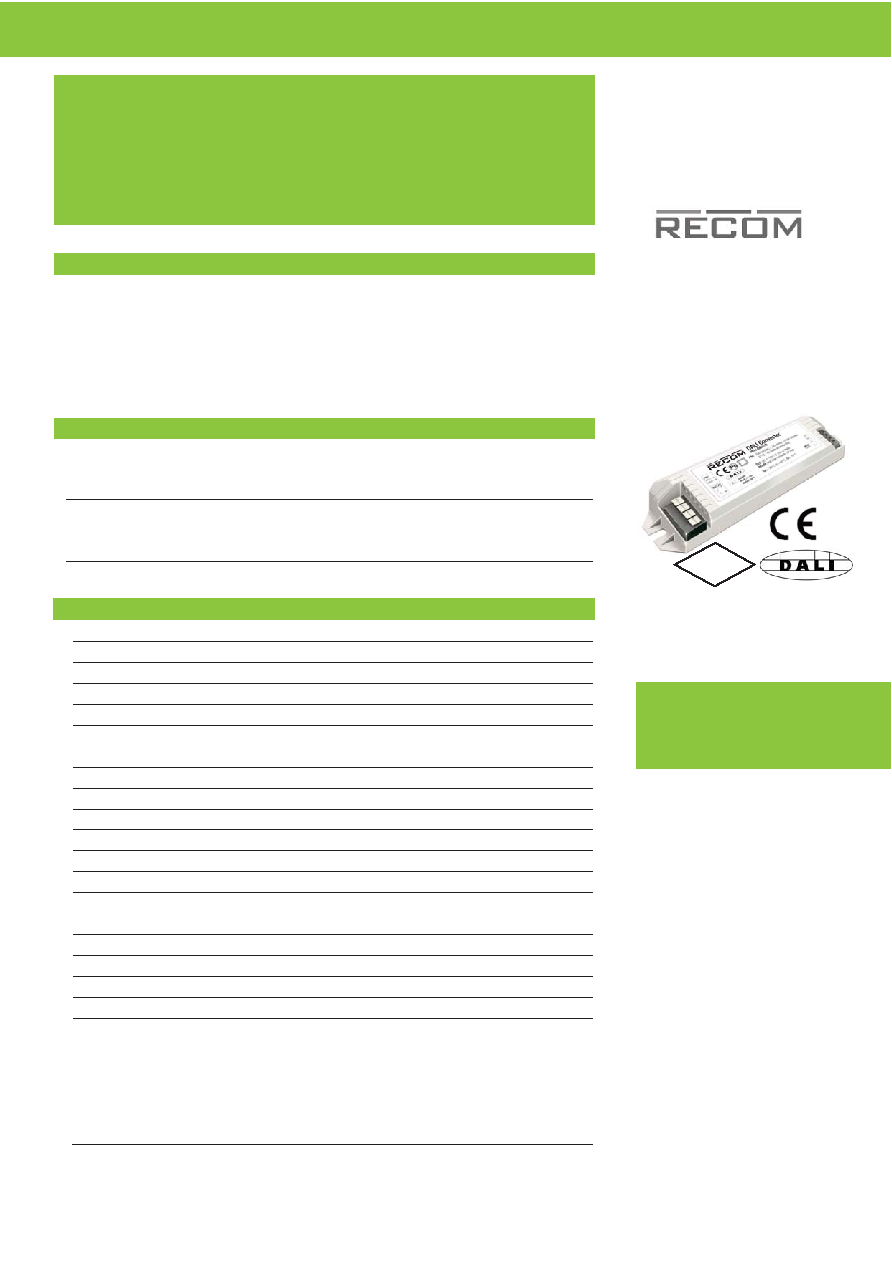

RELI-DA01/R

LIGHTLINE

DALI-Converter AC/DC

with 5 year Warranty

1.6 Watt

DALI-

Converter

Selection Guide

Input Voltage Range

90-290VAC, 50/60Hz

Power Consumption

1.6W typ. / 3W max.

DALI Bus Current Consumption

2mA max.

Suitable Electric Wire

22 AWG - 16 AWG

PWM Frequency

500Hz typ.

PWM High Level Voltage

9.5VDC min. / 10VDC typ. / 10.5VDC max.

PWM Low Level Voltage

0VDC typ.

PWM Output Current Sourcing (mA)

-60mA min. / 60mA max.

DC 0/1-10V Output Accuracy

±3%

DC Output Current Sourcing (mA)

-5mA min. / 60mA max.

DALI Standard

IEC62386 Part-102 & Part-206

Short Circuit Protection

(Dimming Output)

cont., current limited to 240mA

Over Voltage Protection

(DALI connector)

24V Zener Diode clamp

Operating Temperature Range

Ambient Temperature

-20 to +40°C

(free air convenction)

Case Temperature

46°C

Relay Switch

1 Channel, 2A cont. / 70A inrush handling

IP Rating

IP20

Dimensions

150 x 40 x 28mm

Weight

100g ±10%

Safety Standards (100-240VAC)

Report: P201311017

EN61347-1, 2nd Edition

EN61347-2-11, 1st Edition

EMC Emmission

Report: HA140050

IEC61000-3-2, 3

EN55015

EMC Immunity

IEC61000-4-2,3,4,5,6, 8, 11; Class A

EN61547

MTBF (+25°C)

using MIL-HDBK 217F

200 x 10³ hours min.

Specifications (measured at TA = 25°C and nominal input voltage)

(IEC62386 Part 102 & Part 206)

Completely (Zero Standby Current)

Features

DALI

Converter

Part

Input

Power

DALI Bus

DALI

Dimming

Number

Voltage

Consumption

Power Consumption

Standard

Output

(VAC)

(W)

(mA)

IEC62386

RELI-DA01/R

90-290

1.6 typ.

2 max.

Part-102

DC 0-10V

Part-206

DC 1-10V

Note1: PWM output is not included in the IEC62386 standard

IEC 62386-102 Compliant

IEC 62386-206 Compliant

EN55015 Certified

EN61347 Certified

EN61547 Certified

Description

The RELI-DA01/R is a DALI to analog control signal interface which is compliant with the DALI IEC62386

is compatible with all RECOM dimmable LED drivers as well as other manufacturer’s products. The output can

control several LED drivers, allowing the lighting in a whole room or office to be dimmed with just one DALI

address. A built-in relay can be used to switch off the LED drivers under software control to give zero no-load

consumption. The interface is universal AC powered (110VAC, 230VAC or 277VAC).

Refer to Application Notes
