CP10.241-R1, CP10.241-R2,

CP10.241-R3,CP10.242-R2

CP-Series

Feb. 2018 / CP10.241-R2 Rev0.3-EN - All values are typical figures specified at 230Vac, 50Hz input voltage, 24V, 10A output

load, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.

www.pulspower.com Phone +49 89 9278 0

Germany

24/31

P R E L I M I N A R Y

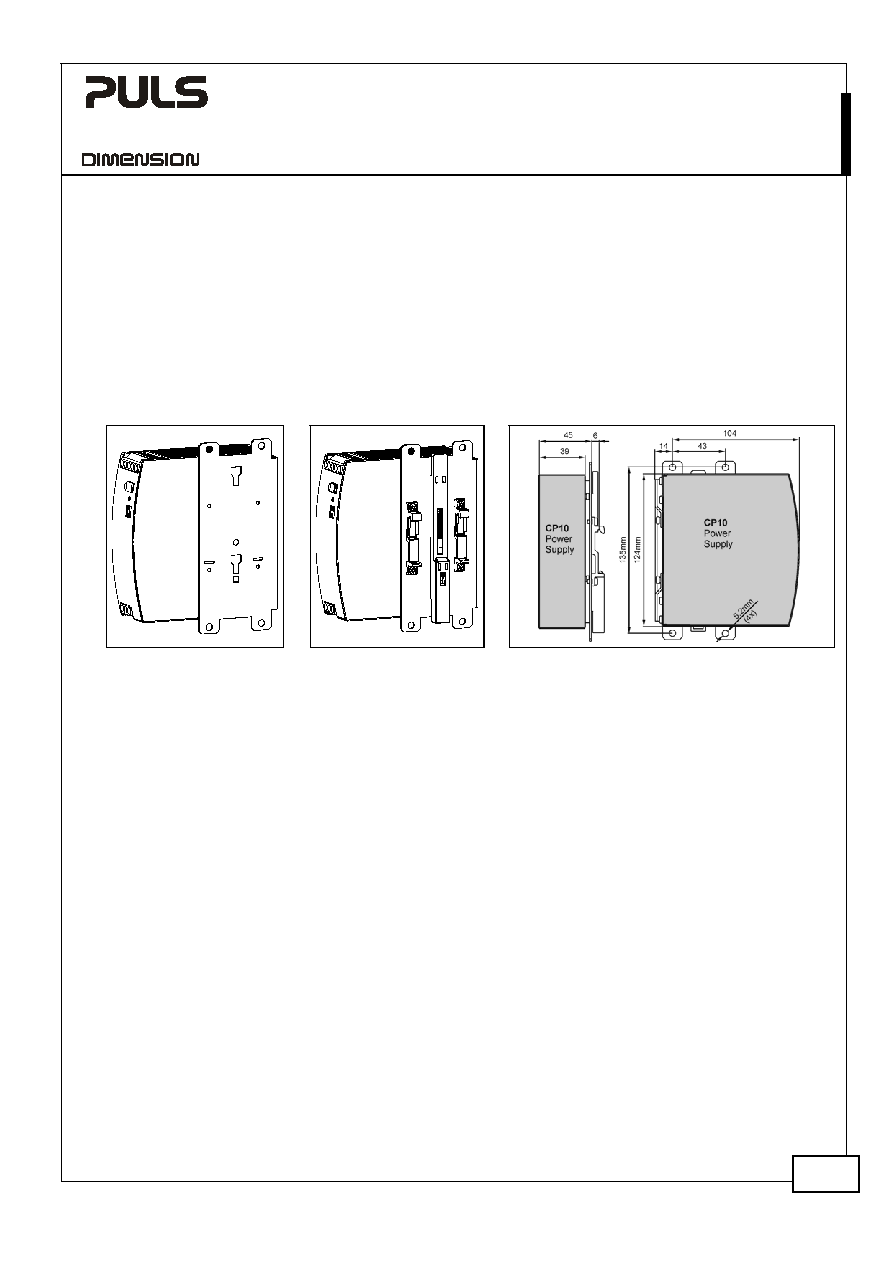

This bracket is used to mount the power supply sideways with or without utilizing a DIN-Rail. The two aluminum

brackets and the black plastic slider of the unit have to be detached, so that the steel brackets can be mounted.

For sideway DIN-rail mounting, the removed aluminum brackets and the black plastic slider need to be mounted on

the steel bracket.

Fig. 23-7

Side mounting without DIN-

rail brackets

(Picture shows the CP10.241-R3)

Fig. 23-8

Side mounting with DIN-rail

brackets

(Picture shows the CP10.241-R3)

Fig. 23-9

Mounting Dimensions

Side mounting bracket
