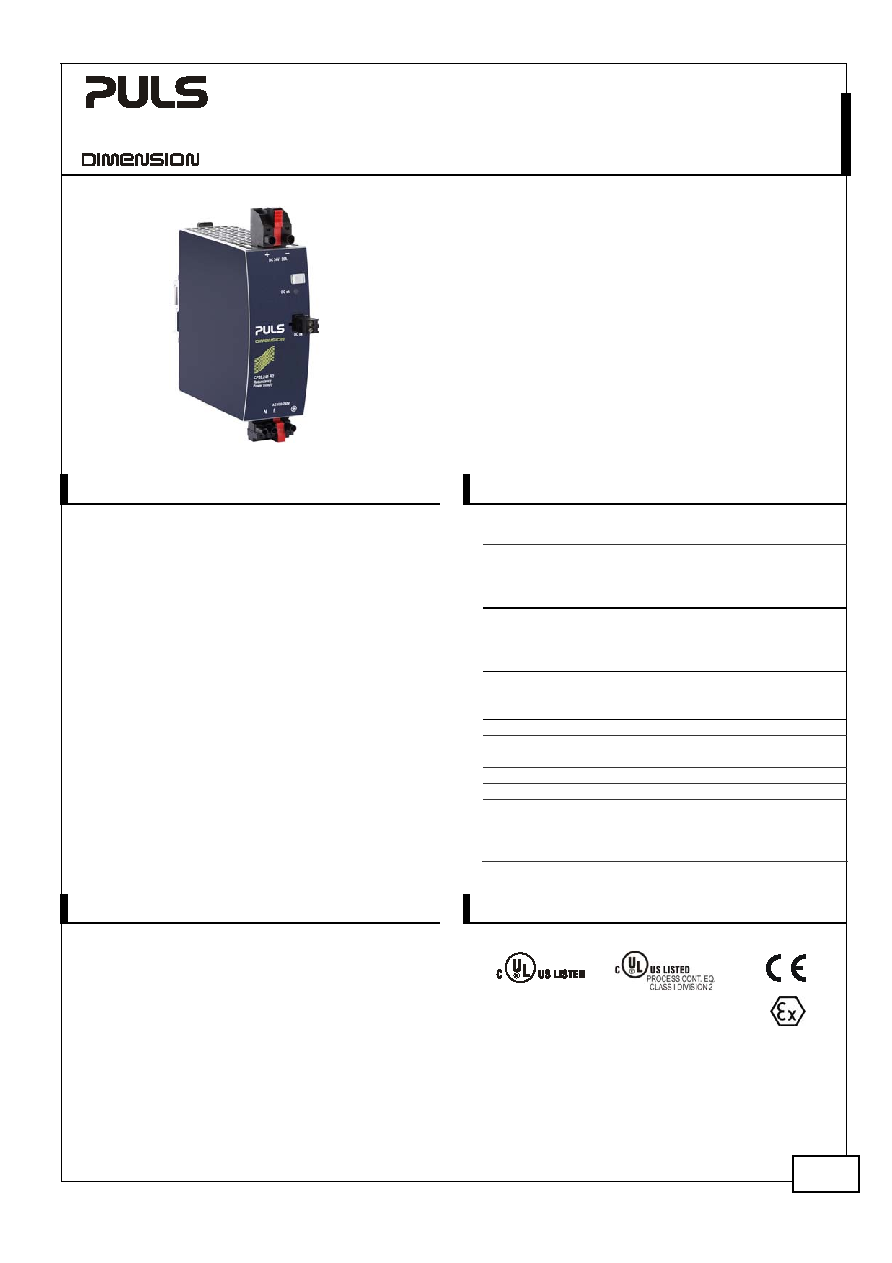

CP20.241-R1, CP20.241-R2, CP20.241-R3,

CP20.242-R2, CP20.242-R2-C1

CP-Series

Jan. 2018 / Rev. 0.2 DS-CP20.241-R2-EN - All parameters are typical values specified at 230Vac, 50Hz input voltage, 24V, 20A output

load, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.

www.pulspower.com Phone +49 89 9278 0

Germany

1/33

P R E L I M I N A R Y

AC 100-240V Wide-range Input

Width only 48mm

Built-in Decoupling Mosfet for 1+1 and n+1 Redundancy

Efficiency up to 95.2%

20% Output Power Reserves

Easy Fuse Breaking – 3 times nominal current for 12ms

Active Power Factor Correction (PFC)

Minimal Inrush Current Surge

Full Power Between -40°C and +60°C

DC-OK Relay Contact

Current Sharing Feature Included

3 Year Warranty

The Dimension CP-Series are cost optimized power

supplies without compromising quality, reliability and

performance. The most outstanding features of the

CP20.241–R1/-R2/-R3 units are the high efficiency,

electronic inrush current limitation, active PFC, wide

operational temperature range and the extraordinary

small size. The units include a decoupling MOSFET for

building 1+1 or n+1 redundant power supply systems.

These redundancy power supplies come with three

connection terminal options; screw terminals, spring-

clamp terminals or plug connector terminals which

allows replacement on an active application.

CP20.242-R2 version feature an enhanced DC input

voltage range and the CP20.242-R2-C1 is additionally

equipped with conformal coated pc-boards.

With high immunity to transients and power surges, low

electromagnetic emission, a DC-OK signal contact for

remote monitoring, and a large international approval

package, makes this unit suitable for nearly every

application.

Output voltage

DC 24V

Nominal

Adjustment range

-

Output current

24A

Below +45°C ambient

20A

At +60°C ambient

15A

At +70°C ambient

Derate linearely between +45°C and +70°C

AC Input voltage

AC 100-240V

-15%/+10%

Mains frequency

50-60Hz

±6%

AC Input current

4.28 / 2.25A

At 120 / 230Vac

Power factor

0.99 / 0.98

At 120 / 230Vac

Input voltage DC

Input current DC

4.64A / 1.66A

At 110 / 300Vdc

AC Inrush current

10 / 4.5Apk

At 120 / 230Vac

Efficiency

93.8 / 95.2%

At 120 / 230Vac

Losses

31.7 / 24.2W

At 120 / 230Vac

Hold-up time

32 / 32ms

At 120 / 230Vac

Temperature range

-40°C to +70°C

Size (w x h x d)

48x124x127mm

Without DIN-rail and

plug connectors

Weight

830g / 1.83lb

CP20.241-R1/R3

850g / 1.87lb

CP20.24x-R2

Power Supplies

CP20.241-R1

With quick-connect spring-clamp

terminals

CP20.241-R2

With hot swappable plug

connectors (preferred item)

CP20.241-R3

With screw terminals

CP20.242-R2

Enhanced DC-Input

CP20.242-R2-C1 With conformal coated pc boards

Mechanical Accessory

ZM5.WALL

Wall mount bracket

For details or a complete approval list see section 20.

IND. CONT. EQ.

IECEx

ATEX
