CP20.241-R1, CP20.241-R2, CP20.241-R3,

CP20.242-R2, CP20.242-R2-C1

CP-Series

Jan. 2018 / Rev. 0.2 DS-CP20.241-R2-EN - All parameters are typical values specified at 230Vac, 50Hz input voltage, 24V, 20A output

load, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.

www.pulspower.com Phone +49 89 9278 0

Germany

24/33

P R E L I M I N A R Y

Width

48mm 1.89’’

Height

124mm 4.88’’ (without plug-connectors)

Depth

127mm 5.0’’ (without plug-connector)

The DIN-rail height must be added to the unit depth to calculate the total required

installation depth.

Weight

830g / 1.83lb for CP20.241-R1 and CP20.241-R3

850g / 1.87lb for CP20.241-R2

DIN-Rail

Use 35mm DIN-rails according to EN 60715 or EN 50022 with a height of 7.5 or 15mm.

Housing material

Body: Aluminium alloy

Cover: zinc-plated steel

Installation clearances

See chapter 2

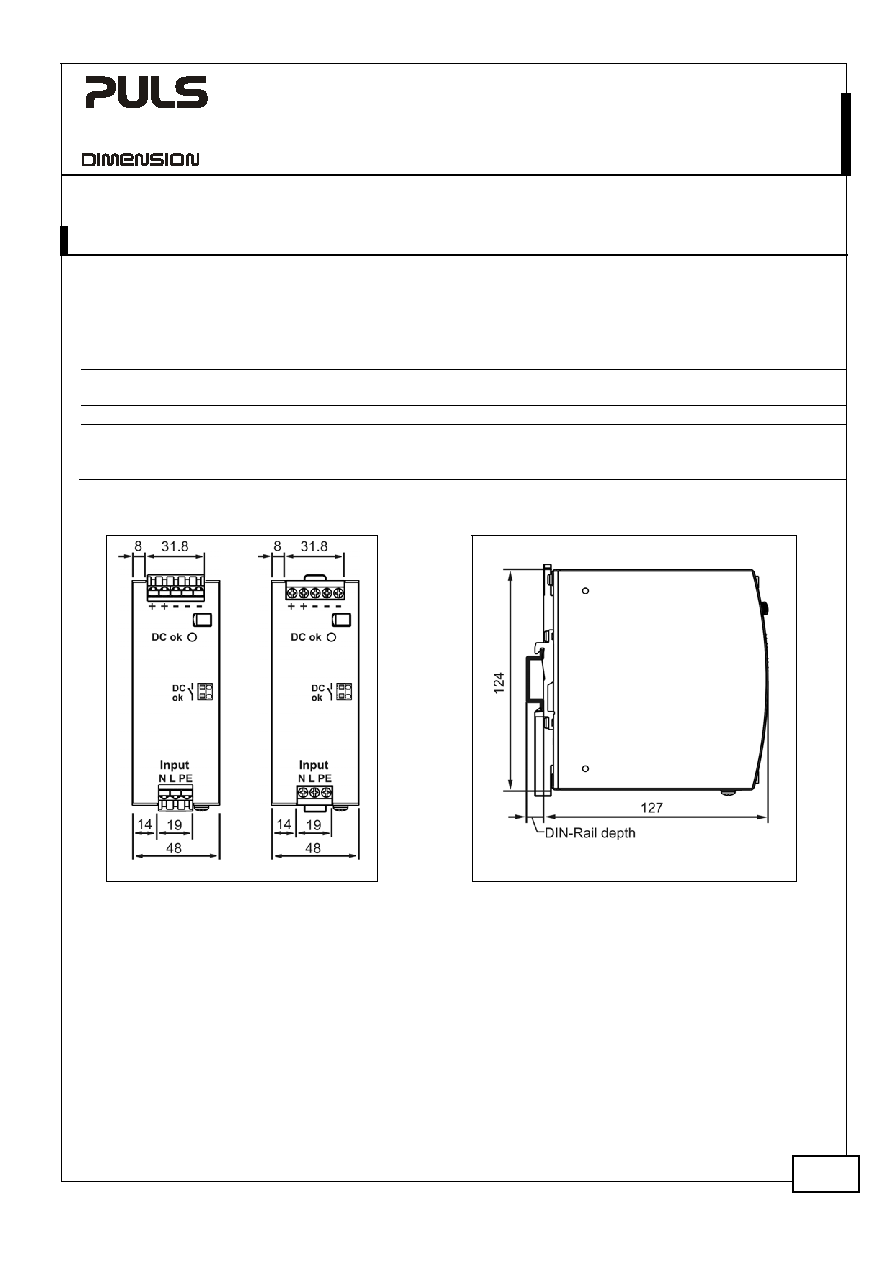

Fig. 22-1 Front view

CP20.241-R1

CP20.241-R3

Fig. 22-2 Side view CP20.241-R1 and CP20.241-R3

All dimensions in mm

All dimensions in mm
