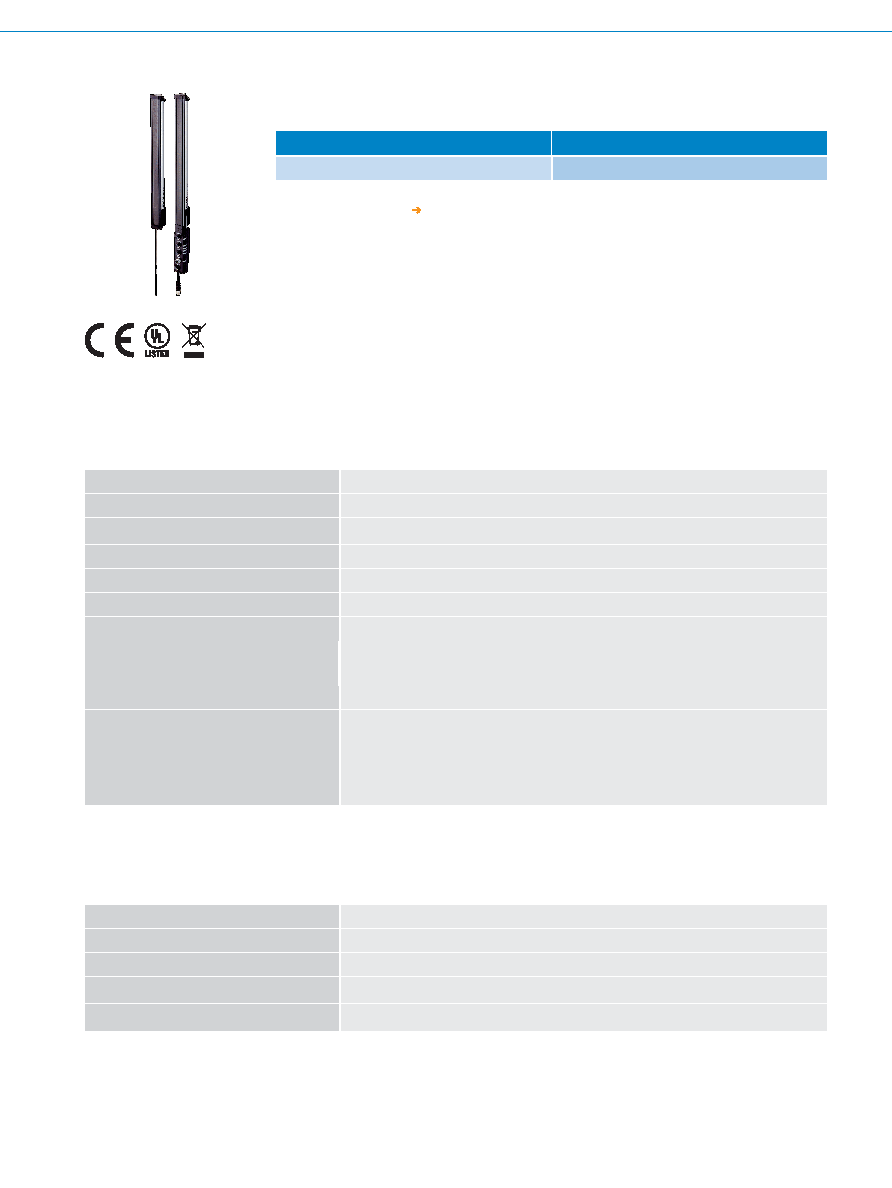

MLG20N-2080P10501 | MLG-2 ProNet

MEASURING AUTOMATION LIGHT GRIDS

Ordering information

Type

Part no.

MLG20N-2080P10501

1217841

Other models and accessories

www.sick.com/MLG-2_ProNet

Detailed technical data

Features

Version

ProNet

Technology

Sender/receiver

Minimum detectable object (MDO)

20 mm, 24 mm 1) 2) 3)

Beam separation

20 mm

Number of beams

105

Detection height

2,080 mm

Software features

Q1 Presence detection

Address 126 (SAA)

PROFIBUS DP DPV1

Included with delivery

1 × sender

1 × receiver

4/6 x QuickFix brackets (6 x QuickFix brackets for monitoring heights above 2 m)

1 x mounting bracket for the fieldbus module

1 x Fieldbus module

1 × Quick Start Guide

1) MDO min. detectable object at high measurement accuracy.

2) MDO min. detectable object for standard measurement accuracy.

3) Depending on beam separation without cross beam setting.

Mechanics/electronics

Light source

LED, Infrared light

Housing design (light emission)

Robust

Wave length

850 nm

Supply voltage Vs

DC 18 V ... 30 V 1)

Power consumption sender

60.25 mA 2)

1) Without load.

2) , Without load with 24 V.

3) Operating in outdoor condition only with a external protection housing.

AUTOMATION LIGHT GRIDS | SICK

Online data sheet | 2019-07-19 17:41:20

Subject to change without notice
