CY8CKIT-059 PSoC® 5LP Prototyping Kit Guide, Doc. #: 001-96498 Rev. *G
20
4.
Hardware
4.1
Board Details
The PSoC 5LP Prototyping Kit consists of the following blocks:
■
PSoC 5LP device
■
PSoC 5LP header ports J1 and J2
■
Micro-USB connector, J6
■
PSoC 5LP program/debug JTAG header, J5
■
KitProg (PSoC 5LP) device
■
KitProg ports J8 and J9 (GPIO)
■
SWD connection J3 and J7
■
PCB USB connector
■
One amber LED (Power)
■
One green LED (Status)
■
One blue LED (User)
■
User push button and reset button
■
External reference capacitors (ADC Bypass)
■
CapSense capacitor (CMOD)
■
Programming connector, J3
■
Perforated ‘snappable’ board design

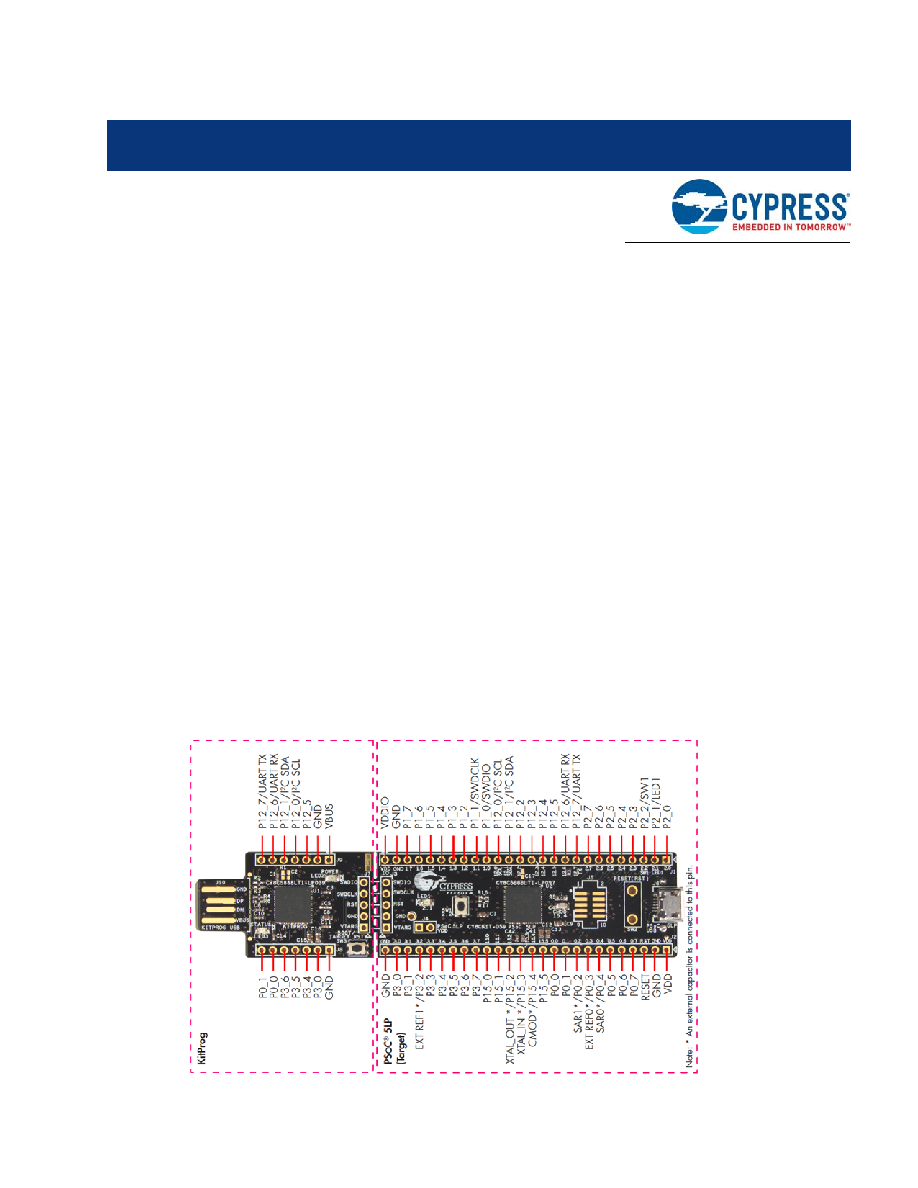

Figure 4-1. PSoC 5LP Prototyping Kit Pin Details
