Ver.1.06

CPS-PCS341EC-DS1-1201

1

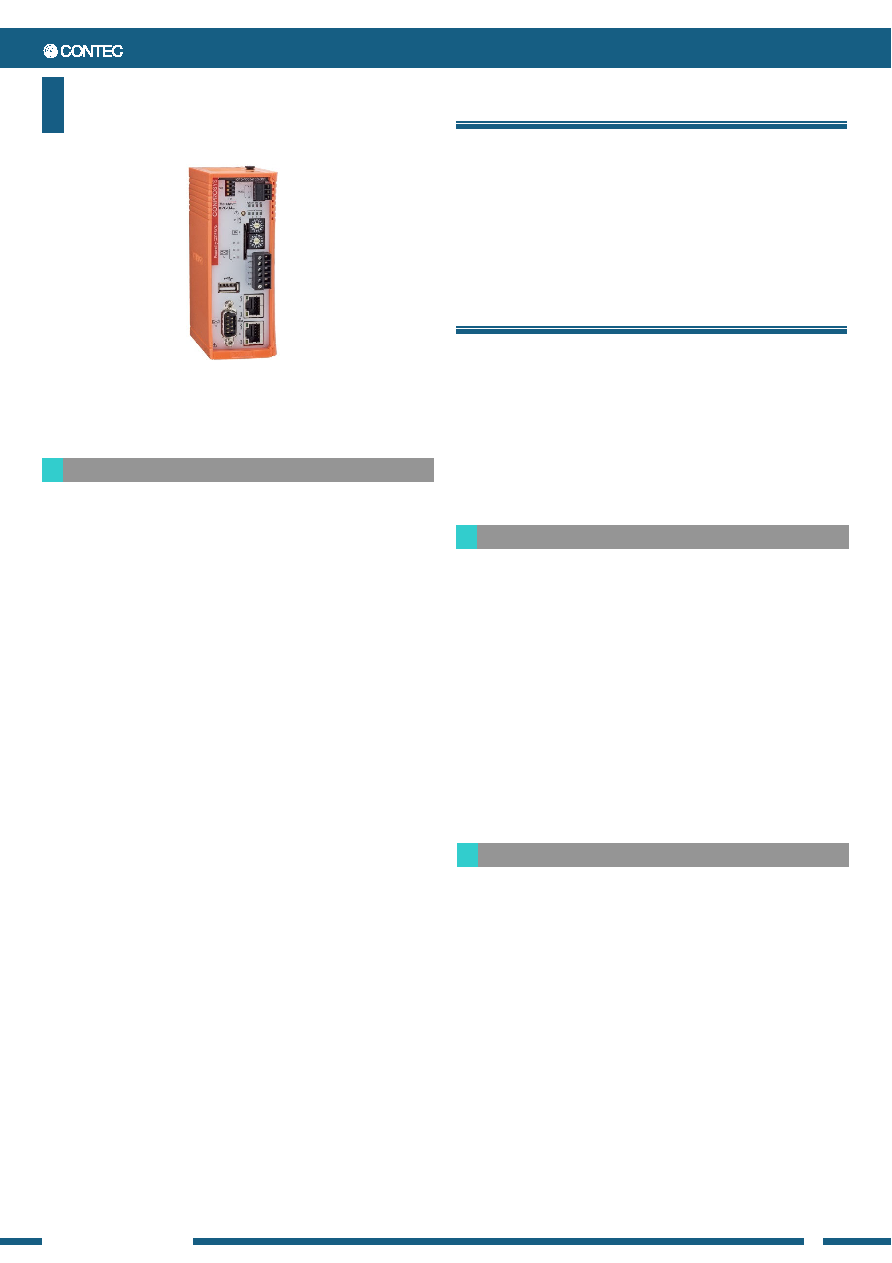

CONPROSYS Series

CODESYS EtherCAT Master

CPS-PCS341EC-DS1-1201

* Specifications, color and design of the products are subject to change

without notice.

GmbH.

This product is an EtherCAT Master controller with isolated digital input

and output (Input: 4ch, Output: 4ch), RS-232C, and LAN interface.

As you desire, add the configurable type modules of our CONPROSYS

series.

This product contains the CODESYS* Soft PLC. You can create your own

PLC program and run with the CODESYS software.

*CODESYS is a device-independent PLC-programming system that is

complied with the IEC 61131-3 standard and supports all standard

programming languages such as ST or LD.

* The contents in this document are subject to change without notice.

* Visit the CONTEC website to check the latest details in the document.

* The information in the data sheets is as of November, 2018.

Hardware Features

Add configurable modules

This product allows you to install modules from a wide variety of types to

suit the needs of the user.

* Up to 16 modules can be set and the total current consumption should

be less than 3.3A.

No base board required

As the product requires no base board for installation, it helps add

modules easily and smoothly.

Installed modules can be removed from any set positions on DIN rail.

Compact design

Compact design, 44.7(W)×94.7(D)×124.8 (H), features flexibility in

installation.

Adaptable to a temperature range between -20 and +60°C

The product is capable of operating in the temperature between -20 and

+ 60°C. It can be installed in the various environments.

A powerful running platform without fan

The product contains the ARM® Cortex®-A8 processor (600MHz) and

the DDR3 512MB system memory.

Decrease damages by bus isolation and surge protection. (digital

input/output)

Electrical isolation between the digital input/output and CPU can block

electrical noise flow. Moreover, the surge protection elements are

adopted

Opto-coupler Isolation input and semiconductor relay output

The product has the switchable four channels of opto-coupler isolation

input (compatible with current sink output) and semiconductor relay

output. It is usable for external switch inputting or LED lighting.

Max. 115,200bps RS-232C serial communication

The Product has one RS-232C-standard serial port. Baud rates from 300

to 115,200 bps can be set.

Installation easy with two pieces of terminal support and DIN rail

You can install and remove a terminal connector without a screwdriver so

that it can shorten the time of the replacement. As the product can be

mounted on a DIN rail, removing and replacing are easy as well.

Equipped with LED for an operation check

The product has LED for an operation check, which helps you visually

confirm the communication status of each interface.

No electrolytic capacitor battery

No electrolytic capacitor is used. The Contec is creating the product with

a longer life.

Software Features

Feature the CODESYS SoftPLC

CODESYS is a device-independent-PLC-programming system that is

compliant with the IEC 61131-3 standard and supports all standard

programming languages such as ST or LD.

Harmonize with EtherCAT Master

EtherCAT is a strong, efficient real-time Ethernet field bus system with an

open protocol. Various EtherCAT slave devices from differing makers can

be performed together with EtherCAT Master of this product.

Together with OPC UA Server

OPC UA (Unified Architecture) is an advanced model of OPC

specifications, which presents refined capability of communicating with

higher-order system in addition to transferring and receiving data of

devices or plants. OPC UA is a platform independent standard based on

TCP. The product can be operated with HMI and SCADA software that

support OPC UA clients from various makers.

Packing List

Product [CPS-PCS341EC-DS1-1201] …1

End Cover…1(attached to the product)

Product Guide … 1

Warranty Certificate …1

Serial Number Label …1

3-pin Connector…1

6-pin Connector…1

CODESYS Runtime License…1 (attached to the backside of the product)

※ UsethesuppliedplasticDINrailwhenconnectingthisproductanda moduleonadesktopfor system

development or validation. If you use the supplied plasticDIN rail in the field, it cannot be covered by warranty.

Therefore, when you setthe product and module in the field, use the commercially available DIN rail.
